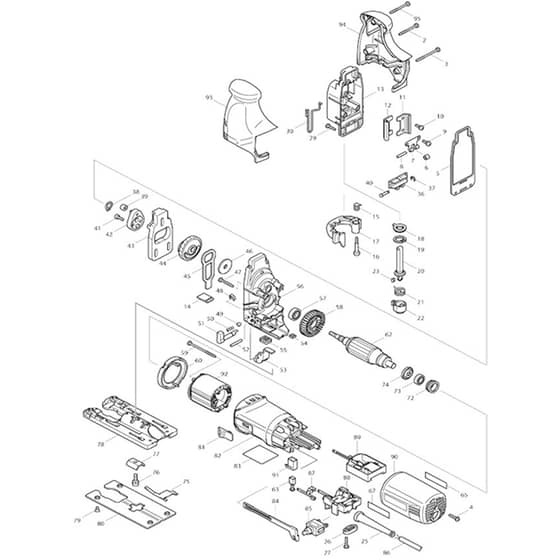

Makita 4341T - Jig Saw - Power Tool Diagram

Description

Model No. 4341T

Jig Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK266048-4 Available to backorder	Tapping Screw 4x40	£0.58 £0.48
3	MK266091-3 Available to backorder	Tapping Screw 4x50	£0.58 £0.48
3	MK266467-4 Available to backorder	Tapping Screw 4x50 (Alt.)	£0.48 £0.40
4	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
5	MK442138-9 Available to backorder	Packing	£0.58 £0.48
6	MK214031-5 Available to backorder	Plane Bearing 4	£0.74 £0.62
7	MK232207-2 Available to backorder	Leaf Spring	£0.58 £0.48
8	MK256117-9 Available to backorder	Pin 4	£0.58 £0.48
9	MK911111-5 Available to backorder	Pan Head Screw M4x10 With	£0.48 £0.40
11	MK345240-6 Available to backorder	Linear Guide	£2.32 £1.93
13	MK153338-3 Available to backorder	Gear Housing Cover Comple	£40.16 £33.47
13	MK421815-6 Available to backorder	Dust Seal 8 (C30)	£1.16 £0.97
13	MK253313-0 Available to backorder	Thin Washer 14 (C10)	£0.58 £0.48
13	MK257250-0 Available to backorder	Ring 20 (C20)	£4.20 £3.50
14	MK417839-8 Available to backorder	Seal Plate	£0.48 £0.40
15	MK231659-4 Available to backorder	Torsion Spring 6	£0.58 £0.48
16	MK265026-1 Available to backorder	+ Pan Head Screw M4	£1.74 £1.45
17	MK417842-9 Available to backorder	Tool Opener	£1.60 £1.33
18	MK421817-2 Available to backorder	Dust Cover	£0.58 £0.48
19	MK962068-3 Available to backorder	Retaining Ring R-18	£0.58 £0.48
20	MK135060-4 Available to backorder	Rod Ass'y < (INC. 18 19 21-23)	£47.38 £39.48
20	MK165326-8 Available to backorder	Rod	£23.68 £19.73
21	MK231660-9 Available to backorder	Torsion Spring 15	£0.58 £0.48
22	MK310136-0 Available to backorder	Blade Holder	£11.72 £9.77
23	MK310135-2 Available to backorder	Push Pin	£4.34 £3.62
25	MK682559-5 Available to backorder	Cord Guard 8	£0.86 £0.72
26	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
29	MK266034-5 Available to backorder	Tapping Screw Ct 4x16	£0.48 £0.40
30	MK324233-6 Available to backorder	Safety Wire	£0.74 £0.62
36	MK310134-4 Available to backorder	Slider	£15.76 £13.13
37	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
38	MK961004-6 Available to backorder	Retaining Ring (Ext) S-8	£0.48 £0.40
39	MK212092-9 Available to backorder	Needle Bearing 407 (Alt.)	£1.44 £1.20
40	MK268090-1 Available to backorder	Pin 4	£1.74 £1.45
41	MK265353-6 Available to backorder	Hex. Socket Head Bolt M4x12	£0.74 £0.62
42	MK153336-7 Available to backorder	Crank Complete	£4.48 £3.73
43	MK313108-4 Available to backorder	Balance Plate	£5.48 £4.57
44	MK212043-2 Available to backorder	Needle Bearing 810 (C10)	£1.74 £1.45
44	MK153335-9 Available to backorder	Gear Complete	£21.96 £18.30
45	MK345235-9 Available to backorder	Push Plate	£2.02 £1.68
46	MK253877-4 Available to backorder	Flat Washer 8	£0.74 £0.62
47	MK266050-7 Available to backorder	Tapping Screw 4x30	£0.58 £0.48
48	MK961018-5 Available to backorder	Stop Ring E-5	£0.48 £0.40
49	MK286032-3 Available to backorder	Cap 5	£0.74 £0.62
50	MK233139-6 Available to backorder	Compression Spring 3	£0.74 £0.62
51	MK272280-0 Available to backorder	Lever 17 <	£1.74 £1.45
52	MK268063-4 Available to backorder	Pin 4	£0.48 £0.40
53	MK153334-1 Available to backorder	Retainer Complete	£12.86 £10.72
54	MK252171-1 Available to backorder	Square Nut M5-8	£0.48 £0.40
55	MK421816-4 Available to backorder	Dust Seal	£0.58 £0.48
56	MK153337-5 Available to backorder	Gear Housing Complete	£44.20 £36.83
57	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
58	MK241881-5 Available to backorder	Fan 52	£8.08 £6.73
59	MK266052-3 Available to backorder	Tapping Screw 4x60	£0.86 £0.72
60	MK417838-0 Available to backorder	Baffle Plate	£0.58 £0.48
63	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£4.92 £4.10
63	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.68 £4.73
65	MK819063-3 Available to backorder	Makita Label	£1.16 £0.97
72	MK421494-0 Available to backorder	Rubber Ring 19	£5.64 £4.70
73	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
74	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
75	MK232208-0 Available to backorder	Leaf Spring	£1.16 £0.97
76	MK922226-3 Available to backorder	Hex. Socket Head Bolt M5x18	£0.74 £0.62
77	MK345237-5 Available to backorder	Crank Plate	£0.58 £0.48
78	MK317565-8 Available to backorder	Base	£21.96 £18.30
79	MK912107-9 In stock	Countersunk Head Screw M4x8	£0.48 £0.40
80	MK345238-3 Available to backorder	Base Plate	£2.32 £1.93
81	MK417840-3 Available to backorder	Switch Lever	£1.16 £0.97
82	MK417758-8 Available to backorder	Motor Housing	£5.20 £4.33
84	MK417841-1 Available to backorder	Switch Rod	£0.74 £0.62
85	MK651069-3 Available to backorder	Switch St115A-Tb-F2 (Alt.)	£2.46 £2.05
85	MK651418-4 Available to backorder	Switch St115A-40	£9.12 £7.60
85	MK651428-1 Available to backorder	Switch Stl115Adf-Cd (Alt.)	£5.94 £4.95
87	MK654223-8 Available to backorder	Terminal F	£0.86 £0.72
91	MK643975-6 Available to backorder	Brush Holder	£0.74 £0.62
93	MK183425-4 Available to backorder	Head Cover Set (INC. 94)	£4.92 £4.10
901	MK192516-0 Available to backorder	Guide Rail (F01)	£101.86 £84.88
901	MK415524-7 Available to backorder	Anti-Splintering Device (A01)	£0.98 £0.82
902	MK192557-6 Available to backorder	Anti-Splitering Device (F02)	£10.32 £8.60
902	MK417852-6 Available to backorder	Cover Plate (A02)	£1.94 £1.62
903	MKA-85737 Available to backorder	Jigsaw Blade No.B22 < (A03-1)	£6.76 £5.63
903	MK792522-1 Available to backorder	Jig Saw Blade B-22 (A03)	£6.30 £5.25
903	MK199140-0 Available to backorder	Guide Rail 1000 Set (F03)	£53.02 £44.18
904	MK271601-3 Available to backorder	Knob 20 (C20)	£0.58 £0.48
904	MKA-85628 Available to backorder	Jigsaw Blade No.B10 < (A04-1)	£6.88 £5.73
904	MK323802-0 Available to backorder	Guide Pin (C30)	£1.34 £1.12
904	MK165217-3 Available to backorder	Guide Rule (C10)	£6.46 £5.38
904	MK193516-3 Available to backorder	Guide Rule Set (F04)	£12.80 £10.67
904	MK922207-7 Available to backorder	Hex. Socket Head Bolt M5x10 (C40)	£0.48 £0.40
905	MK193517-1 Available to backorder	Guide Rail Adapter Set (Alt.) (F05-1)	£33.74 £28.12
905	MK265785-7 Available to backorder	Thumb Screw M5x10 < (C12)	£0.86 £0.72
905	MKA-85793 Available to backorder	Jigsaw Blade No.Br13 < (A05-1)	£5.02 £4.18
906	MK199141-8 Available to backorder	Guide Rail 1500 Set (F06)	£104.38 £86.98
906	MK783202-0 Available to backorder	Hex. Wrench 4 (A06)	£1.88 £1.57
907	MK819033-2 Available to backorder	Makita Label (C20)	£0.58 £0.48
907	MK824809-4 Available to backorder	Plastic Carrying Case < (A07-2)	£30.38 £25.32
907	MK819143-5 Available to backorder	Makita Label < (C21)	£0.74 £0.62
907	MK183091-7 Available to backorder	Slide Latch Rl Set (C10)	£3.04 £2.53
907	MK194368-5 Available to backorder	Guide Rail 1400 Set (F07)	£78.76 £65.63
908	MK417853-4 Available to backorder	Dust Nozzle (A08)	£2.06 £1.72
910	MK194416-0 Available to backorder	Sheet 10000 Set (F10)	£39.90 £33.25
911	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F11)	£58.88 £49.07
