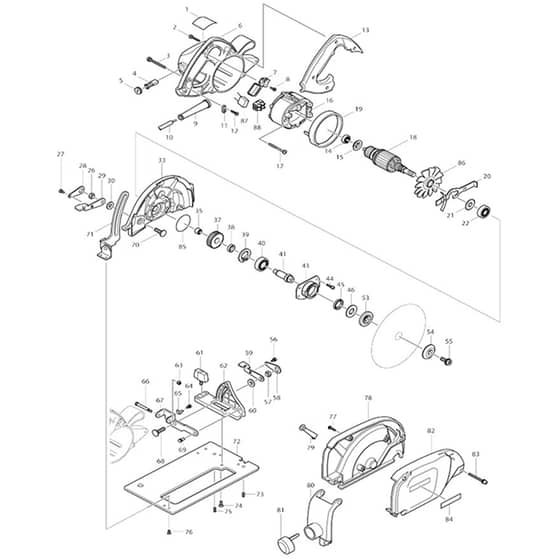

Makita 4157KB - Dustless Cutter 180mm - Power Tool Diagram

Description

Model No. 4157KB

Dustless Cutter 180mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK853464-5 Available to backorder	Name Plate 4157Kb	£1.16 £0.97
2	MK911148-2 Available to backorder	Pan Head Screw M4x25	£0.48 £0.40
3	MK911273-9 Available to backorder	Pan Head Screw M5x50	£0.70 £0.58
4	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.24 £3.53
5	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.74 £0.62
6	MK153921-6 Available to backorder	Motor Housing Complte S	£58.06 £48.38
6	MK643660-1 Available to backorder	Brush Holder 6.5-13.5 (C10)	£3.04 £2.53
7	MK651165-7 Available to backorder	Switch 8909K382	£47.38 £39.48
7	MK651194-0 Available to backorder	Switch Tg933Tl-1 S	£12.44 £10.37
8	MK266020-6 Available to backorder	Tapping Screw 4x12	£0.48 £0.40
9	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
9	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
10	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0 <	£10.52 £8.77
11	MK687031-2 Available to backorder	Strain Relief	£0.58 £0.48
11	MK687052-4 Available to backorder	Strain Relief S	£0.74 £0.62
12	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
13	MK410201-6 Available to backorder	Handle Cover	£6.94 £5.78
14	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
15	MK681625-5 Available to backorder	Insulation Washer	£0.58 £0.48
16	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
16	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
16	MK654553-7 Available to backorder	Connector 34137 (C20)	£0.48 £0.40
17	MK266046-8 Available to backorder	Tapping Screw 5x50	£0.86 £0.72
19	MK415603-1 Available to backorder	Fan Guide	£1.74 £1.45
20	MK163113-9 Available to backorder	Spindle Lock	£4.04 £3.37
21	MK213102-5 Available to backorder	Dust Seal 12	£0.74 £0.62
22	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
26	MK931402-8 Available to backorder	Hex. Nut M8	£0.58 £0.48
27	MK911106-8 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
28	MK341415-5 Available to backorder	Lock Plate	£0.58 £0.48
29	MK341416-3 Available to backorder	Lever Plate	£1.16 £0.97
30	MK267003-9 Available to backorder	Flat Washer 8	£1.44 £1.20
30	MK253766-3 Available to backorder	Flat Washer 8 <	£4.78 £3.98
33	MK153302-4 Available to backorder	Gear Housing Complete S	£76.14 £63.45
33	MK213459-4 Available to backorder	O Ring 32 (Alt.) (C10)	£2.02 £1.68
35	MK212052-1 Available to backorder	Needle Bearing 1010	£6.52 £5.43
37	MK226532-1 Available to backorder	Helical Gear 39	£8.24 £6.87
38	MK257064-7 Available to backorder	Ring 15	£0.74 £0.62
39	MK962153-2 Available to backorder	Retaining Ring R-35	£0.74 £0.62
40	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
41	MK324257-2 Available to backorder	Spindle S	£23.68 £19.73
43	MK317187-4 Available to backorder	Bearing Box	£13.28 £11.07
44	MK911126-2 Available to backorder	Pan Head Screw M4x16	£0.48 £0.40
45	MK213319-0 Available to backorder	Oil Seal 20	£5.20 £4.33
46	MK344758-4 Available to backorder	Labyrinth Ring	£0.86 £0.72
53	MK224375-5 Available to backorder	Inner Flange 40	£15.32 £12.77
54	MK224275-9 Available to backorder	Outer Flange 40	£10.26 £8.55
55	MK266283-4 Available to backorder	Hex. Socket Hex. Bolt M8x20	£1.74 £1.45
61	MK251858-2 Available to backorder	Dial Screw M6x15	£2.02 £1.68
62	MK317160-4 Available to backorder	Angular Plate	£23.68 £19.73
63	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
64	MK911108-4 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
65	MK344762-3 Available to backorder	Indication Plate	£3.34 £2.78
66	MK265075-8 Available to backorder	+ Pan Head Screw M5	£2.18 £1.82
67	MK345491-1 Available to backorder	Angular Guide S	£8.38 £6.98
67	MK344763-1 Available to backorder	Angular Guide	£4.48 £3.73
68	MK266227-4 Available to backorder	Cap Square Neck Bolt M8x28	£0.86 £0.72
69	MK256442-8 Available to backorder	Shoulder Pin 6-7	£0.74 £0.62
69	MK256480-0 Available to backorder	Shoulder Pin 6-7 (Alt.)	£0.48 £0.40
70	MK265965-5 Available to backorder	Cap Square Neck Bolt M8x24	£0.74 £0.62
71	MK163409-8 Available to backorder	Depth Guide	£10.12 £8.43
72	MK345192-1 Available to backorder	Base	£27.74 £23.12
73	MK266213-5 Available to backorder	H.S.Set Screw(Flat Point)M5x	£0.74 £0.62
73	MK266180-4 Available to backorder	+ Screw M5x12	£1.32 £1.10
74	MK912212-2 Available to backorder	Countersunk Head Screw M5x12	£0.48 £0.40
76	MK265085-5 Available to backorder	+ Countersunk Head Screw	£0.48 £0.40
78	MK158925-3 Available to backorder	Dust Box L Complete (Alt.)	£35.00 £29.17
79	MK344761-5 Available to backorder	Earth Plate	£0.86 £0.72
80	MK151564-8 Available to backorder	Dust Cap Complete	£7.66 £6.38
81	MK421362-7 Available to backorder	Cap	£1.44 £1.20
82	MK188823-7 Available to backorder	Dust Box R Set S	£38.56 £32.13
83	MK911263-2 Available to backorder	Pan Head Screw M5x40	£0.58 £0.48
84	MK819003-1 Available to backorder	Makita Label	£0.58 £0.48
85	MK213621-1 Available to backorder	O Ring 46 (Alt.)	£0.86 £0.72
86	MK241513-4 Available to backorder	Fan 92	£2.46 £2.05
88	MK654542-2 Available to backorder	Terminal Block 2P	£2.76 £2.30
89	MK961055-9 Available to backorder	Retaining Ring S-15	£0.48 £0.40
901	MK410047-0 Available to backorder	Wrench Holder 5.6 (A01)	£0.86 £0.72
903	MK783204-6 Available to backorder	Hex. Wrench 6 (A03)	£1.84 £1.53
