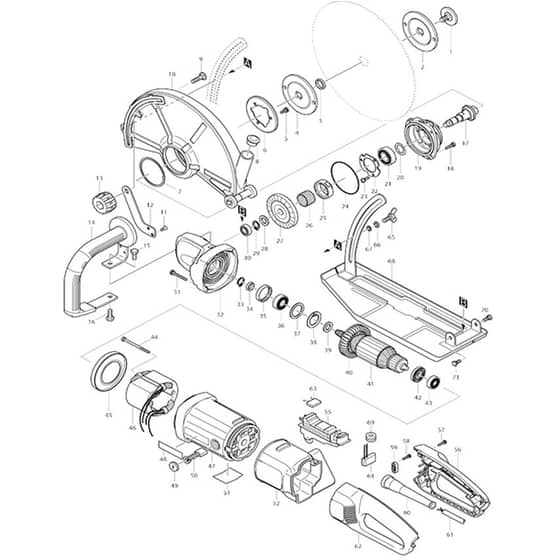

Makita 4112S - Angle Cutter 305mm - Power Tool Diagram

Description

Model No. 4112S

Angle Cutter 305mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK265265-3 Available to backorder	Hex. Bolt M10x25	£4.34 £3.62
2	MK224184-2 Available to backorder	Inner Flange 100	£11.26 £9.38
3	MK257054-0 Available to backorder	Ring 20	£2.32 £1.93
5	MK925216-5 Available to backorder	+ Hex. Bolt M5x14	£0.48 £0.40
6	MK345269-2 Available to backorder	Pressure Plate	£3.34 £2.78
7	MK341853-1 Available to backorder	Plate B	£0.74 £0.62
8	MK286289-6 Available to backorder	Cap 32 <	£5.48 £4.57
8	MK286268-4 Available to backorder	Cap 31	£1.02 £0.85
9	MK265845-5 Available to backorder	Cap Square Neck Bolt M8x30	£0.74 £0.62
10	MK257091-4 Available to backorder	Ring 12 (C10)	£2.32 £1.93
10	MK961015-1 Available to backorder	Stop Ring E-9 (C20)	£0.48 £0.40
10	MK125185-2 Available to backorder	Wheel Cover Ass'y	£112.96 £94.13
10	MK817574-2 Available to backorder	Caution Label (C30)	£2.02 £1.68
11	MK912202-5 Available to backorder	Countersunk Head Screw M5x8	£0.48 £0.40
12	MK345291-9 Available to backorder	Lock Plate	£2.46 £2.05
13	MK252648-6 Available to backorder	Thumb Nut M8	£5.94 £4.95
14	MK273655-6 Available to backorder	Grip	£32.80 £27.33
15	MK921432-7 Available to backorder	Hex. Bolt M8x20	£0.74 £0.62
17	MK153541-6 Available to backorder	Spindle Complete	£23.68 £19.73
18	MK265502-5 Available to backorder	+ Hex. Bolt M5x20	£0.74 £0.62
19	MK153539-3 Available to backorder	Bearing Box Complete	£45.94 £38.28
20	MK267041-1 Available to backorder	Flat Washer 20	£0.74 £0.62
21	MK211326-7 Available to backorder	Ball Bearing 6004Ddw	£11.42 £9.52
22	MK285708-9 Available to backorder	Bearing Retainer 50	£2.32 £1.93
23	MK911221-8 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
24	MK213757-6 Available to backorder	O Ring 80 (Alt.)	£1.60 £1.33
25	MK331644-8 Available to backorder	Lock Sleeve	£19.64 £16.37
26	MK233922-1 Available to backorder	Lock Spring 24	£11.84 £9.87
27	MK227439-4 Available to backorder	Spiral Bevel Gear 57	£42.62 £35.52
28	MK267251-0 Available to backorder	Flat Washer 15	£5.20 £4.33
29	MK961055-9 Available to backorder	Retaining Ring S-15	£0.48 £0.40
30	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
31	MK925261-0 Available to backorder	+ Hex. Bolt M5x40	£0.74 £0.62
32	MK153542-4 Available to backorder	Gear Housing Complete	£50.72 £42.27
34	MK257053-2 Available to backorder	Ring 15	£0.74 £0.62
35	MK262554-7 Available to backorder	Rubber Ring 36	£1.16 £0.97
36	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
37	MK267250-2 Available to backorder	Flat Washer 30	£1.74 £1.45
38	MK962157-4 Available to backorder	Retaining Ring R-40	£1.32 £1.10
40	MK240060-2 Available to backorder	Fan 80	£3.76 £3.13
41	MK516868-9 Available to backorder	Armature Ass'y 220-240V	£111.38 £92.82
42	MK681630-2 Available to backorder	Insulation Washer	£0.48 £0.40
43	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£8.96 £7.47
44	MK266059-9 Available to backorder	Tapping Screw 5x75	£1.32 £1.10
45	MK416131-9 Available to backorder	Baffle Plate	£1.16 £0.97
46	MK626129-0 Available to backorder	Field 230V	£54.76 £45.63
47	MK643707-1 Available to backorder	Brush Holder (C10)	£5.06 £4.22
47	MK183564-0 Available to backorder	Motor Housing	£32.80 £27.33
48	MK819064-1 Available to backorder	Makita Mark	£1.74 £1.45

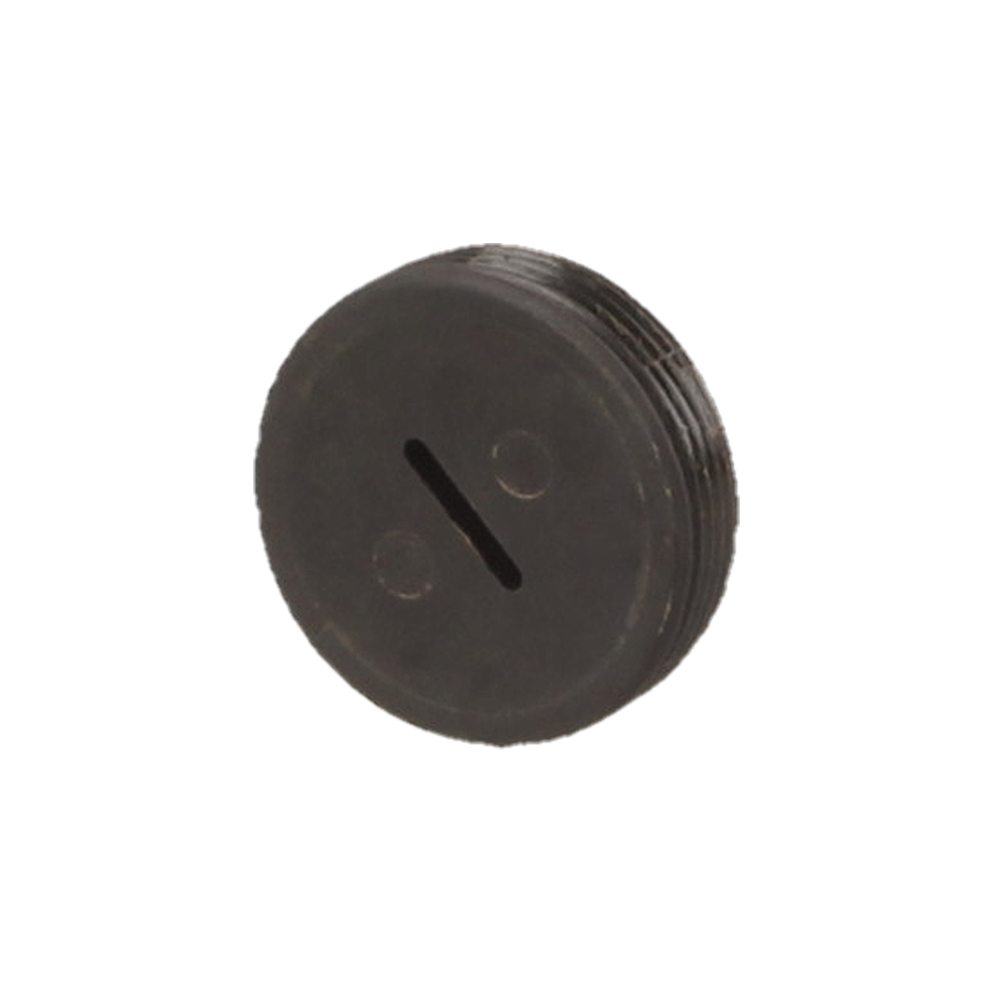

49	MK643710-2 Available to backorder	Brush Holder Cap	£1.28 £1.07
50	MK191957-7 Available to backorder	A.C. Carbon Brush Cb-204	£8.08 £6.73
52	MK421831-8 Available to backorder	Dust Cover	£6.06 £5.05
56	MK183615-9 Available to backorder	Handle Set	£23.68 £19.73
56	MK421833-4 Available to backorder	Sponge Sheet (C10)	£0.58 £0.48
57	MK266045-0 Available to backorder	Tapping Screw 4x20	£0.48 £0.40
58	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
59	MK687053-2 Available to backorder	Strain Relief	£0.86 £0.72
60	MK682560-0 Available to backorder	Cord Guard 10	£2.18 £1.82
64	MK631553-4 Available to backorder	Soft Start Circuit	£34.38 £28.65
65	MK924426-1 Available to backorder	Wing Bolt M8x20	£3.34 £2.78
66	MK942201-3 Available to backorder	Spring Washer 8	£0.48 £0.40
67	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
68	MK165343-8 Available to backorder	Base	£14.44 £12.03
69	MK688131-1 Available to backorder	Line Filter (Alt.)	£0.58 £0.48
70	MK265506-7 Available to backorder	Shoulder Hex. Bolt M6	£2.60 £2.17
901	MK782210-8 Available to backorder	Socket Wrench 17 (A01)	£5.94 £4.95
902	MK416401-6 Available to backorder	Latch (C10)	£2.12 £1.77
902	MK163467-4 Available to backorder	Latch (C10)	£2.60 £2.17
902	MK819145-1 Available to backorder	Makita Logo Label (C20)	£0.86 £0.72
902	MK192613-2 Available to backorder	Elbow Joint 32 (F02)	£19.62 £16.35
