Makita 4112HS - Angle Cutter 305mm - Power Tool Diagram

Description

Model No. 4112HS

Angle Cutter 305mm

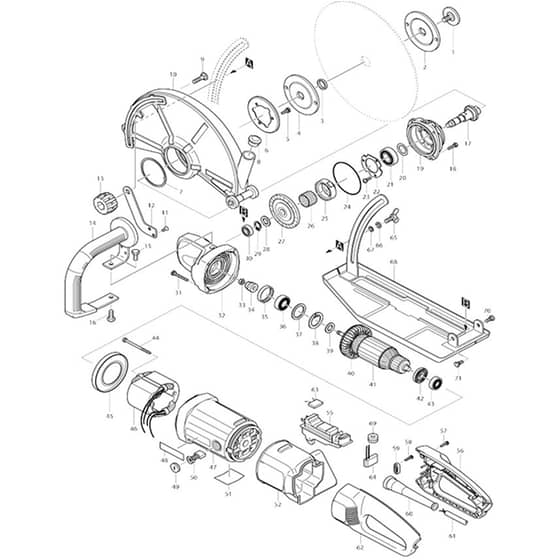

Power Tool Parts Diagrams

	Part No.	Details
2	MK224184-2 Available to backorder	Inner Flange 100	£11.64 £9.70
3	MK257054-0 Available to backorder	Ring 20	£2.53 £2.11
5	MK925216-5 Available to backorder	+ Hex. Bolt M5x14 <	£0.48 £0.40
5	MK925221-2 Available to backorder	+ Hex. Bolt M5x16	£0.48 £0.40
6	MK345269-2 Available to backorder	Pressure Plate	£3.48 £2.90
7	MK341853-1 Available to backorder	Plate B	£0.89 £0.74
8	MK286268-4 Available to backorder	Cap 31	£1.22 £1.02
8	MK286289-6 Available to backorder	Cap 32 <	£5.64 £4.70
9	MK265845-5 Available to backorder	Cap Square Neck Bolt M8x30	£0.89 £0.74
10	MK125185-2 Available to backorder	Wheel Cover Ass'y	£108.48 £90.40
10	MK817574-2 Available to backorder	Caution Label (C30)	£2.21 £1.84
10	MK961015-1 Available to backorder	Stop Ring E-9 (C20)	£0.48 £0.40
10	MK257091-4 Available to backorder	Ring 12 (C10)	£2.53 £2.11
11	MK912202-5 Available to backorder	Countersunk Head Screw M5x8	£0.48 £0.40
12	MK345291-9 Available to backorder	Lock Plate	£2.69 £2.24
13	MK252648-6 Available to backorder	Thumb Nut M8	£6.12 £5.10
14	MK273655-6 Available to backorder	Grip	£33.96 £28.30
15	MK921432-7 Available to backorder	Hex. Bolt M8x20	£0.89 £0.74
17	MK153541-6 Available to backorder	Spindle Complete	£24.48 £20.40
18	MK265502-5 Available to backorder	+ Hex. Bolt M5x20	£0.89 £0.74
19	MK153539-3 Available to backorder	Bearing Box Complete	£47.52 £39.60
20	MK267041-1 Available to backorder	Flat Washer 20	£0.89 £0.74
21	MK211326-7 Available to backorder	Ball Bearing 6004Ddw	£11.76 £9.80
22	MK285708-9 Available to backorder	Bearing Retainer 50	£2.53 £2.11
23	MK911221-8 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
24	MK213757-6 Available to backorder	O Ring 80 (Alt.)	£1.74 £1.45
25	MK331644-8 Available to backorder	Lock Sleeve	£20.28 £16.90
26	MK233922-1 Available to backorder	Lock Spring 24	£12.24 £10.20
27	MK227438-6 Available to backorder	Spiral Bevel Gear 48	£60.12 £50.10
28	MK267251-0 Available to backorder	Flat Washer 15	£5.40 £4.50
29	MK961055-9 Available to backorder	Retaining Ring S-15	£0.48 £0.40
30	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.40 £7.00
31	MK925261-0 Available to backorder	+ Hex. Bolt M5x40	£0.89 £0.74
32	MK153542-4 Available to backorder	Gear Housing Complete	£52.44 £43.70
33	MK252178-7 Available to backorder	Hex. Nut M8-12	£0.89 £0.74
34	MK227440-9 Available to backorder	Spiral Bevel Gear 9	£21.12 £17.60
35	MK262554-7 Available to backorder	Rubber Ring 36	£1.39 £1.16
36	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.72 £8.10
37	MK267250-2 Available to backorder	Flat Washer 30	£1.90 £1.58
38	MK962157-4 Available to backorder	Retaining Ring R-40	£1.58 £1.32
40	MK240060-2 Available to backorder	Fan 80	£3.84 £3.20
41	MK516888-3 Available to backorder	Armature Ass'y 220-240V	£103.32 £86.10
42	MK681630-2 Available to backorder	Insulation Washer	£0.48 £0.40
43	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£9.24 £7.70
44	MK266059-9 Available to backorder	Tapping Screw 5x75	£1.58 £1.32
45	MK416131-9 Available to backorder	Baffle Plate	£1.39 £1.16
46	MK626134-7 Available to backorder	Field 220-240V	£48.96 £40.80
47	MK183564-0 Available to backorder	Motor Housing	£33.96 £28.30
47	MK643707-1 Available to backorder	Brush Holder (C10)	£5.28 £4.40
48	MK819064-1 Available to backorder	Makita Mark	£1.90 £1.58
49	MK643710-2 Available to backorder	Brush Holder Cap	£1.28 £1.07
50	MK191957-7 In stock	A.C. Carbon Brush Cb-204	£8.71 £7.26
51	MK850449-2 Available to backorder	Name Plate 4112Hs	£0.89 £0.74
52	MK421831-8 Available to backorder	Dust Cover	£6.24 £5.20
55	MK651179-6 Available to backorder	Switch 1362.0113 x	£30.48 £25.40
56	MK421833-4 Available to backorder	Sponge Sheet (C10)	£0.70 £0.58
56	MK183615-9 Available to backorder	Handle Set	£24.48 £20.40
57	MK266045-0 Available to backorder	Tapping Screw 4x20	£0.48 £0.40
58	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
59	MK687053-2 Available to backorder	Strain Relief	£1.03 £0.86
60	MK682560-0 Available to backorder	Cord Guard 10	£2.38 £1.98
64	MK631553-4 Available to backorder	Soft Start Circuit	£35.52 £29.60
65	MK924426-1 Available to backorder	Wing Bolt M8x20	£3.48 £2.90
66	MK942201-3 Available to backorder	Spring Washer 8	£0.48 £0.40
67	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
68	MK165343-8 Available to backorder	Base	£14.88 £12.40
69	MK688131-1 Available to backorder	Line Filter (Alt.)	£0.70 £0.58
70	MK265506-7 Available to backorder	Shoulder Hex. Bolt M6	£2.83 £2.36
901	MK782210-8 Available to backorder	Socket Wrench 17 (A01)	£6.12 £5.10
902	MK416401-6 Available to backorder	Latch (C10)	£2.32 £1.93
902	MK163467-4 Available to backorder	Latch (C10)	£2.83 £2.36
902	MK192613-2 Available to backorder	Elbow Joint 32 (F02)	£20.28 £16.90
902	MK819145-1 Available to backorder	Makita Logo Label (C20)	£1.03 £0.86
