Description

Model No. 3706

Cutout Tool

Power Tool Parts Diagrams

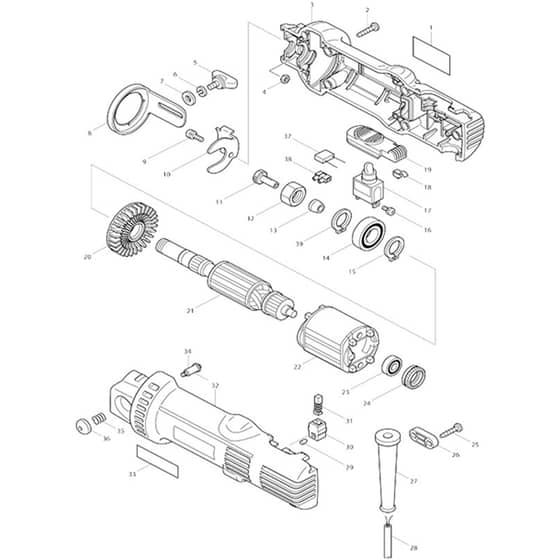

Ref. Img. Part No. Details
  1 Name Plate 3706
Name Plate 3706
MK853169-7
Available to backorder
Name Plate 3706
£1.16 £0.97

  2 Tapping Screw 4x18 (Alt.)
Tapping Screw 4x18 (Alt.)
MK266326-2
Available to backorder
Tapping Screw 4x18 (Alt.)
£0.48 £0.40

  2 Tapping Screw 4x18
Tapping Screw 4x18
MK265995-6
Available to backorder
Tapping Screw 4x18
£0.48 £0.40

  2 Tapping Screw 4x18 (Alt.)
Tapping Screw 4x18 (Alt.)
MK265A48-7
Available to backorder
Tapping Screw 4x18 (Alt.)
£0.48 £0.40

  3 Housing Set
Housing Set
MK183337-1
Available to backorder
Housing Set
£21.96 £18.30

  4 Hex. Nut M4
Hex. Nut M4
MK931102-0
Available to backorder
Hex. Nut M4
£0.58 £0.48

  5 Thumb Screw M5x10
Thumb Screw M5x10
MK265750-6
Available to backorder
Thumb Screw M5x10
£1.60 £1.33

  6 Spring Washer 5
Spring Washer 5
MK942101-7
Available to backorder
Spring Washer 5
£0.48 £0.40

  7 Flat Washer 5
Flat Washer 5
MK941101-4
Available to backorder
Flat Washer 5
£0.48 £0.40

  8 Shoe Plate
Shoe Plate
MK344964-1
Available to backorder
Shoe Plate
£4.20 £3.50

  9 Pan Head Screw M4x10 With
Pan Head Screw M4x10 With
MK911111-5
Available to backorder
Pan Head Screw M4x10 With
£0.48 £0.40

  10 Shoe Support
Shoe Support
MK344965-9
Available to backorder
Shoe Support
£4.62 £3.85

  11 Adapter
Adapter
MK324149-5
Available to backorder
Adapter
£10.80 £9.00

  12 Collet Nut 6
Collet Nut 6
MK763606-2
Available to backorder
Collet Nut 6
£3.64 £3.03

  13 Collet Cone 1/4
Collet Cone 1/4
MK763608-8
Available to backorder
Collet Cone 1/4"
£4.78 £3.98

  14 Ball Bearing 6002Ddw (Alt.)
Ball Bearing 6002Ddw (Alt.)
MK211236-8
Available to backorder
Ball Bearing 6002Ddw (Alt.)
£7.80 £6.50

  15 Retaining Ring S-15
Retaining Ring S-15
MK961055-9
Available to backorder
Retaining Ring S-15
£0.48 £0.40

  16 Pan Head Screw M3.5x7
Pan Head Screw M3.5x7
MK652008-6
Available to backorder
Pan Head Screw M3.5x7
£0.48 £0.40

  17 Switch
Switch
MK651423-1
Available to backorder
Switch
£10.56 £8.80

  18 Leaf Spring
Leaf Spring
MK232166-0
Available to backorder
Leaf Spring
£1.32 £1.10

  19 Switch Lever
Switch Lever
MK417500-7
Available to backorder
Switch Lever
£1.44 £1.20

  20 Fan 56
Fan 56
MK240044-0
Available to backorder
Fan 56
£2.60 £2.17

  21 Armature Ass'y 220-240V
Armature Ass'y 220-240V
MK517549-8
Available to backorder
Armature Ass'y 220-240V
£61.24 £51.03

  22 Field Ass'y 220-240V (INC. 4 29 32 33)
Field Ass'y 220-240V (INC. 4 29 32 33)
MK599703-6
Available to backorder
Field Ass'y 220-240V (INC. 4 29 32 33)
£21.96 £18.30

  23 Ball Bearing 607Ddw
Ball Bearing 607Ddw
MK210017-7
Available to backorder
Ball Bearing 607Ddw
£4.62 £3.85

  24 Rubber Ring 19
Rubber Ring 19
MK421479-6
Available to backorder
Rubber Ring 19
£6.22 £5.18

  26 Strain Relief
Strain Relief
MK687052-4
Available to backorder
Strain Relief
£0.74 £0.62

  27 Cord Guard 8
Cord Guard 8
MK682559-5
Available to backorder
Cord Guard 8
£0.86 £0.72

  28 Power Supply Cord 1.0-2-4.0
Power Supply Cord 1.0-2-4.0
MK695034-2
Available to backorder
Power Supply Cord 1.0-2-4.0
£17.20 £14.33

  29 Rubber Pin 4
Rubber Pin 4
MK263002-9
Available to backorder
Rubber Pin 4
£0.48 £0.40

  30 Brush Holder 5-8
Brush Holder 5-8
MK643552-4
Available to backorder
Brush Holder 5-8
£0.58 £0.48

  31 Carbon Brush Set Cb-64 (Alt.)
Carbon Brush Set Cb-64 (Alt.)
MK194968-1
Available to backorder
Carbon Brush Set Cb-64 (Alt.)
£3.00 £2.50

  33 Makita Label
Makita Label
MK819063-3
Available to backorder
Makita Label
£1.16 £0.97

  34 Pin 4-6.5
Pin 4-6.5
MK256465-6
Available to backorder
Pin 4-6.5
£5.48 £4.57

  35 Compression Spring 8
Compression Spring 8
MK233072-2
Available to backorder
Compression Spring 8
£0.48 £0.40

  36 Pin Cap
Pin Cap
MK417236-8
Available to backorder
Pin Cap
£0.74 £0.62

  38 Terminal Block 1P
Terminal Block 1P
MK654532-5
Available to backorder
Terminal Block 1P
£3.46 £2.88

  901 Wrench Holder (A01)
Wrench Holder (A01)
MK423319-4
Available to backorder
Wrench Holder (A01)
£2.12 £1.77

  902 Wrench 17 (Alt.) (A02-1)
Wrench 17 (Alt.) (A02-1)
MK781037-3
Available to backorder
Wrench 17 (Alt.) (A02-1)
£2.48 £2.07

  903 Drywall Guide Bit 3.18 Set (Alt.) (A03-1)
Drywall Guide Bit 3.18 Set (Alt.) (A03-1)
MK191G69-8
Available to backorder
Drywall Guide Bit 3.18 Set (Alt.) (A03-1)
£9.48 £7.90

  904 Circular Guide Set (A04)
Circular Guide Set (A04)
MK193448-4
Available to backorder
Circular Guide Set (A04)
£59.44 £49.53

  905 Dust Collection Cover (A05)
Dust Collection Cover (A05)
MK193449-2
Available to backorder
Dust Collection Cover (A05)
£13.16 £10.97

  906 Multipurpose Bit 3.18 Set (A06)
Multipurpose Bit 3.18 Set (A06)
MK193483-2
Available to backorder
Multipurpose Bit 3.18 Set (A06)
£10.96 £9.13

  907 Connector Plastic Case (Typ (A07)
Connector Plastic Case (Typ (A07)
MK821549-5
Available to backorder
Connector Plastic Case (Typ (A07)
£45.04 £37.53

  907 Latch (C10)
Latch (C10)
MK416661-0
Available to backorder
Latch (C10)
£0.88 £0.73

  907 Latch (C10)
Latch (C10)
MK453974-8
Available to backorder
Latch (C10)
£2.00 £1.67

  907 Plastic Carrying Case (A07)
Plastic Carrying Case (A07)
MK824676-7
Available to backorder
Plastic Carrying Case (A07)
£30.34 £25.28

  908 Inner Tray (A08)
Inner Tray (A08)
MK837895-6
Available to backorder
Inner Tray (A08)
£11.16 £9.30

  910 Terminal 1.25-M4 (C10)
Terminal 1.25-M4 (C10)
MK654002-4
Available to backorder
Terminal 1.25-M4 (C10)
£0.48 £0.40
