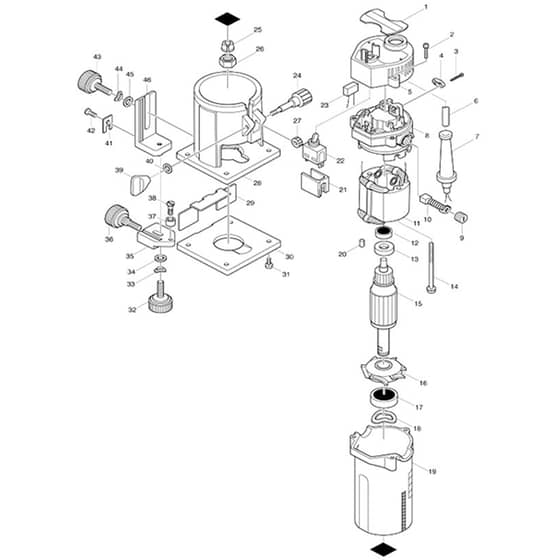

Makita 3703 - Trimmer 6mm - Power Tool Diagram

Description

Model No. 3703

Trimmer 6mm

Power Tool Parts Diagrams

	Part No.	Details
1	MK856566-6 Available to backorder	Name Plate 3703	£0.89 £0.74
2	MK911168-6 Available to backorder	Pan Head Screw M4x40	£0.48 £0.40
3	MK265995-6 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
3	MK265941-9 Available to backorder	Tapping Screw Bt 4x18	£0.70 £0.58
4	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
5	MK410062-4 Available to backorder	Rear Cover	£6.48 £5.40
7	MK682502-4 Available to backorder	Cord Guard 8-85	£1.58 £1.32
8	MK643932-4 Available to backorder	Brush Holder 6x9 (Alt.) (C11)	£2.21 £1.84
8	MK159301-4 Available to backorder	Motor Rear Housing	£26.16 £21.80
8	MK643917-0 Available to backorder	Brush Holder (C10)	£3.72 £3.10
9	MK643550-8 Available to backorder	Brush Holder Cap 5-8	£0.70 £0.58
9	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
9	MK654100-4 Available to backorder	Ring Terminal (C10)	£0.70 £0.58
10	MK195010-1 Available to backorder	Carbon Brush Set Cb-411 (Alt.)	£3.24 £2.70
12	MK211028-5 Available to backorder	Ball Bearing 627Lb	£10.92 £9.10
13	MK681614-0 Available to backorder	Insulation Washer	£0.70 £0.58
14	MK911596-5 Available to backorder	Pan Head Screw M4x70	£1.39 £1.16
16	MK241615-6 Available to backorder	Fan 52	£8.52 £7.10
17	MK211223-7 Available to backorder	Ball Bearing 6002Ddw	£9.72 £8.10
17	MK211489-9 Available to backorder	Ball Bearing 6002Llux (Alt.)	£5.64 £4.70
18	MK253905-5 Available to backorder	Wave Washer 23	£0.70 £0.58
19	MK414567-6 Available to backorder	Motor Housing	£21.12 £17.60
20	MK263014-2 Available to backorder	Rubber Pin 4	£0.48 £0.40
21	MK410069-0 Available to backorder	Switch Holder	£1.58 £1.32
22	MK651467-1 Available to backorder	Switch Ste206K	£18.48 £15.40
23	MK645105-5 Available to backorder	Noise Suppressor	£2.38 £1.98
24	MK251890-6 Available to backorder	Screw M5x33	£5.88 £4.90
25	MK763607-0 Available to backorder	Collet Cone 6mm	£4.56 £3.80
26	MK763606-2 Available to backorder	Collet Nut 6	£3.72 £3.10
27	MK226217-9 Available to backorder	Spur Gear 16	£1.39 £1.16
28	MK411930-4 Available to backorder	Base	£26.16 £21.80
29	MK418647-0 Available to backorder	Chip Deflector (Alt.)	£0.89 £0.74
30	MK410585-2 Available to backorder	Base Protector	£5.40 £4.50
31	MK251308-7 Available to backorder	+ Pan Head Screw M4x10	£0.48 £0.40
32	MK251815-0 Available to backorder	Screw M6x25	£0.89 £0.74
32	MK265763-7 Available to backorder	Thumb Screw M6x25 (Alt.)	£0.70 £0.58
33	MK253903-9 Available to backorder	Wave Washer 6 (Refs 044 \| A05)	£0.48 £0.40
34	MK941151-9 Available to backorder	Flat Washer 6 (Refs 045 \| A04)	£0.48 £0.40
35	MK317789-6 Available to backorder	Trimmer Guide (Alt.)	£1.58 £1.32
36	MK265764-5 Available to backorder	Thumb Screw M6 (Alt.)	£0.89 £0.74
37	MK324378-0 Available to backorder	Roller 11 (Alt.)	£0.89 £0.74
38	MK251471-6 Available to backorder	- Flat Head Screw M5 (Alt.)	£0.70 £0.58
39	MK252632-1 Available to backorder	Wing Nut M5	£4.92 £4.10
40	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
41	MK341136-9 Available to backorder	Hook	£0.89 £0.74
42	MK912116-8 Available to backorder	Countersunk Head Screw M4	£0.48 £0.40
42	MK265135-6 Available to backorder	+ Countersunk Head Screw	£0.48 £0.40
46	MK317788-8 Available to backorder	Guide Holder (Alt.)	£1.90 £1.58
47	MK122703-7 Available to backorder	Trimmer Guide Ass'y (Alt.)	£16.32 £13.60
901	MK251919-8 Available to backorder	Cap Square Neck Bolt M6x20 (A01)	£0.89 £0.74
902	MK343593-7 Available to backorder	Guide Plate (A02)	£2.21 £1.84
903	MK343594-5 Available to backorder	Straight Guide (C10)	£12.48 £10.40
903	MK122391-0 Available to backorder	Straight Guide Ass'y (A03)	£9.72 £8.10
906	MK934301-3 Available to backorder	Wing Nut M6 (A06)	£1.03 £0.86
907	MK343577-5 Available to backorder	Templet Guide 10 (A07)	£4.68 £3.90
908	MK781036-5 Available to backorder	Wrench 10 (Alt.) (A08-1)	£3.72 £3.10
