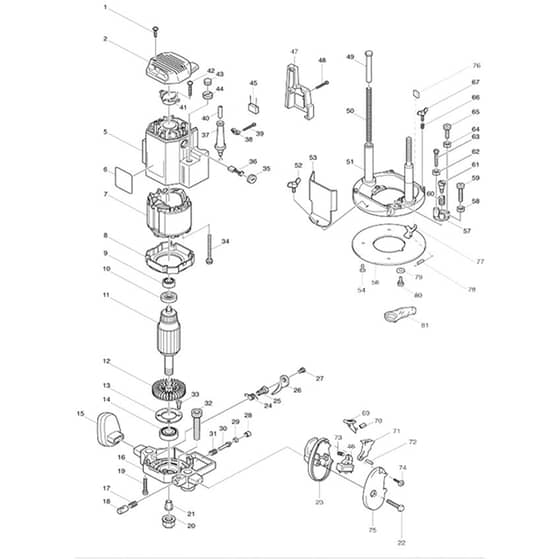

Makita 3612 - Router 12mm - Power Tool Diagram

Description

Model No. 3612

Router 12mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266021-4 Available to backorder	Tapping Screw 5x20	£0.48 £0.40
2	MK415450-0 Available to backorder	Rear Cover	£12.00 £10.00
2	MK643705-5 Available to backorder	Brush Holder (C20)	£11.88 £9.90
2	MK643707-1 Available to backorder	Brush Holder (Alt.) (C21)	£5.06 £4.22
5	MK159730-1 Available to backorder	Motor Housing Complete	£112.96 £94.13
6	MK851516-6 Available to backorder	Name Plate 3612	£1.16 £0.97
7	MK636058-9 Available to backorder	Field 220V	£38.64 £32.20
8	MK415069-5 Available to backorder	Baffle Plate	£4.20 £3.50
9	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
10	MK681633-6 Available to backorder	Insulation Washer	£0.58 £0.48
13	MK285657-0 Available to backorder	Bearing Retainer 50	£1.16 £0.97
14	MK211326-7 Available to backorder	Ball Bearing 6004Ddw	£11.42 £9.52
15	MK415070-0 Available to backorder	Knob (L)	£11.26 £9.38
16	MK152567-5 Available to backorder	Motor Bracket Complete	£91.74 £76.45
17	MK231142-1 Available to backorder	Compression Spring 10	£0.48 £0.40
18	MK323559-3 Available to backorder	Half Nut	£1.32 £1.10
19	MK911263-2 Available to backorder	Pan Head Screw M5x40	£0.58 £0.48
20	MK763629-0 Available to backorder	Collet Nut	£10.84 £9.03
21	MK763628-2 Available to backorder	Collet Cone 12mm	£34.34 £28.62
22	MK911368-8 Available to backorder	Pan Head Screw M6x45	£0.54 £0.45
23	MK415407-1 Available to backorder	Knob (R)	£9.40 £7.83
24	MK231618-8 Available to backorder	Torsion Spring 15	£0.86 £0.72
25	MK266015-9 Available to backorder	Set Bolt M10	£7.96 £6.63
26	MK344097-2 Available to backorder	Lock Lever	£2.18 £1.82
27	MK265269-5 Available to backorder	Hex. Bolt M5x12	£0.48 £0.40
28	MK286235-9 Available to backorder	Cap 11	£0.86 £0.72
29	MK962062-5 Available to backorder	Retaining Ring R-12	£0.48 £0.40
30	MK256606-4 Available to backorder	Pin 6	£4.62 £3.85
31	MK231037-8 Available to backorder	Compression Spring 7	£0.48 £0.40
32	MK251861-3 Available to backorder	Screw M10x77	£1.74 £1.45
33	MK251295-0 Available to backorder	+ Countersunk Head Screw	£0.48 £0.40
34	MK911944-8 Available to backorder	Pan Head Screw M5x80	£1.88 £1.57
35	MK643700-5 Available to backorder	Brush Holder Cap 7-18	£0.86 £0.72
36	MK194991-6 In stock	Carbon Brush Set Cb203 (Alt.)	£4.56 £3.80
37	MK682503-2 Available to backorder	Cord Guard 8-90	£1.32 £1.10
38	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
39	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 042 \| 048 \| 074 \| E06)	£0.48 £0.40
41	MK316499-2 Available to backorder	Bearing Box	£10.12 £8.43
43	MK252625-8 Available to backorder	Nut M10	£1.74 £1.45
44	MK410129-8 Available to backorder	Nylon Nut M10	£0.74 £0.62
45	MK645253-0 Available to backorder	Noise Suppressor	£4.62 £3.85
46	MK651419-2 Available to backorder	Switch Ald164	£24.56 £20.47
46	MK651430-4 Available to backorder	Switch (Alt.)	£14.88 £12.40
47	MK415409-7 Available to backorder	Cover	£9.98 £8.32
49	MK314062-5 Available to backorder	Pole	£1.32 £1.10
50	MK231329-5 Available to backorder	Compression Spring 11	£1.32 £1.10
51	MK151407-4 Available to backorder	Base Complete	£109.64 £91.37
52	MK924206-5 Available to backorder	Wing Bolt M5x10	£1.02 £0.85
53	MK410128-0 Available to backorder	Chip Deflector	£3.04 £2.53
54	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.48 £0.40
56	MK413063-1 Available to backorder	Base Plate	£11.56 £9.63
57	MK134205-1 Available to backorder	Stopper Ass'y	£9.24 £7.70
58	MK931202-6 Available to backorder	Hex. Nut M5 (Refs 062 \| 064)	£0.48 £0.40
59	MK265335-8 Available to backorder	+ Hex. Bolt M5x28	£0.58 £0.48
59	MK265587-1 Available to backorder	+Hex. Bolt M5x20 S	£0.86 £0.72
60	MK231231-2 Available to backorder	Compression Spring 12	£0.48 £0.40
61	MK251423-7 Available to backorder	- Flat Head Screw M6	£1.32 £1.10
63	MK265336-6 Available to backorder	+ Hex. Bolt M5x40	£0.74 £0.62
65	MK265333-2 Available to backorder	+ Hex. Bolt M5x16	£0.48 £0.40
65	MK265586-3 Available to backorder	+Hex. Bolt M5x14 S	£0.86 £0.72
66	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
67	MK924216-2 Available to backorder	Wing Bolt M5x15	£0.96 £0.80
69	MK415411-0 Available to backorder	Lock Off Button	£1.74 £1.45
70	MK233024-3 Available to backorder	Compression Spring 4	£0.48 £0.40
71	MK415158-6 Available to backorder	Switch Lever	£3.62 £3.02
72	MK256221-4 Available to backorder	Pin 3	£0.48 £0.40
73	MK231372-4 Available to backorder	Compression Spring 5	£0.48 £0.40
75	MK415408-9 Available to backorder	Knob Cover	£7.22 £6.02
76	MK286239-1 Available to backorder	Cap 14	£1.74 £1.45
77	MK344098-0 Available to backorder	Lock Plate	£8.38 £6.98
78	MK231794-8 Available to backorder	Tension Spring 5	£2.60 £2.17
79	MK253811-4 Available to backorder	Flat Washer 5	£0.48 £0.40
80	MK266016-7 Available to backorder	Set Bolt M5x10	£4.62 £3.85
81	MK415412-8 Available to backorder	Dust Nozzle	£27.88 £23.23
901	MK342428-9 Available to backorder	Straight Guide (A01)	£13.76 £11.47
902	MK781213-9 Available to backorder	Wrench 8 (A02)	£3.34 £2.78
902	MK199140-0 Available to backorder	Guide Rail 1000 Set (F02)	£53.02 £44.18
903	MK199141-8 Available to backorder	Guide Rail 1500 Set (F03)	£104.38 £86.98
903	MK781034-9 Available to backorder	Wrench 8-24 < (A03-2)	£3.62 £3.02
904	MK194368-5 Available to backorder	Guide Rail 1400 Set (F04)	£78.76 £65.63
906	MK763804-8 Available to backorder	Collet Sleeve For 8 mm Bit (A06)	£8.60 £7.17
907	MK763801-4 Available to backorder	Collet Sleeve For 6 mm Bit (A07)	£8.88 £7.40
907	MK194416-0 Available to backorder	Sheet 10000 Set (F07)	£39.90 £33.25
908	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F08)	£58.88 £49.07
908	MK924311-8 Available to backorder	Wing Bolt M6x12 (A08)	£1.44 £1.20
910	MK941151-9 Available to backorder	Flat Washer 6 (A10)	£0.48 £0.40
911	MK122256-6 Available to backorder	Guide Holder Ass'y (A11)	£37.08 £30.90
911	MK265758-0 Available to backorder	Thumb Screw M10x45 (C20)	£1.92 £1.60
911	MK122700-3 Available to backorder	Guide Holder Ass'y (Alt.) (A11-1)	£17.16 £14.30
911	MK265754-8 Available to backorder	Thumb Screw M6x12 (C10)	£0.58 £0.48
912	MK251830-4 Available to backorder	Screw M10x34 (A12)	£2.18 £1.82
