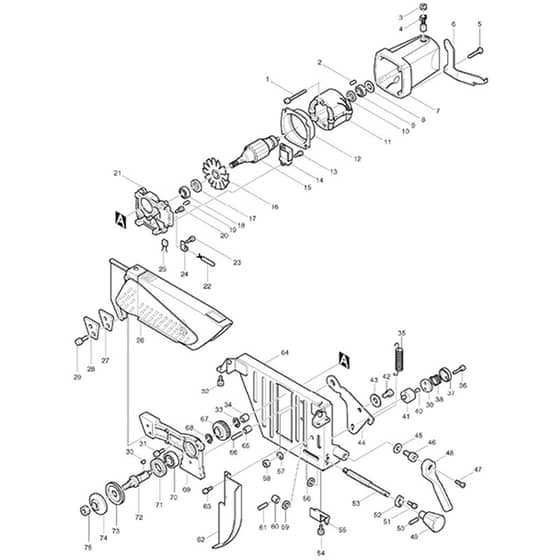

Makita 2711 - Vintage 10" Stationary Saw - Power Tool 01 Diagram

Name: Makita 2711 - Vintage 10" Stationary Saw - Power Tool 01 Diagram
SKU: 2711_vintage_10_stationary_saw_power_tool_01-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita 2711 - Vintage 10" Stationary Saw - Power Tool 01 Diagram

Description

Model No. 2711

Vintage 10" Stationary Saw

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK911290-9 Available to backorder	Pan Head Screw M5x65	£1.16 £0.97
2	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
3	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.74 £0.62
5	MK911263-2 Available to backorder	Pan Head Screw M5x40	£0.58 £0.48
7	MK156138-0 Available to backorder	Motor Housing	£49.12 £40.93
8	MK253794-8 Available to backorder	Flat Washer 18	£0.74 £0.62
9	MK211068-3 Available to backorder	Ball Bearing 6200Lb	£7.22 £6.02
10	MK213051-6 Available to backorder	Dust Seal 10	£0.86 £0.72
13	MK911111-5 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
17	MK213202-1 Available to backorder	Dust Seal 15	£0.86 £0.72
18	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.62 £3.02
19	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
20	MK652014-1 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
23	MK911124-6 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
24	MK687042-7 Available to backorder	Strain Relief	£0.58 £0.48
27	MK341518-5 Available to backorder	Adjusting Washer	£0.86 £0.72
29	MK921441-6 Available to backorder	Hex. Bolt M8x25	£0.74 £0.62
30	MK254001-2 Available to backorder	Woodruff Key 4	£0.74 £0.62
31	MK911251-9 Available to backorder	Pan Head Screw M5x30	£0.48 £0.40
32	MK265391-8 Available to backorder	+Hex. Bolt M6x16	£0.74 £0.62
33	MK961057-5 Available to backorder	Retaining Ring S-17	£0.48 £0.40
36	MK911252-7 Available to backorder	Pan Head Screw M5x30	£0.48 £0.40
42	MK265279-2 Available to backorder	Hex. Bolt M10	£3.46 £2.88
43	MK253813-0 Available to backorder	Flat Washer 12	£0.74 £0.62
45	MK253024-7 Available to backorder	Flat Washer 10	£0.74 £0.62
46	MK265920-7 Available to backorder	Set Bolt M10x18	£2.18 £1.82
47	MK912312-8 Available to backorder	Countersunk Head Screw M6x12	£0.48 £0.40
49	MK271254-8 Available to backorder	Knob 45	£11.42 £9.52
50	MK951157-9 Available to backorder	Spring Pin 5-16	£0.48 £0.40
57	MK942251-8 Available to backorder	Spring Washer 10	£0.48 £0.40
58	MK931502-4 Available to backorder	Hex. Nut M10	£1.16 £0.97
59	MK253733-8 Available to backorder	Flat Washer 9	£0.58 £0.48
60	MK257588-3 Available to backorder	Sleeve 9	£3.76 £3.13
63	MK911201-4 Available to backorder	Pan Head Screw M5x8	£0.48 £0.40
65	MK257626-1 Available to backorder	Sleeve 8	£8.38 £6.98
66	MK256165-8 Available to backorder	Pin 8	£2.18 £1.82
68	MK961060-6 Available to backorder	Retaining Ring S-20	£0.58 £0.48
70	MK211306-3 Available to backorder	Ball Bearing 6204Llb	£11.26 £9.38
71	MK285824-7 Available to backorder	Bearing Retainer 31-48	£4.36 £3.63
80	MK931503-2 Available to backorder	Hex. Nut M10	£0.86 £0.72
81	MK912222-9 Available to backorder	Countersunk Head Screw M5x16	£0.48 £0.40
88	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
89	MK922462-1 Available to backorder	Hex. Socket Head Bolt M8x40	£0.74 £0.62
90	MK922357-8 Available to backorder	Hex. Socket Head Bolt M6x35	£0.74 £0.62
91	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
103	MK911321-4 Available to backorder	Pan Head Screw M6x16	£0.48 £0.40
108	MK911224-2 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
111	MK911148-2 Available to backorder	Pan Head Screw M4x25	£0.48 £0.40
112	MK687001-1 Available to backorder	Strain Relief	£0.48 £0.40
113	MK682505-8 Available to backorder	Cord Guard 10-90	£1.32 £1.10
116	MK286202-4 Available to backorder	Cap 20	£1.32 £1.10
118	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
119	MK911344-2 Available to backorder	Pan Head Screw M6x25	£0.74 £0.62
120	MK342789-7 Available to backorder	Stopper Plate	£0.58 £0.48
126	MK922307-3 Available to backorder	Hex. Socket Head Bolt M6x10	£0.48 £0.40
127	MK411447-7 Available to backorder	Lock Off Switch Button	£2.12 £1.77
401	MK783203-8 Available to backorder	Hex. Wrench 5	£0.72 £0.60
402	MK783002-8 Available to backorder	(+) Screwdriver 2	£2.34 £1.95
403	MK782021-1 Available to backorder	Wrench 13-22	£2.10 £1.75
404	MK781010-3 Available to backorder	Wrench 19	£4.04 £3.37
409	MK922337-4 Available to backorder	Hex. Socket Head Bolt M6x22	£0.48 £0.40
905	MK687600-9 Available to backorder	Strain Relief	£0.48 £0.40
