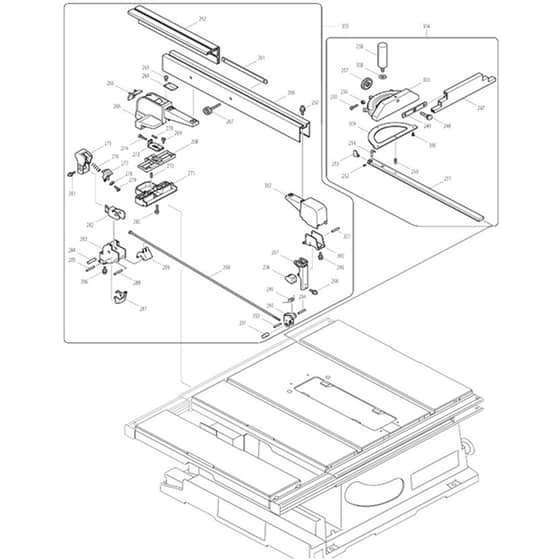

Makita 2704 - Table Saw 255mm - Power Tool 04 Diagram

Name: Makita 2704 - Table Saw 255mm - Power Tool 04 Diagram
SKU: 2704_table_saw_255mm_power_tool_04-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita 2704 - Table Saw 255mm - Power Tool 04 Diagram

Description

Model No. 2704

Table Saw 255mm

Power Tool 04 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
246	MK911344-2 Available to backorder	Pan Head Screw M6x25 Wg	£0.74 £0.62
247	MK317865-6 Available to backorder	Angle Rule Block	£18.78 £15.65
248	MK266364-4 Available to backorder	Round Head Square Neck Bolt M8	£0.74 £0.62
249	MK345522-6 Available to backorder	Angle Rule Guide	£1.60 £1.33
250	MK256769-6 Available to backorder	Pin 6	£0.86 £0.72
251	MK317872-9 Available to backorder	Angle Rail	£15.02 £12.52
252	MK266378-3 Available to backorder	Hex. Socket Set Screw (Cup Point)	£0.48 £0.40
253	MK345523-4 Available to backorder	Angle Stopper	£1.16 £0.97
254	MK324530-0 Available to backorder	Scale Pin	£1.44 £1.20
255	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr	£0.48 £0.40
256	MK931102-0 Available to backorder	Hex. Nut M4	£0.58 £0.48
257	MK252650-9 Available to backorder	Thumb Nut M8	£1.16 £0.97
258	MK273524-1 Available to backorder	Grip 28	£37.56 £31.30
258	MK273527-5 Available to backorder	Grip 28 (Alt.)	£44.64 £37.20
259	MK922333-2 Available to backorder	Hex. Socket Head Bolt M6x20 Wr	£0.86 £0.72
260	MK317897-3 Available to backorder	Ruler	£37.56 £31.30
261	MK345521-8 Available to backorder	Ruler Guide	£3.34 £2.78
262	MK317864-8 Available to backorder	Ruler Adapter	£21.96 £18.30
263	MK911108-4 Available to backorder	Pan Head Screw M4x8 Wr	£0.48 £0.40
264	MK418945-2 Available to backorder	Lens	£1.60 £1.33
265	MK418943-6 Available to backorder	Cover	£1.16 £0.97
266	MK317895-7 Available to backorder	Ruler Top Holder	£6.52 £5.43
266	MK816836-5 Available to backorder	Operation Label (C10)	£2.32 £1.93
266	MK154699-4 Available to backorder	Rule Holder Complete x	£44.20 £36.83
267	MK265768-7 Available to backorder	Thumb Screw M6x52	£2.18 £1.82
268	MK418948-6 Available to backorder	Square Guide	£2.18 £1.82
269	MK265954-0 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
270	MK231485-1 Available to backorder	Compression Spring 4	£0.48 £0.40
271	MK418947-8 Available to backorder	Ruler Holder Guide	£7.66 £6.38
273	MK345560-8 Available to backorder	Lock Plate	£2.32 £1.93
274	MK265155-0 Available to backorder	Pan Head Screw M5x25	£0.58 £0.48
275	MK418946-0 Available to backorder	Lever	£2.02 £1.68
276	MK231297-2 Available to backorder	Compression Spring 9	£0.74 £0.62
277	MK418944-4 Available to backorder	Lock Lever	£1.16 £0.97
278	MK253874-0 Available to backorder	Flat Washer 4	£0.48 £0.40
279	MK266020-6 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
280	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
281	MK911238-1 Available to backorder	Pan Head Screw M5x22 Wr	£0.48 £0.40
282	MK345566-6 Available to backorder	Handle Cam	£5.06 £4.22
283	MK345559-3 Available to backorder	Handle Cam Support	£6.06 £5.05
283	MK140D16-8 Available to backorder	Handle Cam Support Complete x (INC. 282 284 285 287-289)	£31.94 £26.62
284	MK256029-6 Available to backorder	Pin 8	£2.02 £1.68
285	MK256200-2 Available to backorder	Pin 5	£0.74 £0.62
286	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr (Refs 298 \| 299)	£0.48 £0.40
287	MK345564-0 Available to backorder	Lock Plate Stay	£3.34 £2.78
289	MK345565-8 Available to backorder	Hook Joint	£3.04 £2.53
290	MK265154-2 Available to backorder	Pan Head Screw M5x655	£7.80 £6.50
291	MK324555-4 Available to backorder	Nut M5	£2.18 £1.82
292	MK256262-0 Available to backorder	Pin 5 (Refs 294 \| 301)	£0.74 £0.62
293	MK345562-4 Available to backorder	Ruler Top Connecter	£2.02 £1.68
295	MK231683-7 Available to backorder	Torsion Spring 8	£0.74 £0.62
296	MK313123-8 Available to backorder	Ruler Top	£3.46 £2.88
297	MK345563-2 Available to backorder	Ruler Top Guide	£5.36 £4.47
300	MK140D15-0 Available to backorder	Ruler Top Support Complete x (INC. 291-295 297 301)	£22.80 £19.00
300	MK345561-6 Available to backorder	Ruler Top Support	£2.32 £1.93
303	MK317874-5 Available to backorder	Angle Rule	£27.74 £23.12
304	MK127069-0 Available to backorder	Angle Rule Assembly (Alt.) (INC. 247-258 303 306-309)	£69.34 £57.78
305	MK122739-6 Available to backorder	Guide Rule Assembly (INC. 259-302 *)	£144.72 £120.60
306	MK265160-7 Available to backorder	Countersunk Head Screw M4x8	£0.58 £0.48
308	MK267305-3 Available to backorder	Flat Washer 5/16"	£0.58 £0.48
309	MK419219-4 Available to backorder	Angle Rule Cover	£1.60 £1.33
310	MK257262-3 Available to backorder	Ring 16	£1.16 £0.97
311	MK262559-7 Available to backorder	Sleeve 14	£0.58 £0.48
312	MK345536-5 Available to backorder	Base Under Cover	£27.74 £23.12
313	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
313	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
314	MK418618-7 Available to backorder	Pin	£2.02 £1.68
316	MK418616-1 Available to backorder	Switch Button On	£2.46 £2.05
317	MK443103-1 Available to backorder	Felt Ring 6	£0.58 £0.48
319	MK231025-5 Available to backorder	Compression Spring 8	£0.48 £0.40
321	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
323	MK418617-9 Available to backorder	Switch Button Off	£2.46 £2.05
324	MK652772-9 Available to backorder	Relay 305.232.01	£54.76 £45.63
325	MK631613-2 Available to backorder	Soft Start Circuit	£23.68 £19.73
326	MK654561-8 Available to backorder	Terminal Block	£1.74 £1.45
327	MK645006-7 Available to backorder	Noise Suppressor	£2.18 £1.82
328	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
329	MK646049-2 Available to backorder	Choke Coil	£1.32 £1.10
330	MK265740-9 Available to backorder	Thumb Screw M5x15 (Refs C11 \| C51)	£5.36 £4.47
331	MK317879-5 Available to backorder	Slide Rod Holder (Refs C10 \| C20)	£4.20 £3.50
332	MK324564-3 Available to backorder	Rear Rod	£5.94 £4.95
333	MK345537-3 Available to backorder	Rear Table	£15.32 £12.77
334	MK911223-4 Available to backorder	Pan Head Screw M5x16 Wr	£0.48 £0.40
334	MK922221-3 Available to backorder	Hex. Socket Head Bolt M5x16 W (Alt.) (Refs C21 \| C51)	£0.58 £0.48
335	MK931502-4 Available to backorder	Hex. Nut M10	£1.16 £0.97
336	MK961016-9 Available to backorder	Stop Ring (Ext) E-10	£0.48 £0.40
337	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
901	MK213023-1 Available to backorder	O-Ring 4 (E01)	£0.48 £0.40
901	MKB-04999 Available to backorder	T.C.T. Saw Blade 260x30x24T x (A01-1)	£44.48 £37.07
902	MK194086-5 Available to backorder	Left Table Set (F02)	£51.06 £42.55
902	MK783222-4 Available to backorder	Hex. Wrench 4 (C80)	£0.88 £0.73
902	MK419093-0 Available to backorder	Joint (A02)	£2.46 £2.05
902	MK324565-1 Available to backorder	Left Rod (C30)	£5.64 £4.70
902	MK345538-1 Available to backorder	Left Table (C40)	£18.12 £15.10
903	MK416772-1 Available to backorder	Push Stick (A03)	£3.52 £2.93
903	MK194087-3 Available to backorder	Rear Table Set (F03)	£55.26 £46.05
904	MK781038-1 Available to backorder	Wrench 19 (A04)	£3.64 £3.03
904	MK194093-8 Available to backorder	Stand Set (F04)	£333.89 £278.24
905	MK782024-5 Available to backorder	Offset Wrench 13-22 (A05)	£3.68 £3.07
906	MK783203-8 Available to backorder	Hex. Wrench 5 (A06)	£0.72 £0.60
