Model No. 2704

Table Saw 255mm

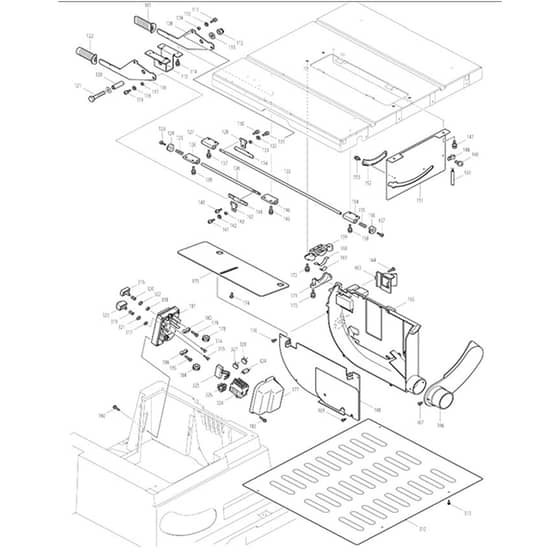

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
106	MK224401-0 Available to backorder	Inner Flange 53	£3.46 £2.88
107	MK273523-3 Available to backorder	Grip	£1.16 £0.97
108	MK345534-9 Available to backorder	Handle Plate	£3.34 £2.78
109	MK257161-9 Available to backorder	Ring 4 (Refs 117 \| 133 \| 143)	£2.46 £2.05
110	MK941051-3 Available to backorder	Flat Washer 4 (Refs 118 \| 132 \| 142)	£0.48 £0.40
111	MK922116-0 Available to backorder	Hex. Socket Head Bolt M4x12 W (Refs 119 \| 130 \| 131 \| 140 \| 141)	£0.58 £0.48
112	MK252130-5 Available to backorder	Hex. Lock Nut M10-17	£1.60 £1.33
113	MK941251-5 Available to backorder	Flat Washer 10	£0.48 £0.40
114	MK911223-4 Available to backorder	Pan Head Screw M5x16 Wr	£0.48 £0.40
115	MK345539-9 Available to backorder	Handle Plate Holder	£2.60 £2.17
120	MK257753-4 Available to backorder	Sleeve 10	£0.74 £0.62
121	MK265536-8 Available to backorder	Hex. Head Bolt M16x65	£3.62 £3.02
123	MK265382-9 Available to backorder	Hex. Socket Head Bolt M5x20	£0.86 £0.72
124	MK324559-6 Available to backorder	Hook Ring	£0.86 £0.72
125	MK233229-5 Available to backorder	Compression Spring 8	£0.74 £0.62
126	MK418655-1 Available to backorder	Rod Holder (Refs 127 \| 146 \| 154)	£1.60 £1.33
128	MK345535-7 Available to backorder	Joint Plate	£0.58 £0.48
134	MK324675-4 Available to backorder	Rod Joint S	£1.74 £1.45
135	MK324673-8 Available to backorder	Rod R S	£2.18 £1.82
135	MK324557-0 Available to backorder	Rod R	£2.32 £1.93
136	MK324674-6 Available to backorder	Rod F S	£3.76 £3.13
136	MK324558-8 Available to backorder	Rod F	£2.02 £1.68
137	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr (Refs 138 \| 145 \| 158)	£0.47 £0.39
147	MK911323-0 Available to backorder	Pan Head Screw M6x16 Wr	£0.58 £0.48
148	MK687049-3 Available to backorder	Strain Relief	£0.48 £0.40
149	MK251308-7 Available to backorder	Pan Head Screw M4x10 (Refs 192 \| 218)	£0.48 £0.40
151	MK345628-0 Available to backorder	Plate	£5.36 £4.47
152	MK416333-7 Available to backorder	Rack Plate	£2.02 £1.68
153	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr	£0.48 £0.40
159	MK318020-3 Available to backorder	Adjust Block <	£3.04 £2.53
159	MK317010-3 Available to backorder	Adjust Block	£8.54 £7.12
160	MK344529-9 Available to backorder	Slide Seat	£0.74 £0.62
161	MK232174-1 Available to backorder	Leaf Spring	£0.86 £0.72
163	MK416439-1 Available to backorder	Dust Guide	£1.44 £1.20
164	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
165	MK318253-0 Available to backorder	Frame (Alt.)	£40.16 £33.47
166	MK418917-7 Available to backorder	Dust Joint	£2.46 £2.05
167	MK266061-2 Available to backorder	Binding Head Tapping Screw 4x8	£0.48 £0.40
168	MK154599-8 Available to backorder	Frame Cover Complete	£18.78 £15.65
169	MK911114-9 Available to backorder	Pan Head Screw M4x10 Wg	£0.48 £0.40
170	MK911333-7 Available to backorder	Pan Head Screw M6x20 Wr	£0.74 £0.62
171	MK416332-9 Available to backorder	Frame Retainer	£3.04 £2.53
172	MK265460-5 Available to backorder	Hex. Head Bolt M6x20	£0.48 £0.40
174	MK266300-0 Available to backorder	Binding Head Tapping Screw 4x1	£1.16 £0.97
175	MK413097-4 Available to backorder	Slide Cover	£10.56 £8.80
176	MK266035-3 Available to backorder	Binding Head Tapping Screw 5x1	£0.48 £0.40
177	MK418918-5 Available to backorder	Switch Box	£4.04 £3.37
178	MK682103-8 Available to backorder	Grommet <	£0.54 £0.45
178	MK682511-3 Available to backorder	Grommet	£0.58 £0.48
179	MK265A48-7 Available to backorder	Tapping Screw 4x18 (Alt.) (Refs 183 \| 185 \| 230)	£0.48 £0.40
179	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x1 (Refs 183 \| 185 \| 230)	£0.48 £0.40
180	MK687054-0 Available to backorder	Strain Relief	£0.74 £0.62
181	MK418912-7 Available to backorder	Switch Base	£6.06 £5.05
186	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
190	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x1 (Refs 223 \| 313)	£0.48 £0.40
190	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x1 (Refs 223 \| 313)	£0.48 £0.40
191	MK816844-6 Available to backorder	Inner Scale Plate	£1.60 £1.33
193	MK911253-5 Available to backorder	Pan Head Screw M5x30 Wr	£0.58 £0.48
194	MK418908-8 Available to backorder	Inner Rail End	£1.74 £1.45
195	MK922146-1 Available to backorder	Hex. Socket Head Bolt M4x25 W	£0.58 £0.48
196	MK154705-5 Available to backorder	Front Outer Rail Complete	£18.78 £15.65
196	MK816843-8 Available to backorder	Outer Scale Plate (C10)	£1.74 £1.45
199	MK317877-9 Available to backorder	Sub Table	£67.02 £55.85
200	MK317876-1 Available to backorder	Table	£222.94 £185.78
201	MK922126-7 Available to backorder	Hex. Socket Head Bolt M4x16 W	£0.54 £0.45
202	MK158104-3 Available to backorder	Front Inner Rail Complete <	£50.72 £42.27
203	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr (Refs 215 \| 337)	£0.48 £0.40
206	MK418907-0 Available to backorder	Outer Rail End	£1.74 £1.45
207	MK265045-7 Available to backorder	Pan Head Screw M5x18	£0.58 £0.48
208	MK126901-5 Available to backorder	Center Cover Assembly (Alt.) (INC. 211 212)	£21.98 £18.32
211	MK319717-7 Available to backorder	Center Cover (Alt.)	£15.88 £13.23
212	MK266264-8 Available to backorder	Hex. Socket Set Screw (Flat Point)	£0.74 £0.62
216	MK317867-2 Available to backorder	Rear Outer Rail	£19.64 £16.37
217	MK345529-2 Available to backorder	Rail Stopper	£0.58 £0.48
221	MK158103-5 Available to backorder	Rear Inner Rail Complete <	£49.12 £40.93
222	MK345533-1 Available to backorder	Base Front Cover	£7.96 £6.63
223	MK266020-6 Available to backorder	Binding Head Tapping Screw 4x1 (Refs 279 \| 313)	£0.48 £0.40
228	MK286212-1 Available to backorder	Cap 20	£0.58 £0.48
229	MK810107-2 Available to backorder	Caution Label (C10)	£4.62 £3.85
229	MK819176-0 Available to backorder	Makita Logo Plate (C20)	£2.60 £2.17
229	MK154608-3 Available to backorder	Base Complete	£114.68 £95.57
232	MK682504-0 Available to backorder	Cord Guard 10-85 (Alt.)	£2.32 £1.93
232	MK682516-3 Available to backorder	Cord Guard 9.3-85	£1.16 £0.97
234	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
235	MK271318-8 Available to backorder	Knob 37	£1.60 £1.33
236	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
237	MK921342-8 Available to backorder	Hex. Head Bolt M6x25	£0.74 £0.62
238	MK271320-1 Available to backorder	Knob 37	£3.46 £2.88
239	MK252197-3 Available to backorder	Hex. Nut M14	£2.02 £1.68
240	MK421926-7 Available to backorder	Holder	£4.04 £3.37
241	MK931402-8 Available to backorder	Hex. Nut M8	£0.58 £0.48
242	MK253797-2 Available to backorder	Flat Washer 14	£0.58 £0.48
243	MK265537-6 Available to backorder	Hex. Head Bolt M14x65	£8.24 £6.87
244	MK921462-8 Available to backorder	Hex. Head Bolt M8x40	£0.58 £0.48
245	MK861373-4 Available to backorder	Name Plate 2704	£0.74 £0.62
246	MK911344-2 Available to backorder	Pan Head Screw M6x25 Wg	£0.74 £0.62
247	MK317865-6 Available to backorder	Angle Rule Block	£18.78 £15.65
248	MK266364-4 Available to backorder	Round Head Square Neck Bolt M8	£0.74 £0.62
249	MK345522-6 Available to backorder	Angle Rule Guide	£1.60 £1.33
250	MK256769-6 Available to backorder	Pin 6	£0.86 £0.72
251	MK317872-9 Available to backorder	Angle Rail	£15.02 £12.52
252	MK266378-3 Available to backorder	Hex. Socket Set Screw (Cup Point)	£0.48 £0.40
253	MK345523-4 Available to backorder	Angle Stopper	£1.16 £0.97
254	MK324530-0 Available to backorder	Scale Pin	£1.44 £1.20
255	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr	£0.48 £0.40
256	MK931102-0 Available to backorder	Hex. Nut M4	£0.58 £0.48
257	MK252650-9 Available to backorder	Thumb Nut M8	£1.16 £0.97
258	MK273524-1 Available to backorder	Grip 28	£37.56 £31.30
258	MK273527-5 Available to backorder	Grip 28 (Alt.)	£44.64 £37.20
259	MK922333-2 Available to backorder	Hex. Socket Head Bolt M6x20 Wr	£0.86 £0.72
260	MK317897-3 Available to backorder	Ruler	£37.56 £31.30
261	MK345521-8 Available to backorder	Ruler Guide	£3.34 £2.78
262	MK317864-8 Available to backorder	Ruler Adapter	£21.96 £18.30
263	MK911108-4 Available to backorder	Pan Head Screw M4x8 Wr	£0.48 £0.40
264	MK418945-2 Available to backorder	Lens	£1.60 £1.33
265	MK418943-6 Available to backorder	Cover	£1.16 £0.97
266	MK816836-5 Available to backorder	Operation Label (C10)	£2.32 £1.93
266	MK154699-4 Available to backorder	Rule Holder Complete x	£44.20 £36.83
266	MK317895-7 Available to backorder	Ruler Top Holder	£6.52 £5.43
267	MK265768-7 Available to backorder	Thumb Screw M6x52	£2.18 £1.82
268	MK418948-6 Available to backorder	Square Guide	£2.18 £1.82
269	MK265954-0 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
270	MK231485-1 Available to backorder	Compression Spring 4	£0.48 £0.40
271	MK418947-8 Available to backorder	Ruler Holder Guide	£7.66 £6.38
273	MK345560-8 Available to backorder	Lock Plate	£2.32 £1.93
274	MK265155-0 Available to backorder	Pan Head Screw M5x25	£0.58 £0.48
275	MK418946-0 Available to backorder	Lever	£2.02 £1.68
276	MK231297-2 Available to backorder	Compression Spring 9	£0.74 £0.62
277	MK418944-4 Available to backorder	Lock Lever	£1.16 £0.97
278	MK253874-0 Available to backorder	Flat Washer 4	£0.48 £0.40
280	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
281	MK911238-1 Available to backorder	Pan Head Screw M5x22 Wr	£0.48 £0.40
282	MK345566-6 Available to backorder	Handle Cam	£5.06 £4.22
283	MK345559-3 Available to backorder	Handle Cam Support	£6.06 £5.05
283	MK140D16-8 Available to backorder	Handle Cam Support Complete x (INC. 282 284 285 287-289)	£31.94 £26.62
284	MK256029-6 Available to backorder	Pin 8	£2.02 £1.68
285	MK256200-2 Available to backorder	Pin 5	£0.74 £0.62
286	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr (Refs 298 \| 299)	£0.48 £0.40
287	MK345564-0 Available to backorder	Lock Plate Stay	£3.34 £2.78
289	MK345565-8 Available to backorder	Hook Joint	£3.04 £2.53
290	MK265154-2 Available to backorder	Pan Head Screw M5x655	£7.80 £6.50
291	MK324555-4 Available to backorder	Nut M5	£2.18 £1.82
292	MK256262-0 Available to backorder	Pin 5 (Refs 294 \| 301)	£0.74 £0.62
293	MK345562-4 Available to backorder	Ruler Top Connecter	£2.02 £1.68
295	MK231683-7 Available to backorder	Torsion Spring 8	£0.74 £0.62
296	MK313123-8 Available to backorder	Ruler Top	£3.46 £2.88
297	MK345563-2 Available to backorder	Ruler Top Guide	£5.36 £4.47
300	MK140D15-0 Available to backorder	Ruler Top Support Complete x (INC. 291-295 297 301)	£22.80 £19.00
300	MK345561-6 Available to backorder	Ruler Top Support	£2.32 £1.93
303	MK317874-5 Available to backorder	Angle Rule	£27.74 £23.12
304	MK127069-0 Available to backorder	Angle Rule Assembly (Alt.) (INC. 247-258 303 306-309)	£69.34 £57.78
305	MK122739-6 Available to backorder	Guide Rule Assembly (INC. 259-302 *)	£144.72 £120.60
306	MK265160-7 Available to backorder	Countersunk Head Screw M4x8	£0.58 £0.48
308	MK267305-3 Available to backorder	Flat Washer 5/16"	£0.58 £0.48
309	MK419219-4 Available to backorder	Angle Rule Cover	£1.60 £1.33
310	MK257262-3 Available to backorder	Ring 16	£1.16 £0.97
311	MK262559-7 Available to backorder	Sleeve 14	£0.58 £0.48
312	MK345536-5 Available to backorder	Base Under Cover	£27.74 £23.12
314	MK418618-7 Available to backorder	Pin	£2.02 £1.68
316	MK418616-1 Available to backorder	Switch Button On	£2.46 £2.05
317	MK443103-1 Available to backorder	Felt Ring 6	£0.58 £0.48
319	MK231025-5 Available to backorder	Compression Spring 8	£0.48 £0.40
321	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
323	MK418617-9 Available to backorder	Switch Button Off	£2.46 £2.05
324	MK652772-9 Available to backorder	Relay 305.232.01	£54.76 £45.63
325	MK631613-2 Available to backorder	Soft Start Circuit	£23.68 £19.73
326	MK654561-8 Available to backorder	Terminal Block	£1.74 £1.45
327	MK645006-7 Available to backorder	Noise Suppressor	£2.18 £1.82
328	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
329	MK646049-2 Available to backorder	Choke Coil	£1.32 £1.10
330	MK265740-9 Available to backorder	Thumb Screw M5x15 (Refs C11 \| C51)	£5.36 £4.47
331	MK317879-5 Available to backorder	Slide Rod Holder (Refs C10 \| C20)	£4.20 £3.50
332	MK324564-3 Available to backorder	Rear Rod	£5.94 £4.95
333	MK345537-3 Available to backorder	Rear Table	£15.32 £12.77
334	MK922221-3 Available to backorder	Hex. Socket Head Bolt M5x16 W (Alt.) (Refs C21 \| C51)	£0.58 £0.48
335	MK931502-4 Available to backorder	Hex. Nut M10	£1.16 £0.97
336	MK961016-9 Available to backorder	Stop Ring (Ext) E-10	£0.48 £0.40
901	MKB-04999 Available to backorder	T.C.T. Saw Blade 260x30x24T x (A01-1)	£44.48 £37.07
901	MK213023-1 Available to backorder	O-Ring 4 (E01)	£0.48 £0.40
902	MK419093-0 Available to backorder	Joint (A02)	£2.46 £2.05
902	MK194086-5 Available to backorder	Left Table Set (F02)	£51.06 £42.55
902	MK345538-1 Available to backorder	Left Table (C40)	£18.12 £15.10
902	MK783222-4 Available to backorder	Hex. Wrench 4 (C80)	£0.88 £0.73
902	MK324565-1 Available to backorder	Left Rod (C30)	£5.64 £4.70
903	MK194087-3 Available to backorder	Rear Table Set (F03)	£55.26 £46.05
903	MK416772-1 Available to backorder	Push Stick (A03)	£3.52 £2.93
904	MK194093-8 Available to backorder	Stand Set (F04)	£333.89 £278.24
904	MK781038-1 Available to backorder	Wrench 19 (A04)	£3.64 £3.03
905	MK782024-5 Available to backorder	Offset Wrench 13-22 (A05)	£3.68 £3.07
906	MK783203-8 Available to backorder	Hex. Wrench 5 (A06)	£0.72 £0.60

Makita 2704 - Table Saw 255mm - Power Tool 02 Diagram

Description

Description

Reviews

Compatibility

Product Questions

Recommended for you

Recently viewed products

Makita 2704 - Table Saw 255mm - Power Tool 02 Diagram

Description

Description

Reviews

Compatibility

Product Questions

Related Products

Customers also bought

Recommended for you

Recently viewed products
