Makita 2414B - Portable Cut-Off 355mm - Power Tool 01 Diagram

Description

Model No. 2414B

Portable Cut-Off 355mm

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
3	MK251680-7 Available to backorder	Hex. Bolt M10x25	£2.60 £2.17
4	MK224299-5 Available to backorder	Flange 90 <	£18.78 £15.65
5	MK911333-7 Available to backorder	Pan Head Screw M6x20	£0.74 £0.62
6	MK265121-7 Available to backorder	+ Flat Head Screw M6 <	£0.74 £0.62
7	MK213162-7 Available to backorder	O Ring 14 (Alt.)	£0.74 £0.62
8	MK257185-5 Available to backorder	Ring 17	£3.04 £2.53
11	MK165126-6 Available to backorder	Safety Cover (Alt.)	£40.16 £33.47
12	MK211256-2 Available to backorder	Ball Bearing 6203Llb	£11.56 £9.63
13	MK316527-3 Available to backorder	Bearing Box	£16.34 £13.62
14	MK226415-5 Available to backorder	Helical Gear 41	£31.06 £25.88
15	MK322633-4 Available to backorder	Spindle	£21.96 £18.30
16	MK211064-1 Available to backorder	Ball Bearing 6000	£2.18 £1.82
17	MK182628-7 Available to backorder	Handle Set	£53.16 £44.30
19	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
20	MK231397-8 Available to backorder	Compression Spring 4	£0.48 £0.40
21	MK411478-6 In stock	Switch Button	£1.16 £0.97
21	MK417113-4 Available to backorder	Switch Button <	£1.02 £0.85
22	MK281216-8 Available to backorder	Hanger (Alt.)	£0.48 £0.40
22	MK281207-9 Available to backorder	Hanger	£1.44 £1.20
23	MK256012-3 Available to backorder	Pin 6	£0.82 £0.68
25	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
26	MK911273-9 Available to backorder	Pan Head Screw M5x50	£0.70 £0.58
27	MK152463-7 Available to backorder	Switch Lever Complete	£5.36 £4.47
28	MK415366-9 Available to backorder	Switch Lock	£1.32 £1.10
29	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
29	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
31	MK687063-9 Available to backorder	Cord Clamp	£0.48 £0.40
31	MK687052-4 Available to backorder	Strain Relief x	£0.74 £0.62
33	MK322049-3 Available to backorder	Hook	£0.58 £0.48
34	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
35	MK322665-1 Available to backorder	Stopper	£2.46 £2.05
36	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
37	MK150916-0 Available to backorder	Gear Housing Complete (Alt.)	£145.76 £121.47
38	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.62 £3.02
38	MK211228-7 Available to backorder	Ball Bearing 6202Ddw x	£9.40 £7.83
39	MK241515-0 Available to backorder	Fan 92 (C11)	£1.60 £1.33
39	MK267714-6 Available to backorder	Washer 15	£1.16 £0.97
41	MK681633-6 Available to backorder	Insulation Washer	£0.58 £0.48
42	MK210042-8 Available to backorder	Ball Bearing 629Llb (Alt.)	£3.04 £2.53
43	MK415369-3 Available to backorder	Baffle Plate	£3.04 £2.53
44	MK911944-8 Available to backorder	Pan Head Screw M5x80	£1.88 £1.57
44	MK266059-9 Available to backorder	Tapping Screw 5x75 x	£1.32 £1.10
46	MK159750-5 Available to backorder	Motor Housing Complete S	£99.82 £83.18
46	MK632486-6 Available to backorder	Support Unit (C20)	£5.94 £4.95
46	MK643707-1 Available to backorder	Brush Holder (Alt.) (C11)	£5.06 £4.22
46	MK643705-5 Available to backorder	Brush Holder (C10)	£11.88 £9.90

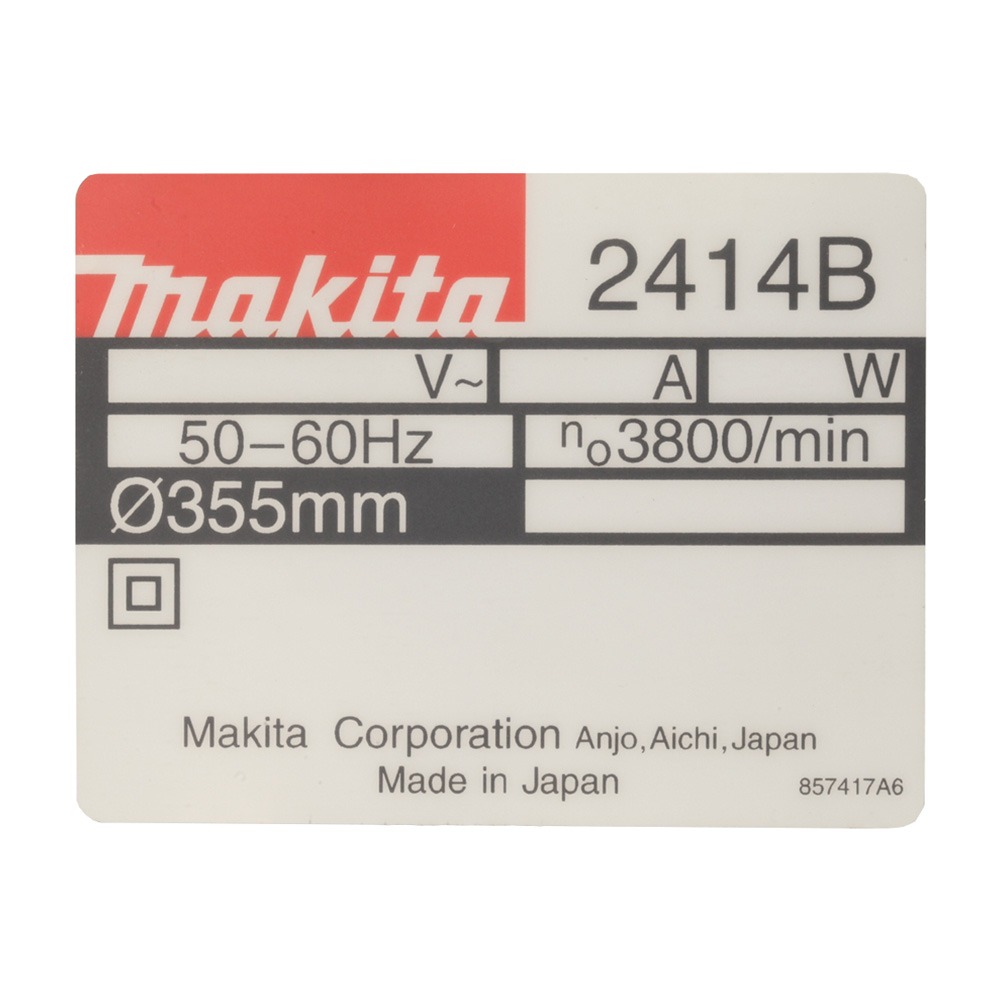

48	MK857417-6 In stock	Name Plate 2414B	£1.32 £1.10
49	MK194991-6 In stock	Carbon Brush Set Cb203 (Alt.)	£4.56 £3.80
50	MK643700-5 Available to backorder	Brush Holder Cap 7-18	£0.86 £0.72
900	MK168320-9 Available to backorder	Safety Guide (Alt.)	£44.20 £36.83
901	MK782210-8 Available to backorder	Socket Wrench 17 (A01)	£5.94 £4.95
905	MK688131-1 Available to backorder	Line Filter (Alt.) (E05-1)	£0.58 £0.48
909	MK415661-7 Available to backorder	Plug (E09)	£0.86 £0.72
911	MK345292-7 Available to backorder	Under Cover (E11)	£11.72 £9.77
912	MK265985-9 Available to backorder	Hex.Socket Head Bolt M6 (E12)	£3.04 £2.53
913	MK924306-1 Available to backorder	Wing Bolt M6x10 (E13)	£1.44 £1.20
