Makita 2414 - Cut-Off 355mm - Power Tool Diagram

Description

Model No. 2414

Cut-Off 355mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK911148-2 Available to backorder	Pan Head Screw M4x25 (Refs 002 \| 005)	£0.48 £0.40
3	MK911273-9 Available to backorder	Pan Head Screw M5x50	£0.70 £0.58
4	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.58 £0.48
6	MK182751-8 Available to backorder	Handle Set S	£20.38 £16.98
7	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
7	MK265995-6 Available to backorder	Tapping Screw 4x18 x	£0.48 £0.40
8	MK687001-1 Available to backorder	Strain Relief	£0.48 £0.40
8	MK687052-4 Available to backorder	Strain Relief x	£0.74 £0.62
9	MK682507-4 Available to backorder	Cord Guard 12-200	£2.32 £1.93
11	MK911334-5 Available to backorder	Pan Head Screw M6x20	£0.48 £0.40
12	MK322049-3 Available to backorder	Hook	£0.58 £0.48
13	MK924206-5 Available to backorder	Wing Bolt M5x10	£1.02 £0.85
14	MK942101-7 Available to backorder	Spring Washer 5	£0.48 £0.40
15	MK341395-5 Available to backorder	Stopper Plate	£0.58 £0.48
16	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
19	MK253011-6 Available to backorder	Flat Washer 6	£0.48 £0.40
20	MK282013-5 Available to backorder	Chain	£3.16 £2.63
21	MK265380-3 Available to backorder	Hex. Bolt M6x18	£3.62 £3.02
22	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
23	MK859380-9 Available to backorder	Name Plate 2414 x	£1.10 £0.92
24	MK284010-7 Available to backorder	Rear Cover	£1.32 £1.10
25	MK651018-0 Available to backorder	Switch Hpahr2-3S	£10.98 £9.15
26	MK911211-1 In stock	Pan Head Screw M5x12	£0.48 £0.40
28	MK911103-4 Available to backorder	Pan Head Screw M4x6	£0.48 £0.40
29	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
30	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.74 £0.62
31	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.24 £3.53
32	MK643653-8 Available to backorder	Brush Holder 6.5-13.5 (C10)	£3.46 £2.88
32	MK156409-5 Available to backorder	Motor Housing x	£255.47 £212.89
32	MK913206-0 Available to backorder	Set Screw M5x8 (C20)	£0.48 £0.40
33	MK681002-1 Available to backorder	Insulation Washer	£0.58 £0.48
34	MK343299-7 Available to backorder	Baffle Plate	£1.32 £1.10
35	MK211066-7 Available to backorder	Ball Bearing 6200Llb	£5.48 £4.57
36	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
36	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
36	MK213051-6 Available to backorder	Dust Seal 10	£0.86 £0.72
38	MK911938-3 Available to backorder	Pan Head Screw M5x85	£1.60 £1.33
40	MK241515-0 Available to backorder	Fan 92	£1.60 £1.33
41	MK213202-1 Available to backorder	Dust Seal 15	£0.86 £0.72
42	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.62 £3.02
43	MK150053-0 Available to backorder	Safety Cover Complete	£71.06 £59.22
44	MK325517-5 Available to backorder	Spindle S	£13.44 £11.20
45	MK254032-1 Available to backorder	Woodruff Key 5	£1.32 £1.10
46	MK211306-3 Available to backorder	Ball Bearing 6204Llb	£11.26 £9.38
47	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
49	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
50	MK325518-3 Available to backorder	Stopper	£1.32 £1.10
51	MK213460-9 Available to backorder	O Ring 35 (Alt.)	£2.02 £1.68
52	MK157331-9 Available to backorder	Gear Housing	£32.80 £27.33
53	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
54	MK961060-6 Available to backorder	Retaining Ring S-20	£0.58 £0.48
55	MK221628-3 Available to backorder	Helical Gear 54	£17.92 £14.93
56	MK157026-4 Available to backorder	Bearing Housing	£11.84 £9.87
57	MK253755-8 Available to backorder	Flat Washer 20	£1.32 £1.10
58	MK911276-3 Available to backorder	Pan Head Screw M5x55	£0.74 £0.62
59	MK224141-0 Available to backorder	Inner Flange 120	£11.56 £9.63
60	MK257054-0 Available to backorder	Ring 20	£2.32 £1.93
61	MK224142-8 Available to backorder	Outer Flange 120	£11.56 £9.63
62	MK251680-7 Available to backorder	Hex. Bolt M10x25	£2.60 £2.17
63	MK253751-6 Available to backorder	Flat Washer 24	£0.48 £0.40
64	MK251683-1 Available to backorder	Hex. Bolt M8x40	£1.60 £1.33
65	MK942201-3 Available to backorder	Spring Washer 8 (Refs 068 \| 085)	£0.48 £0.40
66	MK345141-8 Available to backorder	Pipe Cover (L)	£3.76 £3.13
69	MK345142-6 Available to backorder	Pipe Cover (R)	£3.76 £3.13
71	MK331087-4 Available to backorder	Pipe 24	£14.16 £11.80
74	MK265201-9 Available to backorder	Hex. Bolt M10x25	£0.58 £0.48
76	MK345145-0 Available to backorder	Guide Plate	£10.26 £8.55
77	MK911349-2 Available to backorder	Pan Head Screw M6x28	£0.86 £0.72
79	MK421277-8 Available to backorder	Cushion	£1.60 £1.33
81	MK272014-1 Available to backorder	Handle 130	£5.36 £4.47
81	MK272021-4 Available to backorder	Handle 120 x	£1.60 £1.33
82	MK951163-4 Available to backorder	Spring Pin 5-20 x	£0.48 £0.40
82	MK951169-2 Available to backorder	Spring Pin 5-28	£0.58 £0.48
83	MK132385-7 Available to backorder	Base Ass'y	£83.48 £69.57
84	MK931402-8 Available to backorder	Hex. Nut M8	£0.58 £0.48
86	MK253752-4 Available to backorder	Flat Washer 8	£0.86 £0.72
87	MK232047-8 Available to backorder	Leaf Spring	£0.74 £0.62
89	MK911316-7 Available to backorder	Pan Head Screw M6x14	£0.48 £0.40
90	MK342495-4 Available to backorder	Vise Plate	£3.34 £2.78
91	MK251679-2 Available to backorder	Hex. Bolt M8	£0.74 £0.62
92	MK342497-0 Available to backorder	Screw Cover	£2.02 £1.68
93	MK253052-2 Available to backorder	Flat Washer 12	£0.58 £0.48
93	MK253731-2 Available to backorder	Flat Washer 8 x	£0.48 £0.40
94	MK342496-2 Available to backorder	Connector	£1.32 £1.10

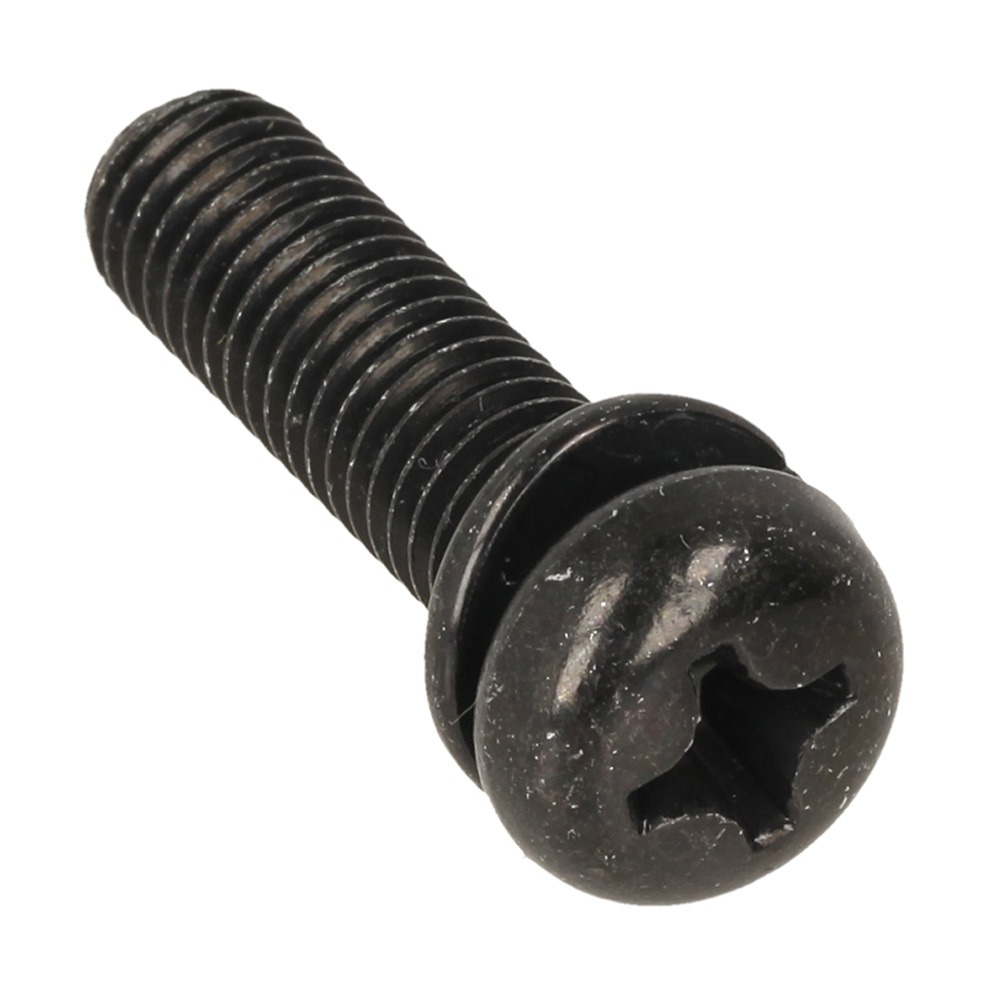

95	MK911451-1 In stock	Pan Head Screw M8x30	£0.86 £0.72
96	MK253744-3 Available to backorder	Flat Washer 12	£0.58 £0.48
97	MK311949-2 Available to backorder	Screw Guide (Alt.)	£10.12 £8.43
97	MK311402-8 Available to backorder	Vise Nut	£8.08 £6.73
98	MK951066-2 Available to backorder	Spring Pin 3-18 x	£0.48 £0.40
98	MK951116-3 Available to backorder	Spring Pin 4-20	£0.48 £0.40
99	MK322239-8 Available to backorder	Vice Screw x	£11.72 £9.77
99	MK323689-0 Available to backorder	Vise Screw	£7.80 £6.50
100	MK961012-7 Available to backorder	Stop Ring E-6	£0.48 £0.40
101	MK271607-1 Available to backorder	Knob 20	£0.58 £0.48
102	MK256614-5 Available to backorder	Pin 8	£0.58 £0.48
104	MK322209-7 Available to backorder	Vice Nut	£9.54 £7.95
105	MK819064-1 Available to backorder	Makita Mark	£1.74 £1.45
106	MK213218-6 Available to backorder	O Ring 16 (Alt.)	£0.74 £0.62
400	MK782210-8 Available to backorder	Socket Wrench 17	£5.94 £4.95
