Makita 1806B - Power Planer - Power Tool Diagram

Description

Model No. 1806B

Power Planer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
3	MK682505-8 Available to backorder	Cord Guard 10 (Alt.)	£1.32 £1.10
3	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
4	MK911158-9 Available to backorder	Pan Head Screw M4x30 Wr	£0.48 £0.40
5	MK911300-2 Available to backorder	Pan Head Screw M5x75 Wm	£1.32 £1.10
6	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr	£0.48 £0.40
7	MK181151-9 Available to backorder	Handle Set (INC. 62)	£11.72 £9.77
8	MK911253-5 Available to backorder	Pan Head Screw M5x30 Wr	£0.58 £0.48
9	MK913206-0 Available to backorder	Hex. Socket Set Screw (Cup Point) (C20)	£0.48 £0.40
9	MK643653-8 Available to backorder	Brush Holder 6.5x13.5 (C10)	£3.46 £2.88
9	MK156414-2 Available to backorder	Motor Housing Complete	£45.94 £38.28
10	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
11	MK687031-2 Available to backorder	Strain Relief	£0.58 £0.48
12	MK911103-4 Available to backorder	Pan Head Screw M4x6 Wr	£0.48 £0.40
13	MK651045-7 Available to backorder	Switch Hpahc2-35S x	£32.80 £27.33
14	MK911228-4 Available to backorder	Pan Head Screw M5x18 Wr	£1.64 £1.37
15	MK281007-7 Available to backorder	Holder	£0.58 £0.48
16	MK911324-8 Available to backorder	Pan Head Screw M6x16 Wg	£0.58 £0.48
17	MK854895-1 Available to backorder	Name Plate 1806B	£3.46 £2.88
18	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
19	MK271249-1 Available to backorder	Knob 64	£7.22 £6.02
20	MK253004-3 Available to backorder	Flat Washer 13	£0.48 £0.40
22	MK316966-7 Available to backorder	Chip Cover	£11.84 £9.87
22	MK414499-7 Available to backorder	Nozzle <	£2.96 £2.47
23	MK911206-4 Available to backorder	Pan Head Screw M5x10 W (Refs 025 \| 061)	£0.48 £0.40
24	MK285004-5 Available to backorder	Bearing Cover 38 x	£2.02 £1.68
24	MK285011-8 Available to backorder	Bearing Cover 38	£0.86 £0.72
24	MK285022-3 Available to backorder	Bearing Cover 38 (Alt.)	£2.60 £2.17
26	MK157163-4 Available to backorder	Main Frame Complete	£202.67 £168.89
26	MK816366-6 Available to backorder	Scale Label S (C11)	£3.16 £2.63
26	MK816405-2 Available to backorder	Scale Plate (C10)	£1.92 £1.60
26	MK159943-4 Available to backorder	Main Frame Complete (Alt.)	£351.31 £292.76
27	MK423094-2 Available to backorder	Rubber Packing	£3.46 £2.88
28	MK231233-8 Available to backorder	Compression Spring 24	£2.02 £1.68
29	MK316917-0 Available to backorder	Front Base (Alt.)	£87.90 £73.25
29	MK315575-9 Available to backorder	Front Base	£61.24 £51.03
30	MK265484-1 Available to backorder	Hex. Socket Button Head Bolt M6	£0.74 £0.62
31	MK187675-3 Available to backorder	Drum Plate Set (Alt.)	£30.48 £25.40
32	MK341376-9 Available to backorder	Washer 10	£0.48 £0.40
34	MK211067-5 Available to backorder	Ball Bearing 6200Zz	£8.38 £6.98
35	MK266012-5 Available to backorder	Binding Head Tapping Screw 5x3	£0.74 £0.62
35	MK911256-9 Available to backorder	Pan Head Screw M5x35 W	£0.48 £0.40
36	MK643650-4 Available to backorder	Holder Cap 6.5-13.5	£0.74 £0.62
37	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.24 £3.53
38	MK251212-0 Available to backorder	Flat Head Screw M5x13	£0.48 £0.40
39	MK161132-9 Available to backorder	Drum x	£88.40 £73.67
40	MK341377-7 Available to backorder	Washer 12	£0.86 £0.72
41	MK211107-9 Available to backorder	Ball Bearing 6201Zz	£8.38 £6.98
41	MK654020-2 Available to backorder	Ring Terminal 36L (C10)	£0.74 £0.62
41	MK654502-4 Available to backorder	Non-Insulated Splice (C20)	£0.58 £0.48
42	MK523025-2 Available to backorder	Field Assembly 220V	£49.42 £41.18
44	MK211061-7 Available to backorder	Ball Bearing 6000Llb (Alt.)	£8.08 £6.73
44	MK211063-3 Available to backorder	Ball Bearing 6000Lb	£9.98 £8.32
45	MK681635-2 Available to backorder	Insulation Washer x	£0.58 £0.48
46	MK513388-4 Available to backorder	Armature Assembly 220V	£103.14 £85.95
47	MK241013-4 Available to backorder	Fan 80	£3.34 £2.78

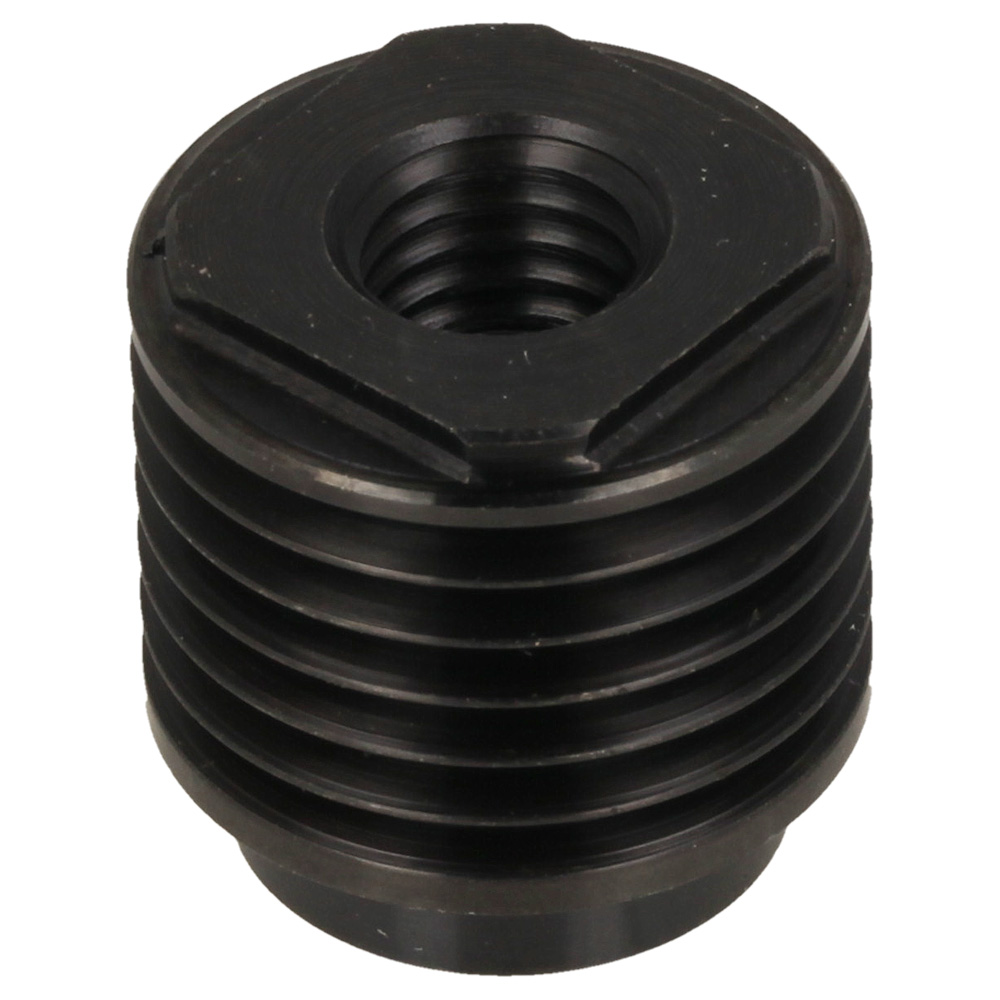

48	MK222007-8 Available to backorder	V-Pulley 6-23L	£4.40 £3.67
49	MK911263-2 Available to backorder	Pan Head Screw M5x40 Wr	£0.58 £0.48
50	MK152214-8 Available to backorder	Bracket Complete (INC. 55)	£10.12 £8.43
51	MK341384-0 Available to backorder	Washer 26	£0.48 £0.40
52	MK211106-1 Available to backorder	Ball Bearing 6201Llb	£8.66 £7.22
53	MK213102-5 Available to backorder	Dust Seal 12	£0.74 £0.62
54	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
56	MK157024-8 Available to backorder	Drum Housing Complete (INC. 54 *)	£23.68 £19.73
56	MK159942-6 Available to backorder	Drum Housing Complete (Alt.) (INC. 54)	£22.66 £18.88
57	MK911121-2 Available to backorder	Pan Head Screw M4x14 W	£0.48 £0.40

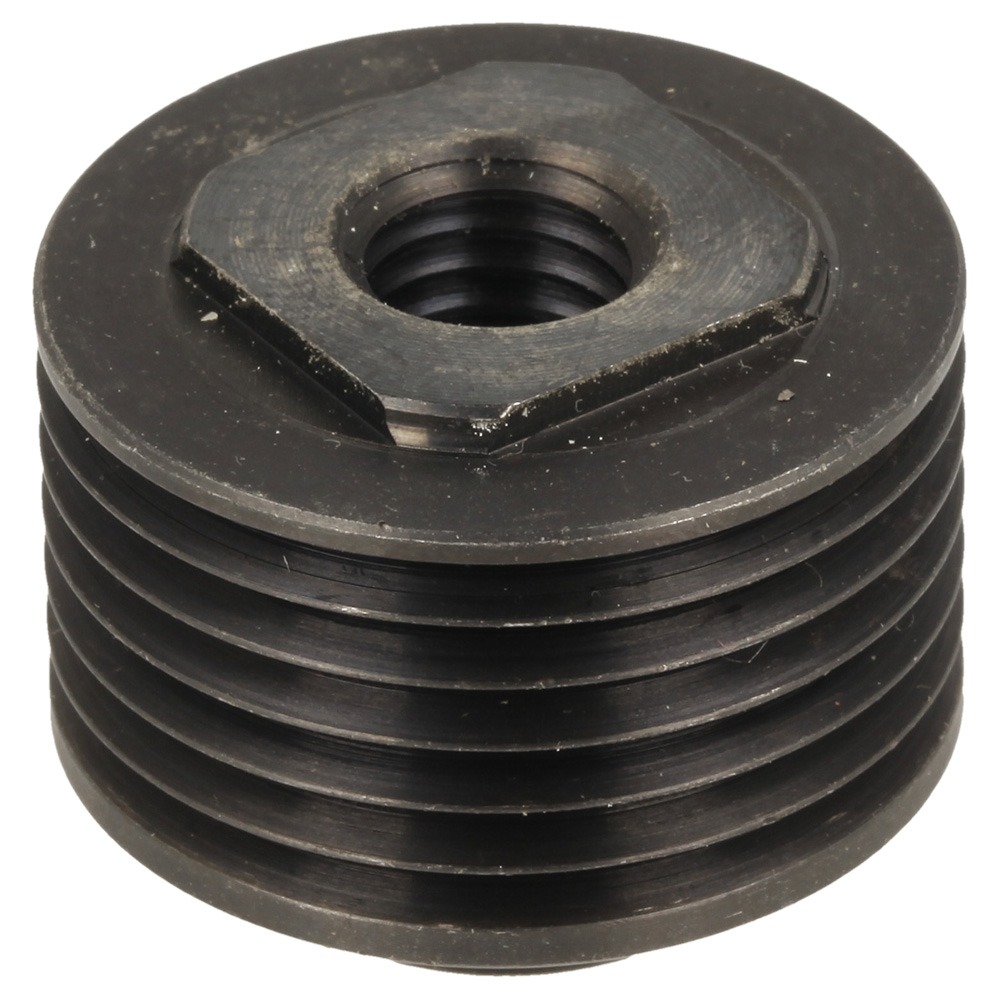

58	MK222006-0 Available to backorder	V-Pulley 6-30	£6.16 £5.13
59	MK225042-5 Available to backorder	Poly V-Belt 6-304	£14.16 £11.80
60	MK343301-6 Available to backorder	Belt Cover	£3.34 £2.78
60	MK347B54-1 Available to backorder	Belt Cover (Alt.)	£26.20 £21.83
63	MK421490-8 Available to backorder	Rubber Ring 26 S	£6.94 £5.78
64	MK266211-9 Available to backorder	Binding Head Tapping Screw 5x4	£0.74 £0.62
400	MK762001-3 Available to backorder	Triangular Rule	£1.22 £1.02
401	MK934201-7 Available to backorder	Wing Nut M5	£0.74 £0.62
402	MK123053-3 Available to backorder	Guide Rule Assembly (INC. 401 403)	£21.66 £18.05
403	MK923211-9 Available to backorder	Round Head Square Neck Bolt M5x12	£0.58 £0.48
404	MKD-63666 Available to backorder	Hss Planer Blade 170mm <	£42.78 £35.65
405	MK783202-0 Available to backorder	Hex. Wrench 4	£1.88 £1.57
408	MK123006-2 Available to backorder	Sharpening Holder Assembly	£10.06 £8.38
409	MK821134-4 Available to backorder	Wooden Case	£149.34 £124.45
