Makita 1100 - Power Planer 82mm - Power Tool Diagram

Description

Model No. 1100

Power Planer 82mm

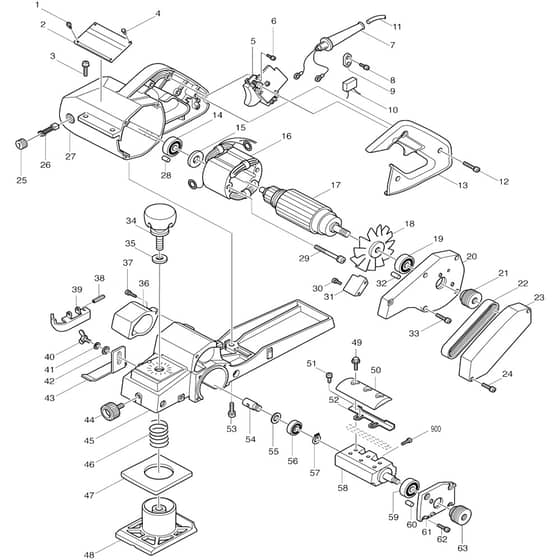

Power Tool Parts Diagrams

	Part No.	Details
1	MK911001-2 Available to backorder	Pan Head Screw M3X6	£0.48 £0.40
2	MK811751-8 Available to backorder	Name Plate 1100	£2.53 £2.11
3	MK911228-4 Available to backorder	Pan Head Screw M5X18 (Refs 053 \| 407)	£1.79 £1.49
4	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
5	MK651023-7 Available to backorder	Switch Hpah2-2S	£10.32 £8.60
5	MK651034-2 Available to backorder	Switch Hpahc-2-25S X	£26.16 £21.80
6	MK911101-8 Available to backorder	Pan Head Screw M4X6	£0.48 £0.40
7	MK682504-0 Available to backorder	Cord Guard 10-85 (Alt.)	£2.53 £2.11
7	MK682516-3 Available to backorder	Cord Guard 9.3-85	£1.39 £1.16
8	MK911133-5 Available to backorder	Pan Head Screw M4X18	£0.48 £0.40
9	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
10	MK645105-5 Available to backorder	Noise Suppressor	£2.38 £1.98
12	MK911153-9 Available to backorder	Pan Head Screw M4X28	£0.48 £0.40
13	MK415435-6 Available to backorder	Handle Cover	£8.52 £7.10
13	MK411632-2 Available to backorder	Handle Cover X	£6.48 £5.40
14	MK211068-3 Available to backorder	Ball Bearing 6200Lb	£7.44 £6.20
15	MK654019-7 Available to backorder	Ring Terminal (C10)	£0.70 £0.58
15	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
15	MK681623-9 Available to backorder	Insulation Washer	£0.89 £0.74
18	MK241001-1 Available to backorder	Fan 80	£6.48 £5.40
19	MK211066-7 Available to backorder	Ball Bearing 6200Llb	£5.64 £4.70
20	MK312246-9 Available to backorder	Bracket (Alt.)	£22.68 £18.90
21	MK222002-8 Available to backorder	V-Pulley 5-26.5L	£6.12 £5.10
22	MK225001-9 Available to backorder	Poly V-Belt 5-285	£12.12 £10.10
23	MK411004-1 Available to backorder	Belt Cover	£4.80 £4.00
24	MK911148-2 Available to backorder	Pan Head Screw M4X25	£0.48 £0.40
25	MK643600-9 Available to backorder	Brush Holder Cap 6-10	£0.89 £0.74
26	MK194974-6 Available to backorder	Carbon Brush Set Cb-100 (Alt.)	£3.12 £2.60
27	MK159529-4 Available to backorder	Motor Housing (Inc. 28)	£47.52 £39.60
27	MK643603-3 Available to backorder	Brush Holder 6-10 (C10)	£3.48 £2.90
27	MK643609-1 Available to backorder	Brush Holder 6-10 (Alt.) (C11)	£3.96 £3.30
28	MK263013-4 Available to backorder	Rubber Pin 4	£0.70 £0.58
29	MK911290-9 Available to backorder	Pan Head Screw M5X65	£1.39 £1.16
31	MK342148-5 Available to backorder	Baffle Cover	£0.70 £0.58
32	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
33	MK911146-6 Available to backorder	Pan Head Screw M4X25	£0.48 £0.40
34	MK271226-3 Available to backorder	Knob 50	£4.80 £4.00
35	MK941251-5 Available to backorder	Flat Washer 10	£0.48 £0.40
36	MK415452-6 Available to backorder	Chip Cover	£4.32 £3.60
37	MK911138-5 Available to backorder	P.H.Screw M4X20 With Wr	£0.48 £0.40
38	MK951131-7 Available to backorder	Spring Pin 4-40	£0.48 £0.40
39	MK343849-8 Available to backorder	Drum Cover	£12.00 £10.00
40	MK924206-5 Available to backorder	Wing Bolt M5X10	£1.22 £1.02
41	MK942101-7 Available to backorder	Spring Washer 5	£0.48 £0.40
42	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
43	MK342001-5 Available to backorder	Depth Guide	£2.21 £1.84
44	MK251804-5 Available to backorder	Screw M6X13	£0.89 £0.74
45	MK816333-1 Available to backorder	Scale Label (C11)	£1.66 £1.38
45	MK156510-6 Available to backorder	Main Frame	£119.52 £99.60
46	MK231001-9 Available to backorder	Compression Spring 17	£1.39 £1.16
47	MK421001-9 Available to backorder	Rubber Packing	£2.53 £2.11
48	MK312002-7 Available to backorder	Front Base	£35.52 £29.60
49	MK251609-3 Available to backorder	Hex. Flange Head Bolt M6X17	£0.70 £0.58
50	MK187676-1 Available to backorder	Drum Plate Set (Alt.)	£15.96 £13.30
51	MK251246-3 Available to backorder	+ Pan Head Screw M4X5	£0.48 £0.40
53	MK911226-8 Available to backorder	Pan Head Screw M5X18	£0.48 £0.40
54	MK323001-4 Available to backorder	Drum Rear Shaft	£3.60 £3.00
55	MK253139-0 Available to backorder	Flat Washer 8	£0.48 £0.40
56	MK210223-4 Available to backorder	Ball Bearing 608Zz (Alt.)	£2.83 £2.36
56	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.64 £7.20
57	MK961004-6 Available to backorder	Retaining Ring (Ext) S-8	£0.48 £0.40
58	MK161048-8 Available to backorder	Drum	£48.96 £40.80
59	MK211107-9 Available to backorder	Ball Bearing 6201Zz	£8.64 £7.20
60	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
61	MK157022-2 Available to backorder	Drum Housing (Inc. 60 *)	£9.48 £7.90
62	MK911121-2 Available to backorder	Pan Head Screw M4X14	£0.48 £0.40
63	MK222001-0 Available to backorder	V-Pulley 5-29.4	£6.12 £5.10
404	MK161046-2 Available to backorder	Guide Rule	£35.52 £29.60
406	MK411086-3 Available to backorder	Gauge Plate	£1.39 £1.16
408	MK123062-2 Available to backorder	Blade Gauge Ass'Y (Inc. 406 407)	£9.48 £7.90
410	MK782209-3 Available to backorder	Socket Wrench 9	£3.60 £3.00
412	MKD-07945 Available to backorder	82Mm Tct Mini Planer Blade (Alt.)	£22.56 £18.80
902	MK231600-7 Available to backorder	Torsion Spring 4	£2.53 £2.11
905	MK343433-9 Available to backorder	Set Plate F/Mini Blade	£3.84 £3.20
909	MK193540-6 Available to backorder	Set Plate 82 Set (F09)	£11.52 £9.60
