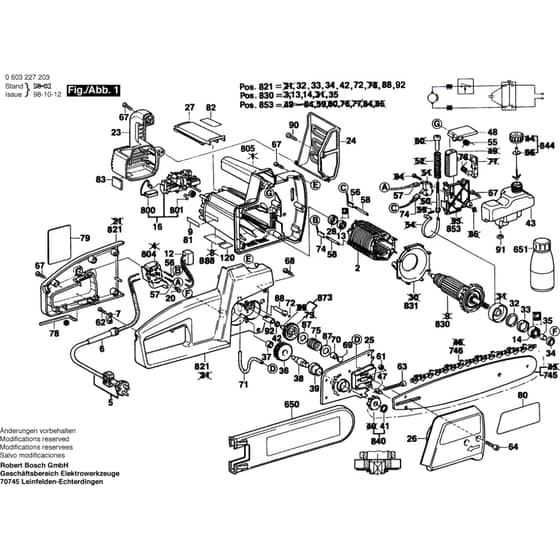

Main Assembly

Name: Main Assembly
SKU: PKE_40_B_Main_Assembly_0_603_227_242_240_V-group
Price: 0.98 GBP
Availability: InStock

Part No. PKE_40_B_Main_Assembly_0_603_227_242_240_V-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Genuine Bosch PKE_40_B_Main_Assembly_0_603_227_242_240_V-group

	Part No.	Details
2	BQ1604220354 Available to backorder	Field 220-230V	£52.74 £43.95
7	BQ2601035001 Available to backorder	Cable Clip	£1.78 £1.48
9	BQ1601110483 Available to backorder	Manufacturer'S Nameplate	£3.19 £2.66
12	BQ1607328028 Available to backorder	Suppression Filter	£6.48 £5.40
13	BQ2600905032 Available to backorder	Ball Bearing 7X19X6	£6.48 £5.40
14	BQ1900905025 Available to backorder	Ball Bearing 9X26X8	£28.03 £23.36
20	BQ2603410001 Available to backorder	Socket Head Cap Screw M3X6.5-4.8	£1.39 £1.16
25	BQ3605500082 Available to backorder	Gear Cover	£17.57 £14.64
28	BQ1600502011 Available to backorder	Intermediate Ring	£3.19 £2.66
33	BQ1600206026 Available to backorder	Intermediate Ring	£1.78 £1.48
34	BQ1600290016 Available to backorder	Rotary Shaft Lip Seal	£3.19 £2.66
37	BQ1600910018 Available to backorder	Needle Bearing Ø8Xø12X8 mm	£6.48 £5.40
41	BQ2916650003 Available to backorder	Spring Retaining Ring Din 471-12X1-Fst	£1.78 £1.48
42	BQ1600283003 Available to backorder	Rotary Shaft Lip Seal	£5.20 £4.33
55	BQ3604651002 Available to backorder	Coiled Spring	£1.46 £1.22
58	BQ1604477005 Available to backorder	Blade Terminal	£3.19 £2.66
64	BQ2910141203 Available to backorder	Hex Socket Head Cap Screw Din 912- M6X25-8.8	£1.78 £1.48
72	BQ1903230007 Available to backorder	Ball Din 5401-4 mm-Iii-St	£1.78 £1.48
78	BQ2610364015 Available to backorder	Hexagon Socket Screw Key 5 mm	£4.55 £3.79
87	BQ1600101023 Available to backorder	Plain Washer 0.5 mm Thick	£1.78 £1.48
90	BQ2910211006 Available to backorder	Tapping Screw Din 7971-Bz2.9X13	£1.18 £0.98
92	BQ3600301007 Available to backorder	Sintered-Metal Bushing 14 mm	£4.55 £3.79
746	OR91PXL057E Available to backorder	Chain 16"	£17.11 £14.26
800	BQ1607014129 Available to backorder	Carbon-Brush Set	£19.72 £16.43
804	BQ1607000231 Available to backorder	On-Oﬀ Sitch	£24.71 £20.59
821	BQ3605190163 Available to backorder	Housing Section Green	£73.08 £60.90
888	BQ160111A3H3 Available to backorder	Nameplate	£3.19 £2.66
