Main Assembly

Main Assembly
Main Assembly

Description

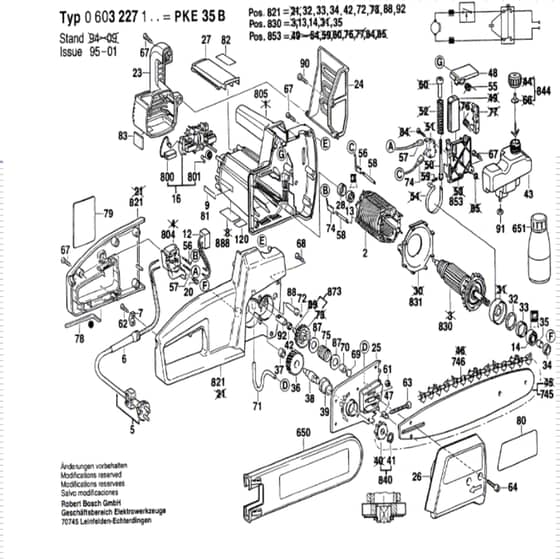

Genuine Bosch PKE_35_B_Main_Assembly_0_603_227_142_240_V-group
Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Field 240V BQ1604220356
Field 240V
 Out of stock
£40.72 £33.93

  6 Grommet Ø7.6-Ø8.2X95 mm BQ2600703013
Grommet Ø7.6-Ø8.2X95 mm
 Out of stock
£3.17 £2.64

  7 Cable Clip BQ2601035001
Cable Clip
 Out of stock
£1.76 £1.47

  9 Manufacturer'S Nameplate BQ1601110483
Manufacturer'S Nameplate
 Out of stock
£3.17 £2.64

  12 Suppression Filter BQ1607328028
Suppression Filter
 Out of stock
£5.38 £4.48

  13 Ball Bearing 7X19X6 BQ2600905032
Ball Bearing 7X19X6
 Out of stock
£6.43 £5.36

  14 Ball Bearing 9X26X8 BQ1900905025
Ball Bearing 9X26X8
 Out of stock
£27.89 £23.24

  20 Socket Head Cap Screw M3X6.5-4.8 BQ2603410001
Socket Head Cap Screw M3X6.5-4.8
 Out of stock
£1.76 £1.47

  25 Gear Cover BQ3605500082
Gear Cover
 Out of stock
£17.47 £14.56

  28 Intermediate Ring BQ1600502011
Intermediate Ring
 Out of stock
£3.17 £2.64

  33 Intermediate Ring BQ1600206026
Intermediate Ring
 Out of stock
£1.76 £1.47

  34 Rotary Shaft Lip Seal BQ1600290016
Rotary Shaft Lip Seal
 Out of stock
£3.17 £2.64

  37 Needle Bearing Ø8Xø12X8 mm BQ1600910018
Needle Bearing Ø8Xø12X8 mm
 Out of stock
£6.43 £5.36

  39 Sintered-Metal Bushing L16G7X22R6X16Din1850 BQ1900322047
Sintered-Metal Bushing L16G7X22R6X16Din1850
 Out of stock
£3.41 £2.84

  41 Spring Retaining Ring Din 471-12X1-Fst BQ2916650003
Spring Retaining Ring Din 471-12X1-Fst
 Out of stock
£1.76 £1.47

  42 Rotary Shaft Lip Seal BQ1600283003
Rotary Shaft Lip Seal
 Out of stock
£5.17 £4.31

  55 Coiled Spring BQ3604651002
Coiled Spring
 Out of stock
£1.45 £1.21

  58 Blade Terminal BQ1604477005
Blade Terminal
 Out of stock
£2.36 £1.97

  64 Hex Socket Head Cap Screw Din 912- M6X25-8.8 BQ2910141203
Hex Socket Head Cap Screw Din 912- M6X25-8.8
 Out of stock
£1.76 £1.47

  72 Ball Din 5401-4 mm-Iii-St BQ1903230007
Ball Din 5401-4 mm-Iii-St
 Out of stock
£1.76 £1.47

  78 Hexagon Socket Screw Key 5 mm BQ2610364015
Hexagon Socket Screw Key 5 mm
 Out of stock
£4.52 £3.77

  87 Plain Washer 0.5 mm Thick BQ1600101023
Plain Washer 0.5 mm Thick
 Out of stock
£1.76 £1.47

  90 Tapping Screw Din 7971-Bz2.9X13 BQ2910211006
Tapping Screw Din 7971-Bz2.9X13
 Out of stock
£1.18 £0.98

  90 Microencapsulated Screw Din 84- Am4X12-8.8 BQ2914552107
Microencapsulated Screw Din 84- Am4X12-8.8
 Out of stock
£1.18 £0.98

  800 Carbon-Brush Set BQ1607014129
Carbon-Brush Set
 Out of stock
£20.70 £17.25

  804 On-Off Sitch BQ1607000231
On-Off Sitch
 Out of stock
£23.46 £19.55

  821 Housing Section Green BQ3605190163
Housing Section Green
 Out of stock
£72.72 £60.60

  888 Nameplate BQ160111A3H3
Nameplate
 Out of stock
£3.17 £2.64


Description
Genuine Bosch PKE_35_B_Main_Assembly_0_603_227_142_240_V-group
