Main Assembly

Name: Main Assembly
SKU: AKE_4017_S_Main_Assembly_0_600_836_242_230_V-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Genuine Bosch AKE_4017_S_Main_Assembly_0_600_836_242_230_V-group

Be the first to review this product

0 product questions

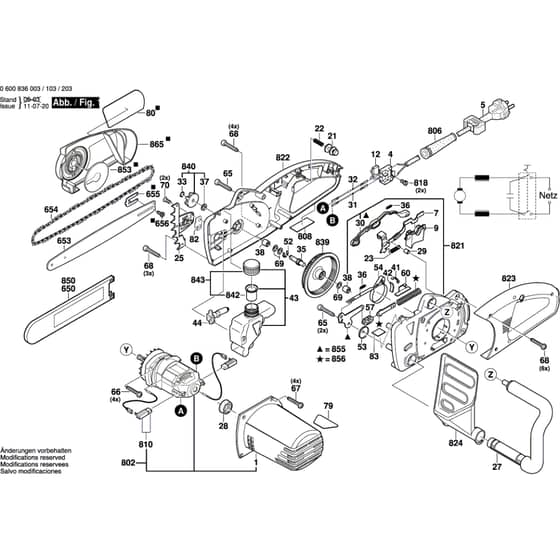

	Part No.	Details
1	BQ1605190228 Available to backorder	Motor Housing	£7.70 £6.42
5	BQ1604460253 Available to backorder	Power Supply Cord Gb 230V 4.15M 2 X 1.0mm H07 Rn-F	£13.34 £11.12
7	BQ1602002008 Available to backorder	Lever	£7.70 £6.42
9	BQ1603231020 Available to backorder	Push-Button	£2.56 £2.13
12	BQ2609004863 Available to backorder	Suppression Capacitor	£4.40 £3.67
21	BQ1600390019 Available to backorder	Locking Bolt	£1.72 £1.43
22	BQ1604617008 Available to backorder	Compression Spring	£1.18 £0.98
23	BQ1604617009 Available to backorder	Compression Spring	£1.14 £0.95
25	BQ1601098008 Available to backorder	Spiked Bumper	£6.60 £5.50
27	BQ1605133045 Available to backorder	Handle	£18.78 £15.65
28	BQ1600206038 Available to backorder	Intermediate Ring	£1.72 £1.43
29	BQ1600300096 Available to backorder	Bushing	£1.72 £1.43
30	BQ1602319022 Available to backorder	Pusher	£4.40 £3.67
31	BQ1604431003 Available to backorder	Connecting Cable	£2.56 £2.13
32	BQ1604431004 Available to backorder	Connecting Cable	£3.08 £2.57
33	BQ2916650001 Available to backorder	Spring Retaining Ring Din 471-10X1mm-Fst	£3.08 £2.57
35	BQ1606100039 Available to backorder	Shaft	£18.78 £15.65
36	BQ1604650016 Available to backorder	Extension Spring	£1.14 £0.95
37	BQ1600205037 Available to backorder	Felt Washer	£1.14 £0.95
38	BQ2600917006 Available to backorder	Needle Bearing	£4.40 £3.67
41	BQ1601329038 Available to backorder	Guide Plate	£2.72 £2.27
42	BQ1600026004 Available to backorder	Brake Shoe	£9.78 £8.15
43	BQ1605405004 Available to backorder	Oil Reservoir	£20.66 £17.22
44	BQ1605437003 Available to backorder	Oil Pump	£20.66 £17.22
52	BQ2916080012 Available to backorder	Locking Washer Din 6799-9-Fst	£1.72 £1.43
53	BQ1600328030 Available to backorder	Collar Disc	£1.72 £1.43
54	BQ1604652020 Available to backorder	Brake Band	£6.26 £5.22
57	BQ1600390018 Available to backorder	Lever Carrier	£3.30 £2.75
60	BQ1600590012 Available to backorder	Pressure Plate	£1.72 £1.43
66	BQ2914211528 Available to backorder	Oval-Head Screw 5X22	£1.14 £0.95
67	BQ2914201506 Available to backorder	Oval-Head Screw 4X18 mm.Torx T20	£1.18 £0.98
69	BQ1600100038 Available to backorder	Friction Washer	£1.72 £1.43
70	BQ2910601325 Available to backorder	Tapping Screw 4.2X13	£1.14 £0.95
79	BQ1601118A25 Available to backorder	Reference Plate	£3.08 £2.57
82	BQ1601010009 Available to backorder	Seal Strip	£2.56 £2.13
83	BQ1601118A64 Available to backorder	Sticker	£4.40 £3.67
650	BQ1605510329 Available to backorder	Chain Guard	£11.92 £9.93
655	BQ1601015035 Available to backorder	Adjusting Plate	£6.60 £5.50
656	BQ1603421003 Available to backorder	Countersunk-Head Screw	£1.14 £0.95
806	BQ2609005766 Available to backorder	Grommet	£3.30 £2.75
808	BQ160111A3H3 Available to backorder	Nameplate	£3.08 £2.57
818	BQ2603410001 Available to backorder	Socket Head Cap Screw M3X6.5-4.8	£1.72 £1.43
821	BQ1607000A44 Available to backorder	Housing Section	£18.78 £15.65
822	BQ1607000884 Available to backorder	Housing Section	£76.16 £63.47
823	BQ1605133046 Available to backorder	Handle	£39.58 £32.98
839	BQ1607000A06 Available to backorder	Ring Gear	£27.10 £22.58
840	BQ1607000885 Available to backorder	Sprocket Wheel	£6.60 £5.50
842	BQ1607431000 Available to backorder	Strainer	£6.26 £5.22
843	BQ1607000A47 Available to backorder	Reservoir Cap	£8.16 £6.80
853	BQ1605190190 Available to backorder	Dust-Protection Cover	£3.30 £2.75
855	BQ1607000A41 Available to backorder	Lever Arm	£5.02 £4.18
856	BQ1607000A42 Available to backorder	Spring Guide	£3.30 £2.75
