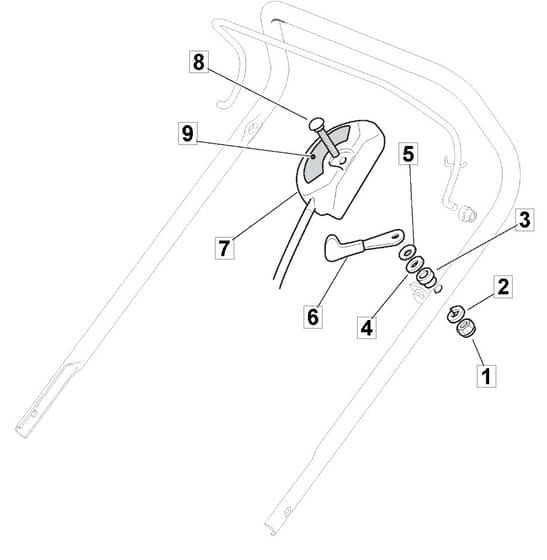

M61 PD - 2007 - 292552043/MO7 - Mountfield Rotary Mower Throttle Diagram

Description

Mountfield M61 PD Parts Diagram

Product Name - M61 PD

Model Year - 2007

Model Type - TU 554 TR

Art.N - 292552043/MO7

Engine Model - SV150

	Part No.	Details
1	MO112291000/0 Available to backorder	Nut	£1.55 £1.29
2	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112521360/0 In stock	Washer	£1.55 £1.29
5	MO112508100/0 Available to backorder	Cup Spring	£1.55 £1.29
6	MO381007220/0 Available to backorder	Throttle Lever SV40-RV 40-V35 Engine . B&S 450-500 Series From 01-9-2006	£32.16 £26.80
7	MO481007080/0 In stock	Throttle Cable	£24.49 £20.41
8	MO112815000/0 Available to backorder	Screw	£1.55 £1.29
9	MO114356702/0 Available to backorder	Throttle Decal	£1.97 £1.64
