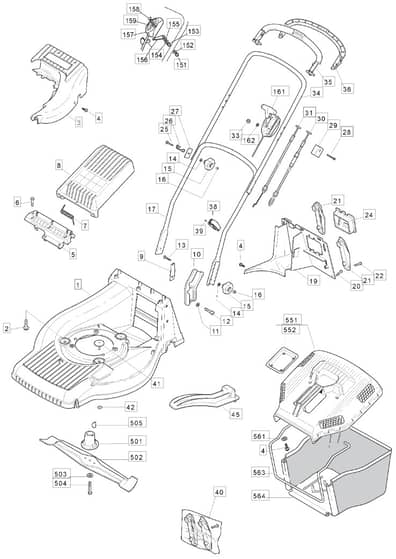

M61 PD - 2006 - 292552043/MOU - Mountfield Rotary Mower Main Assembly Diagram

M61 PD - 2006 - 292552043/MOU - Mountfield Rotary Mower Main Assembly Diagram
M61 PD - 2006 - 292552043/MOU - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield M61 PD Parts Diagram

Product Name - M61 PD

Model Year - 2006

Model Type - TU 554 TR

Art.N - 292552043/MOU

Engine Model - SV150 - RV150

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Screw M60PD MO120001064/0
Screw M60PD
 Out of stock
£9.76 £8.13

  3 Cover (Red) Ral3003 M60PD MO322060155/1
Cover (Red) Ral3003 M60PD
 Out of stock
£18.84 £15.70

  4 Screw M60PD MO112728300/0
Screw M60PD
 Out of stock
£1.49 £1.24

  5 Flap Attachment-Black M60PD MO322785179/0
Flap Attachment-Black M60PD
 Out of stock
£40.07 £33.39

  7 Spring M60PD MO122450430/0
Spring M60PD
 Out of stock
£4.60 £3.83

  8 Stone Guard. Black M60PD MO322600068/2
Stone Guard. Black M60PD
 Out of stock
£11.89 £9.91

  9 Attachment Plate M60PD MO322551635/0
Attachment Plate M60PD
 Out of stock
£3.97 £3.31

  10 Handlebar Attachment M60PD MO322778405/0
Handlebar Attachment M60PD
 Out of stock
£22.99 £19.16

  12 Screw M60PD MO112760515/0
Screw M60PD
 Out of stock
£1.49 £1.24

  14 Washer M60PD MO112521350/0
Washer M60PD
 In stock
£1.63 £1.36

  15 Locking Knob M60PD MO322399810/0
Locking Knob M60PD
 Out of stock
£7.56 £6.30

  16 Nut M60PD MO112361005/0
Nut M60PD
 Out of stock
£4.07 £3.39

  17 Handle-Lower (Black) M60PD MO381006613/0
Handle-Lower (Black) M60PD
 Out of stock
£36.56 £30.47

  19 Rear Attachment (Combi 48-55) M60PD MO322108277/0
Rear Attachment (Combi 48-55) M60PD
 Out of stock
£47.40 £39.50

  20 Screw M60PD MO112735664/0
Screw M60PD
 In stock
£1.49 £1.24

  22 Screw M60PD MO112728692/0
Screw M60PD
 Out of stock
£1.48 £1.23

  24 Battery Holder M60PD MO322109531/0
Battery Holder M60PD
 Out of stock
£48.79 £40.66

  25 Screw M60PD MO112820655/0
Screw M60PD
 Out of stock
£1.49 £1.24

  26 Eyelink M60PD MO122430311/0
Eyelink M60PD
 In stock
£6.24 £5.20

  27 Reinforcement M60PD MO322545137/0
Reinforcement M60PD
 Out of stock
£1.63 £1.36

  28 Screw L . 40 mm _ M61PD MO112727783/0
Screw L . 40 mm _ M61PD
 Out of stock
£1.80 £1.50

  28 Screw L . 60 mm _ M60PD MO112727786/0
Screw L . 60 mm _ M60PD
 Out of stock
£1.90 £1.58

  29 Cable Holder M60PD MO322551685/0
Cable Holder M60PD
 In stock
£6.84 £5.70

  30 Clutch Cable M60PD MO381000697/0
Clutch Cable M60PD
 In stock
£18.48 £15.40

  31 Cable. Thread Engine Brake M61PD MO1111-3556-01
Cable. Thread Engine Brake M61PD
 Out of stock
£22.20 £18.50

  31 Cable. Thread Engine Brake M60PD MO181000687/0
Cable. Thread Engine Brake M60PD
 In stock
£12.24 £10.20

  33 Lock Nut M60PD MO112154510/0
Lock Nut M60PD
 In stock
£1.63 £1.36

  34 Handle-Upper (Black) M60PD MO381006618/1
Handle-Upper (Black) M60PD
 Out of stock
£48.76 £40.63

  35 Control Handle (Eng.Brake M60PD MO381003298/1
Control Handle (Eng.Brake M60PD
 In stock
£29.52 £24.60

  36 Clutch Lever M60PD MO381003297/1
Clutch Lever M60PD
 In stock
£20.16 £16.80

  38 Cable Holder M60PD MO322192001/0
Cable Holder M60PD
 Out of stock
£1.49 £1.24

  39 Screw M60PD MO112728706/0
Screw M60PD
 In stock
£1.63 £1.36

  40 Accessory Bag M60PD MO381008658/1
Accessory Bag M60PD
 Out of stock
£16.79 £13.99

  41 Cap M60PD MO322820057/0
Cap M60PD
 Out of stock
£13.30 £11.08

  42 Locking Washer M60PD MO112604899/0
Locking Washer M60PD
 In stock
£1.63 £1.36

  151 Nut M61PD MO112291000/0
Nut M61PD
 Out of stock
£1.49 £1.24

  152 Grower M61PD MO112581500/0
Grower M61PD
 Out of stock
£1.49 £1.24

  154 Washer M61PD MO112521360/0
Washer M61PD
 In stock
£1.63 £1.36

  155 Spring Washer M61PD MO112508100/0
Spring Washer M61PD
 Out of stock
£1.49 £1.24

  156 Throttle Lever M61PD MO381007279/1
Throttle Lever M61PD
 Out of stock
£1.49 £1.24

  157 Throttle Cable M61PD MO481007080/0
Throttle Cable M61PD
 In stock
£22.32 £18.60

  158 Screw M61PD MO112815000/0
Screw M61PD
 Out of stock
£1.49 £1.24

  161 Throttle Cable M60PD MO181007128/0
Throttle Cable M60PD
 Out of stock
£21.72 £18.10

  162 Washer M60PD MO112523040/0
Washer M60PD
 In stock
£1.63 £1.36

  501 Blade Holder M60PD MO122465618/0
Blade Holder M60PD
 In stock
£8.28 £6.90

  502 Blade M60PD MO181004144/0
Blade M60PD
 Out of stock
£25.80 £21.50

  503 Washer M60PD MO112530140/0
Washer M60PD
 Out of stock
£1.90 £1.58

  504 Screw M60PD MO112735698/0
Screw M60PD
 In stock
£1.75 £1.46

  505 Key M60PD MO112139100/0
Key M60PD
 In stock
£1.63 £1.36

  551 Collector-Upper Part Black M60PD MO322486095/0
Collector-Upper Part Black M60PD
 Out of stock
£54.18 £45.15

  552 Cover M60PD MO322486098/0
Cover M60PD
 Out of stock
£5.42 £4.52

  561 Flat Washer M60PD MO112521460/0
Flat Washer M60PD
 Out of stock
£1.36 £1.13

  563 Wire Clamp M60PD MO122608528/0
Wire Clamp M60PD
 Out of stock
£24.11 £20.09

  564 Collecting Bag MO181002235/0
Collecting Bag
 Out of stock
£58.25 £48.54


Description

Mountfield M61 PD Parts Diagram

Product Name - M61 PD

Model Year - 2006

Model Type - TU 554 TR

Art.N - 292552043/MOU

Engine Model - SV150 - RV150
