M6 SP TRI-CUT - 2004 - 12-9686-79 - Mountfield Rotary Mower Handle Diagram

Name: M6 SP TRI-CUT - 2004 - 12-9686-79 - Mountfield Rotary Mower Handle Diagram
SKU: m6_sp_tri_cut_12_9686_79_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

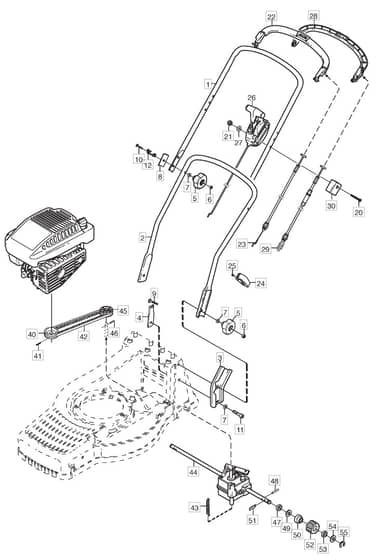

M6 SP TRI-CUT - 2004 - 12-9686-79 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield M6 SP TRI-CUT Parts Diagram

Product Name - M6 SP TRI-CUT

Model Year - 2004

Model Type -

Art.N - 12-9686-79

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006618/1 Available to backorder	Handlebar Upper Part	£50.68 £42.23
2	MO381006613/0 Available to backorder	Handlebar-Lower Part	£36.56 £30.47
3	MO322778405/0 Available to backorder	Handlebar Attachment	£23.89 £19.91
4	MO322551635/0 Available to backorder	Attachment Plate	£4.13 £3.44
5	MO322399810/0 In stock	Locking Knob	£8.29 £6.91
6	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
7	MO9699-0028-02 Available to backorder	Washer	£1.55 £1.29
8	MO322545137/0 Available to backorder	Reinforcement	£1.55 £1.29
9	MO9899-3545-12 Available to backorder	Screw L . 45 mm	£4.63 £3.86
10	MO9899-3557-12 In stock	Screw L . 57 mm	£1.40 £1.17
11	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
12	MO122430311/0 In stock	Eyelink	£6.90 £5.75
20	MO112727783/0 Available to backorder	Screw L . 40 mm	£1.69 £1.41
21	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
22	MO381003298/1 In stock	Control Handle (Eng.Brake	£32.38 £26.98
23	MO181000687/0 In stock	Cable. Thread Engine Brake	£13.37 £11.14
24	MO322192001/0 Available to backorder	Cable Holder	£1.55 £1.29
25	MO112728706/0 In stock	Screw	£1.55 £1.29
28	MO381003297/1 Available to backorder	Clutch Lever	£22.10 £18.42
29	MO381000697/0 In stock	Clutch Cable	£20.28 £16.90
30	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
40	MO122601918/0 Available to backorder	Engine Belt Pulley	£25.00 £20.83
41	MO112714312/0 Available to backorder	Screw	£1.55 £1.29
42	MO135064383/0 In stock	V-Belt	£14.41 £12.01
43	MO122450434/0 In stock	Tension Spring	£6.62 £5.52
44	MO181003086/0 Available to backorder	Transmission Turbo 48.55	£225.24 £187.70
45	MO122601913/0 Available to backorder	Belt Pulley	£16.88 £14.07
46	MO9595-0235-00 Available to backorder	Pin	£2.53 £2.11
47	MO119035152/0 Available to backorder	Seal Ring	£4.78 £3.98
48	MO1111-2382-01 In stock	Pin	£6.90 £5.75
50	MO322170630/1 Available to backorder	Washer	£4.93 £4.11
51	MO122076645/0 Available to backorder	Key	£1.69 £1.41
52	MO122570125/0 In stock	Gear Wheel	£14.10 £11.75
53	MO322160520/0 Available to backorder	Washer	£1.55 £1.29
54	MO112520032/0 Available to backorder	Washer	£1.55 £1.29
55	MO112000957/0 Available to backorder	Circlip - Use 112000957.0	£1.55 £1.29
