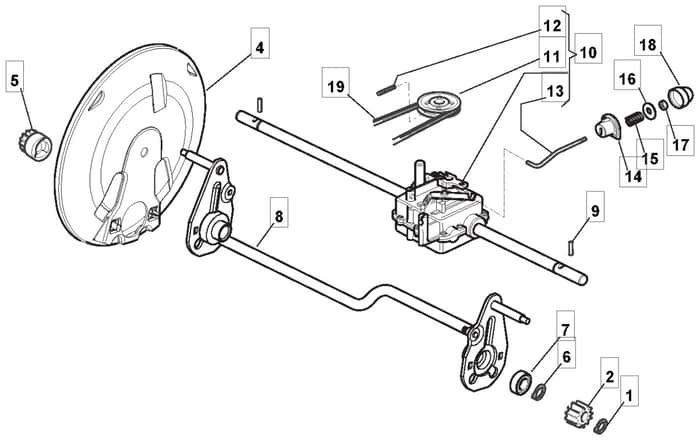

M512 PD 3S BW - 2010 - 292157838/M10 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield M512 PD 3S BW Parts Diagram

Product Name - M512 PD 3S BW

Model Year - 2010

Model Type - NP 534 W TR 3S

Art.N - 292157838/M10

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1	Left Pinion	In stock	£6.72 £5.60
4	MO322600160/0	Protection. Wheel	Out of stock	£5.02 £4.18
5	MO322570138/0	Right Pinion	In stock	£6.72 £5.60
6	MO112608600/0	Seeger	Out of stock	£1.63 £1.36
7	MO119216035/0	Bearing	In stock	£3.24 £2.70
8	MO381002863/0	Rear Wheel Axle	Out of stock	£96.17 £80.14
9	MO122753000/0	Pin	In stock	£1.63 £1.36
10	MO181003080/0	F.R. Gear Box Pan.Np 3 Speed	Out of stock	£352.15 £293.46
11	MO122601908/0	Pulley	Out of stock	£5.42 £4.52
12	MO112645705/0	Elastic Pin ø5X32	Out of stock	£1.63 £1.36
13	MO122033282/1	Adjustment Rod	Out of stock	£6.28 £5.23
14	MO122041957/1	Bushing	Out of stock	£1.49 £1.24
15	MO122450063/0	Spring	Out of stock	£1.49 £1.24
16	MO322680009/0	Washer	Out of stock	£1.75 £1.46
17	MO112154510/0	Nut	In stock	£1.63 £1.36
18	MO122110230/0	Hub Cover	In stock	£1.63 £1.36
19	MO135064197/0	Trapezoidal Belt Z34 Lp 885	Out of stock	£10.67 £8.89
