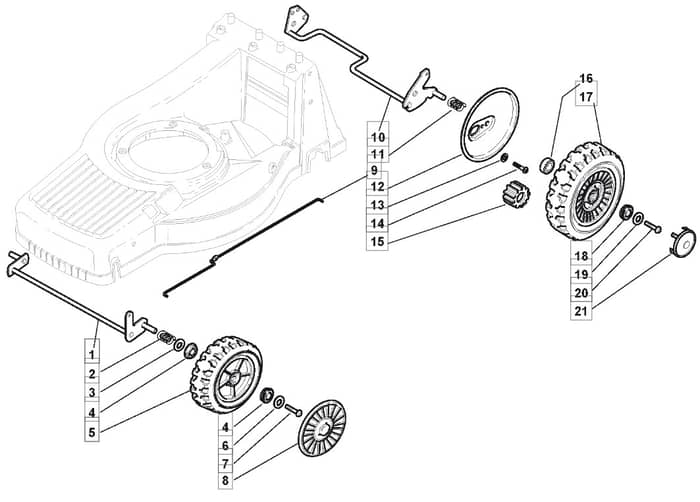

M5020 PD - 2009 - 292502023/M09 - Mountfield Rotary Mower Wheels Diagram

Name: M5020 PD - 2009 - 292502023/M09 - Mountfield Rotary Mower Wheels Diagram
SKU: m5020_pd_292502023_m09_wheels-group
Price: 1.17 GBP
Availability: InStock

Part No. m5020_pd_292502023_m09_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M5020 PD - 2009 - 292502023/M09 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield M5020 PD Parts Diagram

Product Name - M5020 PD

Model Year - 2009

Model Type - TU 504 TR

Art.N - 292502023/M09

	Part No.	Details
2	MO122430210/0 Available to backorder	Bearing	£1.70 £1.42
3	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
4	MO122122206/0 In stock	Bearing	£1.84 £1.53
5	MO381007351/0 In stock	Wheel Ø 170 From 01-9-2006	£13.66 £11.38
5	MO1111-2784-01 In stock	Wheel To 31-8-2006	£18.59 £15.49
8	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
11	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
15	MO122570125/0 In stock	Pinion	£14.64 £12.20
17	MO381007361/0 Available to backorder	Wheel	£21.65 £18.04
18	MO122122201/0 In stock	Bearing	£2.24 £1.87
19	MO112521460/0 Available to backorder	Washer To 31-8-2009	£1.40 £1.17
20	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
21	MO322110384/0 Available to backorder	Hub Cap 190.215 [Grey]	£7.19 £5.99
