M5010 R PD - 2008 - 292505043/M08 - Mountfield Rotary Mower Transmission Diagram

Name: M5010 R PD - 2008 - 292505043/M08 - Mountfield Rotary Mower Transmission Diagram
SKU: m5010_r_pd_292505043_m08_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M5010 R PD - 2008 - 292505043/M08 - Mountfield Rotary Mower Transmission Diagram

Description

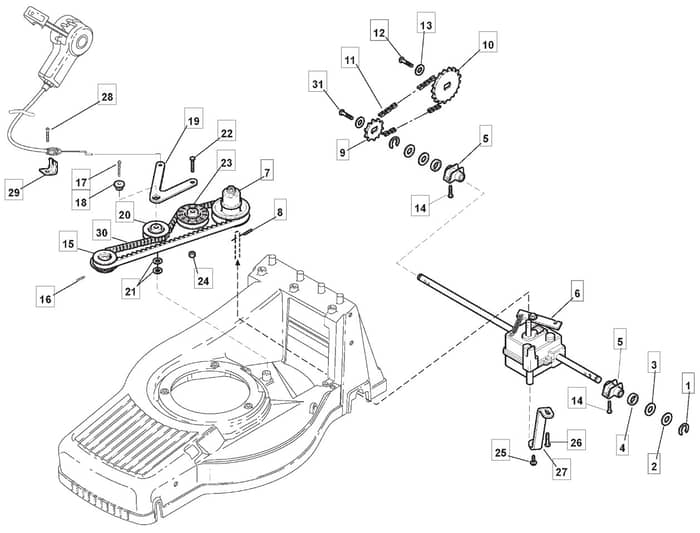

Mountfield M5010 R PD Parts Diagram

Product Name - M5010 R PD

Model Year - 2008

Model Type - TU 504 TR-R 4S

Art.N - 292505043/M08

Engine Model - SV200 Electric Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112000957/0 Available to backorder	Benzing Ring	£1.55 £1.29
1	MO122450063/0 Available to backorder	Spring To 31-8-2006	£1.55 £1.29
2	MO122671659/0 Available to backorder	Washer To 31-8-2014	£1.55 £1.29
2	MO112521370/0 Available to backorder	Washer From 01-9-2014	£1.55 £1.29
3	MO112520032/0 Available to backorder	Washer	£1.55 £1.29
4	MO119035152/0 Available to backorder	Grommet	£4.78 £3.98
5	MO322785153/0 In stock	Gear Box Support	£15.62 £13.02
6	MO181003087/1 Available to backorder	Gear Box F.R.	£239.32 £199.43
7	MO122601932/0 In stock	Pulley From 01-9-2013	£57.43 £47.86
7	MO122601916/0 Available to backorder	Belt Pulley To 31-8-2013	£61.33 £51.11
8	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
9	MO1111-3423-01 Available to backorder	Ring Gear	£14.80 £12.33
10	MO1111-3424-01 Available to backorder	Ring Gear	£18.31 £15.26
11	MO1111-3562-01 In stock	Chain	£20.06 £16.72
12	MO112735662/1 In stock	Screw	£2.40 £2.00
15	MO122601917/0 Available to backorder	Pulley. Crankshaft Ø 22.2	£24.36 £20.30
16	MO112714312/0 Available to backorder	Grub Screw	£1.55 £1.29
17	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
18	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
20	MO122601915/0 In stock	Pulley	£21.40 £17.83
21	MO112523040/0 In stock	Washer	£1.49 £1.24
22	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
23	MO122601914/0 In stock	Pulley	£21.54 £17.95
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
27	MO322778409/0 Available to backorder	Clamp	£14.89 £12.41
28	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
29	MO322806619/0 Available to backorder	Support	£4.66 £3.88
30	MO135064378/0 In stock	Belt	£13.48 £11.23
31	MO112735592/0 Available to backorder	Self-Tap Screw M6 X 20	£1.97 £1.64
