M5010 PD - 2008 - 292502043/M08 - Mountfield Rotary Mower Transmission Diagram

Name: M5010 PD - 2008 - 292502043/M08 - Mountfield Rotary Mower Transmission Diagram
SKU: m5010_pd_292502043_m08_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. m5010_pd_292502043_m08_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

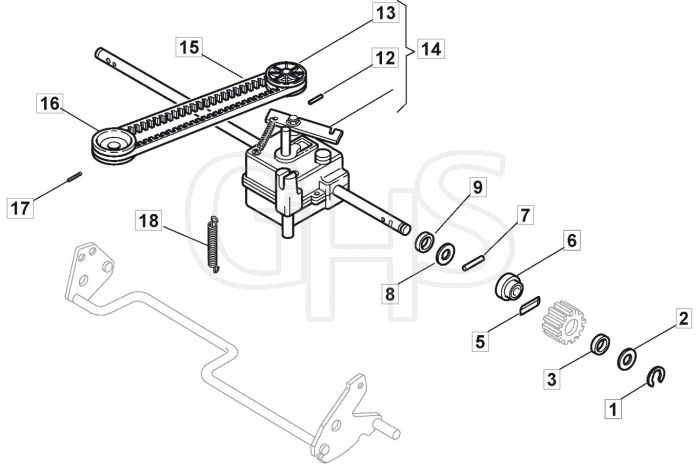

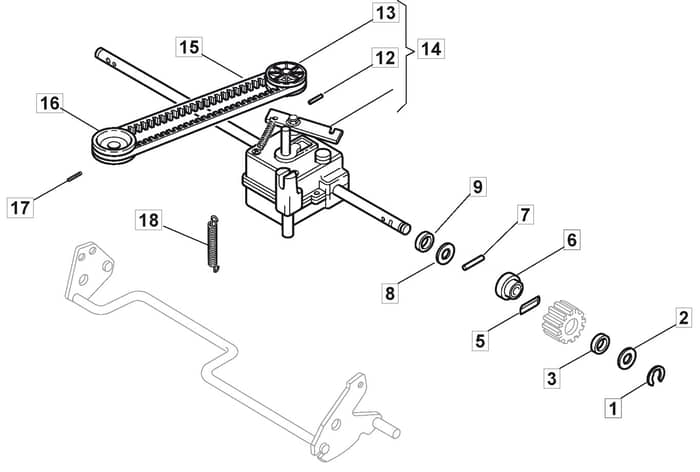

M5010 PD - 2008 - 292502043/M08 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield M5010 PD Parts Diagram

Product Name - M5010 PD

Model Year - 2008

Model Type - TU 504 TR

Art.N - 292502043/M08

Engine Model - SV200

	Part No.	Details
1	MO112000957/0 Available to backorder	Benzing Ring	£1.63 £1.36
1	MO122450063/0 Available to backorder	Spring To 31-8-2006	£1.55 £1.29
3	MO322160520/0 In stock	Dust Cover Disc	£1.55 £1.29
5	MO122076645/0 In stock	Key	£1.70 £1.42
6	MO322170630/1 Available to backorder	Spacer	£4.93 £4.11
7	MO122753002/0 Available to backorder	Pin	£1.97 £1.64
8	MO112520032/0 Available to backorder	Washer	£1.63 £1.36
9	MO119035152/0 Available to backorder	Grommet	£4.78 £3.98
12	MO112620310/0 Available to backorder	Pin	£1.97 £1.64
13	MO122601913/0 Available to backorder	Pulley	£16.88 £14.07
14	MO181003085/0 In stock	Gear Box F.R.	£161.89 £134.91
15	MO135063175/0 In stock	Belt	£9.49 £7.91
16	MO122601918/0 Available to backorder	Pulley. Crankshaft Ø 22.2	£25.01 £20.84
17	MO112714312/0 Available to backorder	Grub Screw	£1.55 £1.29
18	MO122450434/0 In stock	Spring	£6.62 £5.52
