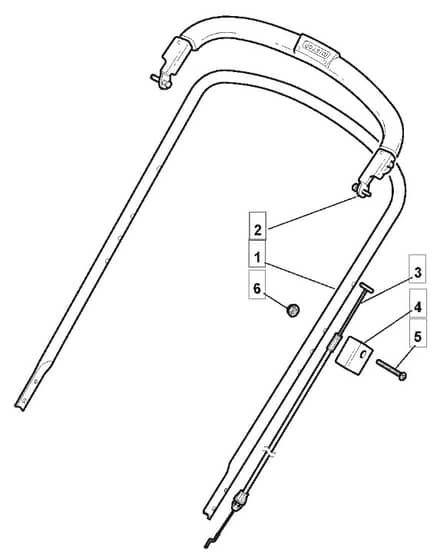

M44 HP - 2008 - 292501043/UM8 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield M44 HP Parts Diagram

Product Name - M44 HP

Model Year - 2008

Model Type - TU 504

Art.N - 292501043/UM8

	Part No.	Details
1	MO381006618/1 Available to backorder	Handle. Upper Part	£50.69 £42.24
1	MO381006632/1 Available to backorder	Handle. Upper Part Yellow	£28.14 £23.45
2	MO381003298/1 In stock	Lever	£32.38 £26.98
3	MO181000688/0 In stock	Cable. Thread Engine Brake ST. Engine	£13.60 £11.33
4	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
5	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
6	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
