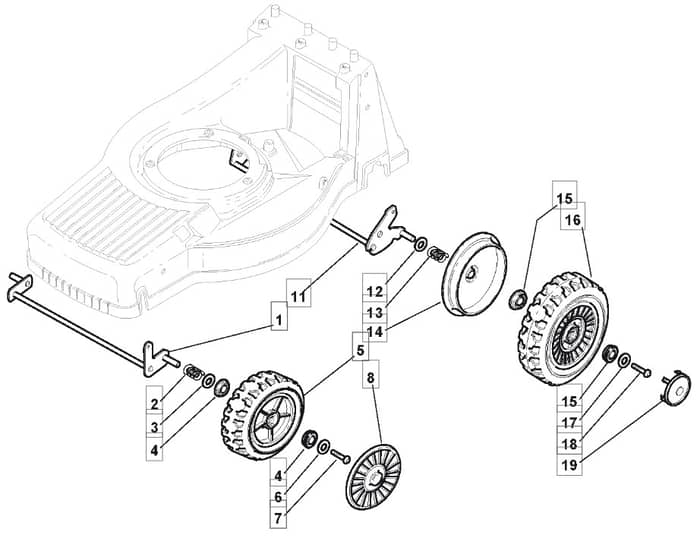

M41 HP - 2007 - 292501043/MO7 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield M41 HP Parts Diagram

Product Name - M41 HP

Model Year - 2007

Model Type - TU 504

Art.N - 292501043/MO7

Engine Model - SV150

	Part No.	Details
2	MO122430210/0 Available to backorder	Bearing	£1.70 £1.42
3	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
4	MO122122206/0 In stock	Bearing	£1.84 £1.53
5	MO1111-2784-01 In stock	Wheel To 31-8-2006	£18.59 £15.49
5	MO381007351/0 In stock	Wheel Ø 170 From 01-9-2006	£13.66 £11.38
8	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
12	MO122671659/0 Available to backorder	Washer	£1.63 £1.36
13	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
15	MO122122201/0 In stock	Bearing	£2.24 £1.87
16	MO381007361/0 Available to backorder	Wheel	£21.65 £18.04
17	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
18	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
19	MO322110384/0 Available to backorder	Hub Cap 190.215 [Grey]	£7.19 £5.99
