M40 PD - 2008 - 292502023/CAI - Mountfield Rotary Mower Upper Handle Diagram

Name: M40 PD - 2008 - 292502023/CAI - Mountfield Rotary Mower Upper Handle Diagram
SKU: m40_pd_292502023_cai_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. m40_pd_292502023_cai_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M40 PD - 2008 - 292502023/CAI - Mountfield Rotary Mower Upper Handle Diagram

Description

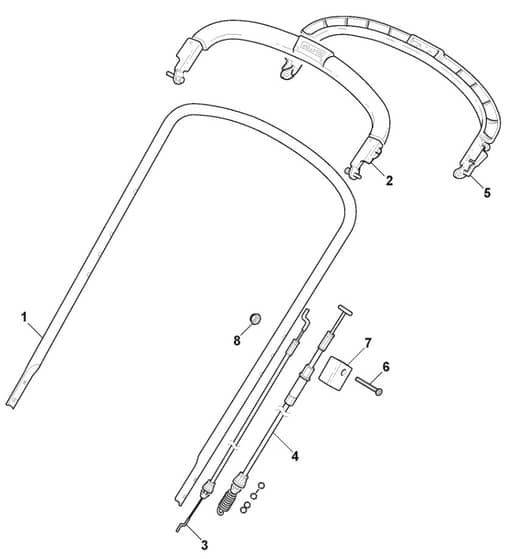

Mountfield M40 PD Parts Diagram

Product Name - M40 PD

Model Year - 2008

Model Type - TU 504 TR

Art.N - 292502023/CAI

	Part No.	Details
1	MO381006618/1 Available to backorder	Handle. Upper Part	£50.69 £42.24
2	MO381003330/0 Available to backorder	Lever. Engine Brake From 01-9-2010	£66.16 £55.13
2	MO381003298/1 In stock	Lever	£32.38 £26.98
3	MO181000692/0 In stock	Cable. Thread Engine Brake	£13.31 £11.09
4	MO381000697/0 In stock	Cable Rear Drive	£20.27 £16.89
5	MO381003297/1 In stock	Driving Lever	£22.10 £18.42
6	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
7	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
