M4 SP TRI-CUT - 2004 - 12-5686-81 - Mountfield Rotary Mower Main Assembly Diagram

Description

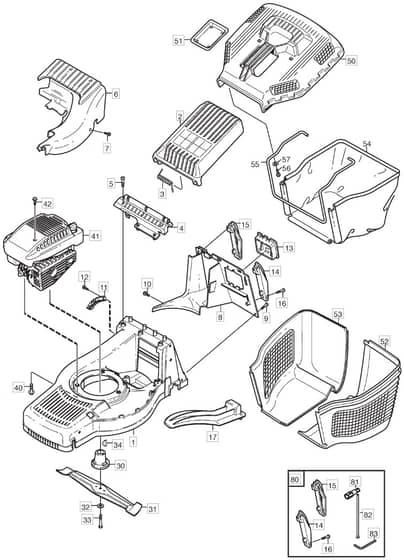

Mountfield M4 SP TRI-CUT Parts Diagram

Product Name - M4 SP TRI-CUT

Model Year - 2004

Model Type -

Art.N - 12-5686-81

	Part No.	Details
2	MO322600068/2 Available to backorder	Stone Guard. Black	£12.37 £10.31
3	MO122450430/0 Available to backorder	Spring	£4.78 £3.98
4	MO322785179/0 Available to backorder	Flap Attachment-Black	£42.16 £35.13
8	MO322108277/0 In stock	Rear Attachment (Combi 48-55)	£49.26 £41.05
9	MO112735664/0 In stock	Screw	£1.39 £1.16
11	MO322735563/0 In stock	Height Adjusting Plate	£14.99 £12.49
12	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
13	MO322109531/0 Available to backorder	Battery Holder	£50.70 £42.25
16	MO112728692/0 Available to backorder	Screw	£1.48 £1.23
30	MO122465618/0 In stock	Blade Holder	£9.04 £7.53
31	MO181004143/0 In stock	Blade	£24.43 £20.36
32	MO9696-0011-01 In stock	Washer	£9.86 £8.22
33	MO112735698/0 In stock	Screw	£1.84 £1.53
34	MO112139100/0 In stock	Key	£1.55 £1.29
40	MO120001064/0 Available to backorder	Screw	£10.14 £8.45
50	MO322486095/0 Available to backorder	Collector-Upper Part Black	£56.32 £46.93
51	MO322486098/0 Available to backorder	Cover	£5.63 £4.69
53	MO322486099/0 Available to backorder	Collector. Lower Rh	£32.18 £26.82
80	MO381008658/1 Available to backorder	Accessory Bag Pos 14-16. 81-83 incl	£17.45 £14.54
