M4 HP TRI-CUT - 2004 - 12-5586-81 - Mountfield Rotary Mower Wheels Diagram

Name: M4 HP TRI-CUT - 2004 - 12-5586-81 - Mountfield Rotary Mower Wheels Diagram
SKU: m4_hp_tri_cut_12_5586_81_wheels-group
Price: 1.16 GBP
Availability: InStock

Part No. m4_hp_tri_cut_12_5586_81_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M4 HP TRI-CUT - 2004 - 12-5586-81 - Mountfield Rotary Mower Wheels Diagram

Description

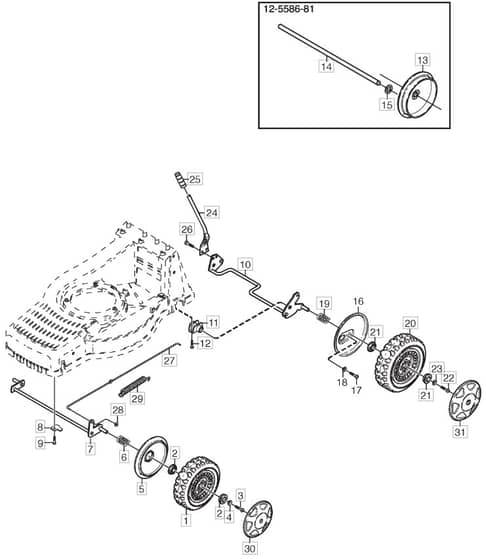

Mountfield M4 HP TRI-CUT Parts Diagram

Product Name - M4 HP TRI-CUT

Model Year - 2004

Model Type -

Art.N - 12-5586-81

	Part No.	Details
1	MO1111-2784-01 In stock	Wheel	£18.59 £15.49
6	MO122430210/0 Available to backorder	Spring-Wheel Axle	£1.70 £1.42
11	MO322785153/0 In stock	Bushing	£15.62 £13.02
12	MO112735664/0 In stock	Screw	£1.39 £1.16
15	MO9675-0017-02 Available to backorder	Starlock	£1.84 £1.53
19	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
20	MO1111-2665-01 Available to backorder	Wheel Pos 21 incl.	£32.03 £26.69
21	MO122122201/0 In stock	Ball Bearing	£2.24 £1.87
23	MO9699-0100-02 Available to backorder	Flat Washer	£1.97 £1.64
25	MO322399808/0 Available to backorder	Lever Knob	£2.40 £2.00
26	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
28	MO112604898/0 Available to backorder	Starlock	£1.63 £1.36
29	MO122446181/0 Available to backorder	Spring	£8.00 £6.67
30	MO322110383/0 Available to backorder	Hub Cap (Silver)	£6.77 £5.64
31	MO322110384/0 Available to backorder	Coperchio Mozzo	£7.19 £5.99
