M4 HP TRI-CUT - 2003 - 12-5503-80 - Mountfield Rotary Mower Handle Diagram

Name: M4 HP TRI-CUT - 2003 - 12-5503-80 - Mountfield Rotary Mower Handle Diagram
SKU: m4_hp_tri_cut_12_5503_80_handle-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M4 HP TRI-CUT - 2003 - 12-5503-80 - Mountfield Rotary Mower Handle Diagram

Description

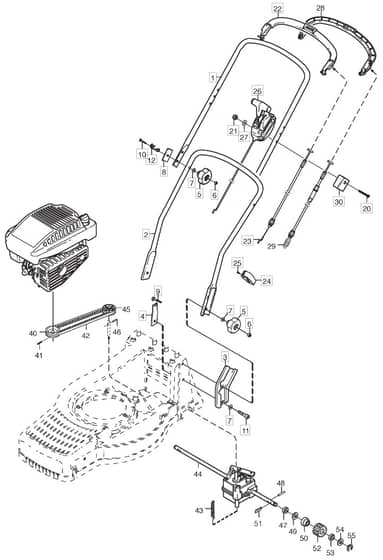

Mountfield M4 HP TRI-CUT Parts Diagram

Product Name - M4 HP TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-5503-80

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006618/1 Available to backorder	Handlebar Upper Part	£50.68 £42.23
2	MO381006613/0 Available to backorder	Handlebar-Lower Part	£36.56 £30.47
3	MO322778405/0 Available to backorder	Handlebar Attachment	£23.89 £19.91
4	MO322551635/0 Available to backorder	Attachment Plate	£4.13 £3.44
5	MO322399810/0 Available to backorder	Locking Knob	£8.29 £6.91
6	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
8	MO322545137/0 Available to backorder	Reinforcement	£1.55 £1.29
9	MO9899-3545-12 Available to backorder	Screw L . 45 mm	£4.63 £3.86
10	MO9899-3557-12 Available to backorder	Screw L . 57 mm	£1.97 £1.64
11	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
12	MO122430311/0 In stock	Eyelink	£6.90 £5.75
20	MO112727787/0 Available to backorder	Screw L . 70 mm	£1.82 £1.52
21	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
22	MO381003298/1 In stock	Control Handle (Eng.Brake	£32.38 £26.98
23	MO1111-2968-07 Available to backorder	Cable. Thread Engine Brake	£13.07 £10.89
24	MO322192001/0 Available to backorder	Cable Holder	£1.55 £1.29
25	MO112728706/0 In stock	Screw	£1.55 £1.29
26	MO181007126/0 Available to backorder	Throttle Control	£25.34 £21.12
27	MO9699-0028-02 In stock	Washer	£1.55 £1.29
30	MO322551685/0 In stock	Use 322551640.0	£7.52 £6.27
