LUX 55 HXF - Oleo-Mac Rotary Mower Axle assy (From March '13) Diagram

Name: LUX 55 HXF - Oleo-Mac Rotary Mower Axle assy (From March '13) Diagram
SKU: lux_55_hxf_axle_assy_from_march_13_-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

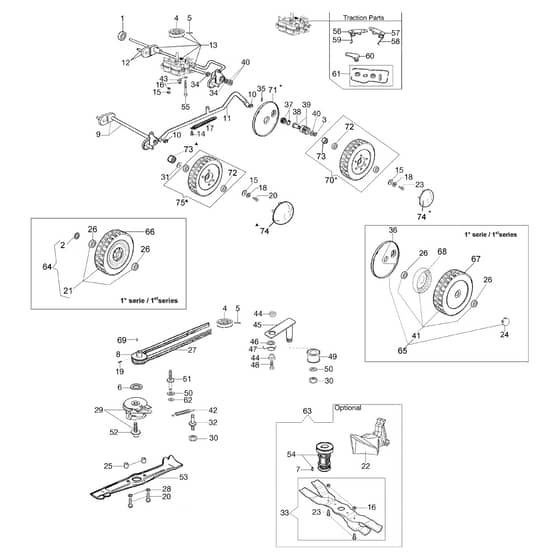

LUX 55 HXF - Oleo-Mac Rotary Mower Axle assy (From March '13) Diagram

Description

Oleo-Mac LUX 55 HXF Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF3035023R Available to backorder	Bearing	£15.84 £13.20
3	EF3024012R In stock	Seeger	£1.28 £1.07
4	EF8203480R Available to backorder	Pulley	£10.08 £8.40
5	EF3022020R Available to backorder	Plug	£1.19 £0.99
6	EF8203436R Available to backorder	Spacer	£14.42 £12.02
7	EF3023010R Available to backorder	Plug	£1.84 £1.53
8	EF8203435R Available to backorder	Pulley	£52.90 £44.08
9	EF8203308BR Available to backorder	Front Axle	£88.04 £73.37
10	EF3033131R Available to backorder	Clamp	£5.44 £4.53
11	EF8203371AR Available to backorder	Lever	£82.26 £68.55
12	EF8203358BR Available to backorder	Rear Axle	£168.38 £140.32
13	EF8203434FR Available to backorder	Axle And Trasmission	£337.20 £281.00
14	EF3801022R Available to backorder	Screw	£0.56 £0.47
15	EF3918009R Available to backorder	Washer	£0.90 £0.75
16	EF3914006R Available to backorder	Nut	£0.90 £0.75
17	EF8203375R Available to backorder	Spring	£10.52 £8.77
18	EF3819009 Available to backorder	Washer	£0.90 £0.75
19	EF3805020 Available to backorder	Screw	£0.90 £0.75
20	EF3806094R Available to backorder	Screw	£2.34 £1.95
22	EF8203380R Available to backorder	Mulching Cap	£52.98 £44.15
23	EF301000042 Available to backorder	Screw	£3.34 £2.78
24	EF8203501R Available to backorder	Wheel Cover SN 6023024267	£5.04 £4.20
25	EF66060221 Available to backorder	Spacer	£3.68 £3.07
26	EF3035015R Available to backorder	Bearing SN 6023024267	£16.44 £13.70
27	EF3047028R Available to backorder	Belt	£18.06 £15.05
28	EF66060384R Available to backorder	Washer	£3.68 £3.07
29	EF8203439R Available to backorder	Blade Brake	£209.28 £174.40
30	EF3914010 Available to backorder	Nut	£0.90 £0.75
32	EF8203138 Available to backorder	Pin	£17.58 £14.65
33	EF8203355CR Available to backorder	Blades Kit	£86.10 £71.75
34	EF8202311R Available to backorder	Ring	£1.38 £1.15
35	EF3033008R Available to backorder	Roller	£1.84 £1.53
36	EF8203497R Available to backorder	Disk SN 6023024267	£12.90 £10.75
37	EF8202070AR Available to backorder	Clamp Right	£20.14 £16.78
37	EF8202071AR Available to backorder	Clamp Left	£20.14 £16.78
38	EF8202062R Available to backorder	Bushing	£2.76 £2.30
39	EF8202063R Available to backorder	Sprocket	£16.78 £13.98
40	EF3064012R In stock	Spacer	£1.08 £0.90
42	EF66060319 Available to backorder	Spring	£16.74 £13.95
43	EF8203379R Available to backorder	Plate	£8.74 £7.28
44	EF8203051 Available to backorder	Spacer	£5.44 £4.53
46	EF3918013 Available to backorder	Washer	£0.90 £0.75
47	EF8203394AR Available to backorder	Spring	£11.28 £9.40
49	EF8203524R Available to backorder	Pulley SN 6025289722	£18.96 £15.80
50	EF3916008R Available to backorder	Washer	£1.82 £1.52
51	EF8203438R Available to backorder	Pin	£28.86 £24.05
52	EF66060335 Available to backorder	Screw	£11.24 £9.37
53	EF8203141R Available to backorder	Blade SN 6023024267	£47.76 £39.80
54	EF8203399R Available to backorder	Hub	£43.30 £36.08
55	EF8203264 Available to backorder	Screw	£1.84 £1.53
56	EF8203481 Available to backorder	Lever Dx	£26.12 £21.77
57	EF8203482 Available to backorder	Lever Sx	£26.12 £21.77
58	EF8203489 Available to backorder	Spring Right	£3.68 £3.07
59	EF8203485 Available to backorder	Spring Left	£3.68 £3.07
60	EF8203492 Available to backorder	Lever	£3.68 £3.07
62	EF3819030R Available to backorder	Washer	£2.76 £2.30
63	EF8203502AR Available to backorder	Mulching Kit SN 6023024267	£89.98 £74.98
66	EF8203509R Available to backorder	Tire SN 6023024267	£58.16 £48.47
67	EF8203510R Available to backorder	Tire SN 6023024267	£61.58 £51.32
69	EF8202126R Available to backorder	Key	£1.84 £1.53
70	EF8203339B Available to backorder	Rear Wheel Kit	£45.94 £38.28
72	EF3035022R Available to backorder	Bearing	£12.76 £10.63
73	EF8203336R Available to backorder	Bushing	£2.76 £2.30
74	EF66060276 Available to backorder	Wheel Cover	£3.68 £3.07
75	EF8203340A Available to backorder	Front Wheel Kit	£59.22 £49.35
