LR 53 TKE ALL ROAD PLUS 4 (K655LI) - - Efco Rotary Mower Illustrated parts list Diagram

Name: LR 53 TKE ALL ROAD PLUS 4 (K655LI) - - Efco Rotary Mower Illustrated parts list Diagram
SKU: lr_53_tke_all_road_plus_4_k655li_illustrated_parts_list-group
Price: 0.36 GBP
Availability: InStock

Part No. lr_53_tke_all_road_plus_4_k655li_illustrated_parts_list-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LR 53 TKE ALL ROAD PLUS 4 (K655LI) - - Efco Rotary Mower Illustrated parts list Diagram

Description

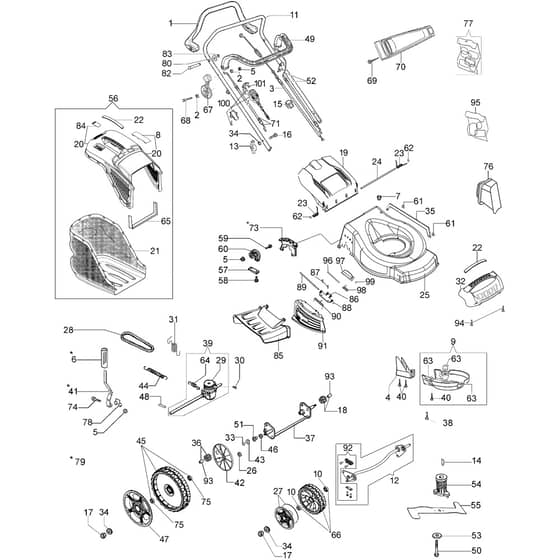

Efco LR 53 TKE ALL ROAD PLUS 4 (K655LI) Parts Diagram

Model Year -

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£21.00 £17.50
2	EF3918009R Available to backorder	Washer	£1.08 £0.90
3	EF66060058CR In stock	Traction Cable	£30.20 £25.17
4	EF66071090 In stock	Guard	£17.41 £14.51
5	EF3914006R Available to backorder	Nut	£1.08 £0.90
6	EF66070924R Available to backorder	Handle	£10.20 £8.50
7	EF66030038 Available to backorder	Grommet	£1.08 £0.90
8	EF66070466R Available to backorder	Lock	£9.48 £7.90
9	EF66070233A In stock	Guard Kit	£15.05 £12.54
11	EF66060421BR Available to backorder	Handlebar	£61.56 £51.30
12	EF66070749 Available to backorder	Axle Kit	£57.24 £47.70
13	EF66070944R Available to backorder	Tightening Handle	£7.32 £6.10
14	EF8202126R Available to backorder	Key	£2.00 £1.67
15	EF66060231 Available to backorder	Band	£3.14 £2.62
16	EF3910015R Available to backorder	Screw	£2.00 £1.67
18	EF66070437R Available to backorder	Left Sprocket	£17.52 £14.60
19	EF66110753R Available to backorder	Shutter Rosso. Red	£24.24 £20.20
20	EF66072047R Available to backorder	Frame	£62.64 £52.20
21	EF66070876R Available to backorder	Grassbag	£86.88 £72.40
22	EF66070522R Available to backorder	Cover	£9.60 £8.00
23	EF66110610 Available to backorder	Kit Spring	£8.52 £7.10
24	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
25	EF66070537AR Available to backorder	Deck	£205.08 £170.90
27	EF66070885R Available to backorder	Wheel Cover	£5.64 £4.70
28	EF3047000 In stock	Belt	£20.88 £17.40
29	EF66071084R Available to backorder	Pulley	£15.48 £12.90
30	EF3022020R Available to backorder	Plug	£1.43 £1.19
32	EF66070488R Available to backorder	Guard	£28.08 £23.40
33	EF3024012R In stock	Snap Ring	£1.54 £1.28
34	EF3916008R Available to backorder	Washer	£1.98 £1.65
35	EF66070229 Available to backorder	Rod	£21.72 £18.10
36	EF66070436R Available to backorder	Right Sprocket	£17.76 £14.80
37	EF66070287AR Available to backorder	Rear Axle	£92.04 £76.70
38	EF3806076R Available to backorder	Screw	£2.75 £2.29
39	EF66070017ER Available to backorder	Transmission	£147.72 £123.10
40	EF011200035R Available to backorder	Screw	£1.08 £0.90
41	EF66070286CR In stock	Lever	£19.76 £16.47
42	EF66070756 Available to backorder	Wheel Cover	£11.52 £9.60
43	EF66030044 Available to backorder	Spacer	£1.08 £0.90
44	EF66070036R Available to backorder	Spring	£5.64 £4.70
45	EF66071056R Available to backorder	Complete Wheel	£34.08 £28.40
46	EF8202311R Available to backorder	Ring	£1.66 £1.38
47	EF66070888R Available to backorder	Wheel Cover	£9.48 £7.90
48	EF66060010R Available to backorder	Roller	£1.08 £0.90
49	EF66060316AR In stock	Brake Lever	£25.68 £21.40
50	EF3906150R Available to backorder	Screw	£5.64 £4.70
51	EF66060030R Available to backorder	Bushing	£3.84 £3.20
52	EF66030276R In stock	Engine Break Cable	£17.78 £14.82
53	EF66060384R Available to backorder	Washer	£3.84 £3.20
54	EF66030036 In stock	Hub With Sheet	£19.64 £16.37
55	EF66070440R In stock	Mulching Blade	£27.84 £23.20
56	EF66070905 Available to backorder	Grassbag Kit	£108.84 £90.70
57	EF66030039 Available to backorder	Plate	£3.01 £2.51
58	EF3960031R Available to backorder	Screw	£1.08 £0.90
59	EF3801022R Available to backorder	Screw	£0.48 £0.40
60	EF66110781 Available to backorder	Support	£9.00 £7.50
61	EF3045035R Available to backorder	Retainer Washer	£3.01 £2.51
63	EF66070228AR Available to backorder	Support	£2.35 £1.96
64	EF66070980R Available to backorder	Spring	£6.24 £5.20
65	EF66070133R Available to backorder	Support	£9.00 £7.50
66	EF66070722R Available to backorder	Complete Wheel	£24.00 £20.00
67	EF66070341AR In stock	Throttle Lever	£9.32 £7.77
68	EF3910019 Available to backorder	Screw	£1.08 £0.90
69	EF3960072 Available to backorder	Screw	£1.08 £0.90
70	EF66070128 Available to backorder	Dashboard sostituito da particolare intercambiabile ma di geometria differente . replaced by an interchangeable part but with a different geometry	£9.00 £7.50
71	EF66070136R In stock	Throttle Cable	£13.93 £11.61
74	EF3906164R Available to backorder	Screw	£2.80 £2.33
75	EF3035023R Available to backorder	Bearing	£16.44 £13.70
77	EF66070903 Available to backorder	Labels Kit	£10.68 £8.90
78	EF8203374R Available to backorder	Spring	£10.44 £8.70
80	EF3064037 Available to backorder	Washer	£1.08 £0.90
82	EF66060381BR Available to backorder	Pin	£3.01 £2.51
83	EF3024006 Available to backorder	Snap Ring	£1.08 £0.90
84	EF66070521R Available to backorder	Shutter	£9.00 £7.50
85	EF66070479R In stock	Deflector	£37.32 £31.10
86	EF66070804R Available to backorder	Support	£12.24 £10.20
87	EF3032018R Available to backorder	Rivet	£0.43 £0.36
89	EF66071060R Available to backorder	Pin	£4.20 £3.50
90	EF66070493R Available to backorder	Spring	£12.60 £10.50
91	EF66070925AR Available to backorder	Shutter	£23.76 £19.80
92	EF66070744 Available to backorder	Support Set	£11.16 £9.30
93	EF66070435R Available to backorder	Bushing	£3.36 £2.80
96	EF66070836R Available to backorder	Pin	£3.18 £2.65
97	EF66070803R Available to backorder	Lock	£3.96 £3.30
98	EF66070802R Available to backorder	Spring	£7.20 £6.00
99	EF3045034R In stock	Retainer Washer	£1.13 £0.94
100	EF3044055R Available to backorder	Starting Switch	£67.44 £56.20
101	EF66071046R Available to backorder	Safety Key	£16.32 £13.60
