LR 53 TK (K700) - - Efco Rotary Mower Illustrated parts list Diagram

Description

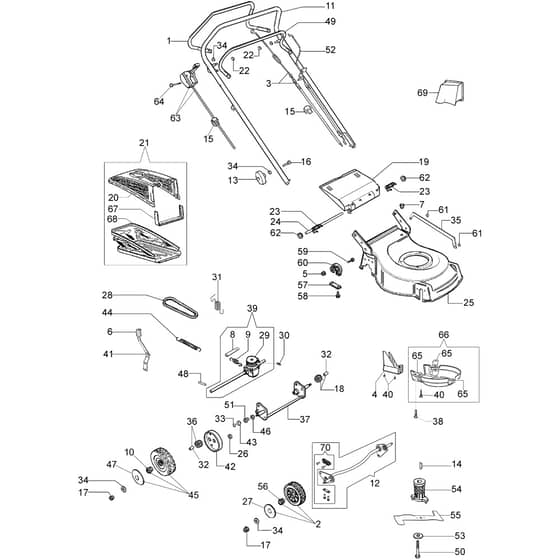

Efco LR 53 TK (K700) Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060105 Available to backorder	Traction Lever	£20.04 £16.70
2	EF66110281 Available to backorder	Wheel Kit	£24.52 £20.43
3	EF66060058CR Available to backorder	Traction Cable	£30.78 £25.65
4	EF66071089 Available to backorder	Guard	£9.18 £7.65
5	EF3914006R Available to backorder	Nut	£0.90 £0.75
6	EF66070021R Available to backorder	Handle	£2.16 £1.80
7	EF66030038 Available to backorder	Grommet	£0.90 £0.75
8	EF66070100 Available to backorder	Traction Lever	£10.72 £8.93
9	EF66071065R Available to backorder	Spring	£7.22 £6.02
10	EF66030057R Available to backorder	Bearing	£8.74 £7.28
11	EF66060104AR Available to backorder	Handlebar	£53.44 £44.53
12	EF66070748 Available to backorder	Axle Kit SN 6195022908	£42.10 £35.08
13	EF4119013AR Available to backorder	Tightening Handle	£3.68 £3.07
14	EF8202126R Available to backorder	Key	£1.84 £1.53
15	EF66060231 Available to backorder	Band	£2.88 £2.40
16	EF3910015R Available to backorder	Screw	£1.84 £1.53
18	EF66070437R Available to backorder	Left Sprocket SN 6195164910	£16.88 £14.07
19	EF66110014R Available to backorder	Shutter	£24.88 £20.73
20	EF66070132R Available to backorder	Frame	£27.70 £23.08
21	EF66070379A Available to backorder	Grassbag Kit	£87.16 £72.63
22	EF3045033R Available to backorder	Retainer Washer	£2.76 £2.30
23	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
24	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
25	EF66071097R Available to backorder	Deck	£227.52 £189.60
27	EF66110278R Available to backorder	Wheel Cover	£5.44 £4.53
28	EF3047025R Available to backorder	Belt	£16.38 £13.65
28	EF3047000 In stock	Belt	£21.30 £17.75
29	EF66071084R Available to backorder	Pulley SN 6191090552	£16.27 £13.56
30	EF3801010R Available to backorder	Screw	£1.14 £0.95
31	EF66070652R Available to backorder	Spring	£4.44 £3.70
32	EF66070435R Available to backorder	Bushing SN 6195164910	£3.24 £2.70
33	EF3024012R In stock	Snap Ring	£1.28 £1.07
34	EF3916008R Available to backorder	Washer	£1.82 £1.52
35	EF66110012 Available to backorder	Rod	£13.56 £11.30
36	EF66070436R Available to backorder	Right Sprocket SN 6195164910	£17.22 £14.35
37	EF66070013C Available to backorder	Rear Axle	£83.04 £69.20
38	EF3806076R Available to backorder	Screw	£2.52 £2.10
40	EF011200035R In stock	Screw	£0.98 £0.82
41	EF66070018R Available to backorder	Lever	£18.38 £15.32
42	EF66070060R Available to backorder	Wheel Cover	£8.74 £7.28
43	EF66030044 Available to backorder	Spacer	£0.90 £0.75
44	EF66070036R Available to backorder	Spring	£5.44 £4.53
45	EF66062097 Available to backorder	Wheel Kit	£43.98 £36.65
46	EF8202311R Available to backorder	Ring	£1.38 £1.15
47	EF66030145R Available to backorder	Wheel Cover	£5.44 £4.53
48	EF66060010R Available to backorder	Roller	£0.98 £0.82
49	EF66060106R Available to backorder	Brake Lever	£26.26 £21.88
50	EF3906150R Available to backorder	Screw	£5.44 £4.53
51	EF66060030R Available to backorder	Bushing	£3.68 £3.07
70	EF66070744 Available to backorder	Support Set SN 6195022908	£10.76 £8.97
