LR 53 TK ALLROAD (K800) - - Efco Rotary Mower Illustrated parts list Diagram

Description

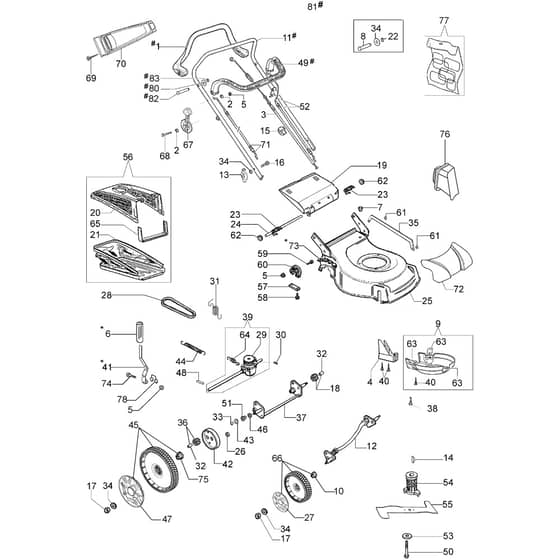

Efco LR 53 TK ALLROAD (K800) Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060398br In stock	Traction Lever SN 6190432021	£22.13 £18.44
2	EF3918009R Available to backorder	Washer	£0.90 £0.75
3	EF66060058CR Available to backorder	Traction Cable	£30.78 £25.65
4	EF66071089 Available to backorder	Guard	£9.18 £7.65
5	EF3914006R Available to backorder	Nut	£0.90 £0.75
6	EF66070954R Available to backorder	Handle	£9.60 £8.00
7	EF66030038 Available to backorder	Grommet	£0.90 £0.75
8	EF66060381BR Available to backorder	Pin SN 6190432020	£2.76 £2.30
9	EF66070233A Available to backorder	Guard Kit	£15.28 £12.73
10	EF66030081R Available to backorder	Bearing	£5.44 £4.53
11	EF66060421BR Available to backorder	Handlebar SN 6190432021	£59.46 £49.55
12	EF66070749 Available to backorder	Axle Kit	£55.38 £46.15
13	EF66070317R Available to backorder	Tightening Handle	£9.66 £8.05
14	EF8202126R Available to backorder	Key	£1.84 £1.53
15	EF66060231 Available to backorder	Band	£2.88 £2.40
16	EF3910015R Available to backorder	Screw	£1.84 £1.53
18	EF66070437R Available to backorder	Left Sprocket SN 6195164910	£16.88 £14.07
19	EF66110014R Available to backorder	Shutter	£24.88 £20.73
20	EF66070132R Available to backorder	Frame	£27.70 £23.08
21	EF66070329R Available to backorder	Grassbag	£64.98 £54.15
22	EF3024009R Available to backorder	Ring SN 6190432020	£2.76 £2.30
23	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
24	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
28	EF3047025R Available to backorder	Belt	£16.38 £13.65
28	EF3047000 In stock	Belt	£21.30 £17.75
29	EF66071084R Available to backorder	Pulley SN 6191090552	£16.27 £13.56
30	EF3022020R Available to backorder	Plug	£1.19 £0.99
32	EF66070435R Available to backorder	Bushing SN 6195164910	£3.24 £2.70
33	EF3024012R In stock	Snap Ring	£1.28 £1.07
34	EF3916008R Available to backorder	Washer	£1.82 £1.52
35	EF66070022 Available to backorder	Rod	£13.90 £11.58
36	EF66070436R Available to backorder	Right Sprocket SN 6195164910	£17.22 £14.35
37	EF66070287AR Available to backorder	Rear Axle	£88.92 £74.10
38	EF3806076R Available to backorder	Screw	£2.52 £2.10
39	EF66070017ER Available to backorder	Transmission	£153.84 £128.20
41	EF66070286CR Available to backorder	Lever	£18.50 £15.42
42	EF66070756 Available to backorder	Wheel Cover	£11.10 £9.25
43	EF66030044 Available to backorder	Spacer	£0.90 £0.75
44	EF66070036R Available to backorder	Spring	£5.44 £4.53
45	EF66070383 Available to backorder	Wheel Kit	£73.30 £61.08
46	EF8202311R Available to backorder	Ring	£1.38 £1.15
47	EF66070300R Available to backorder	Wheel Cover	£9.26 £7.72
48	EF66060010R Available to backorder	Roller	£0.98 £0.82
49	EF66060316AR In stock	Brake Lever SN 6190432021	£27.07 £22.56
50	EF3906150R Available to backorder	Screw	£5.44 £4.53
51	EF66060030R Available to backorder	Bushing	£3.68 £3.07
52	EF66060369R Available to backorder	Engine Break Cable	£13.60 £11.33
53	EF66060384R Available to backorder	Washer	£3.68 £3.07
54	EF66030036 In stock	Hub With Sheet	£20.03 £16.69
55	EF66070440R In stock	Mulching Blade	£28.40 £23.67
56	EF66070379A Available to backorder	Grassbag Kit	£87.16 £72.63
57	EF66030039 Available to backorder	Plate	£2.76 £2.30
58	EF3960031R Available to backorder	Screw	£0.98 £0.82
59	EF3801022R Available to backorder	Screw	£0.56 £0.47
60	EF66110781 Available to backorder	Support	£8.74 £7.28
61	EF3045035R Available to backorder	Retainer Washer	£2.76 £2.30
62	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
63	EF66070228AR Available to backorder	Support	£2.16 £1.80
64	EF66070980R Available to backorder	Spring	£6.08 £5.07
65	EF66070133R Available to backorder	Support	£8.74 £7.28
67	EF66070341AR In stock	Throttle Lever	£9.54 £7.95
68	EF3910019 Available to backorder	Screw	£0.90 £0.75
69	EF3960072 Available to backorder	Screw	£0.90 £0.75
70	EF66070128 Available to backorder	Dashboard sostituito da particolare intercambiabile ma di geometria differente . replaced by an interchangeable part but with a different geometry	£8.74 £7.28
71	EF66070136R In stock	Throttle Cable	£14.14 £11.78
72	EF66070316R Available to backorder	Guard	£18.40 £15.33
74	EF3906164R Available to backorder	Screw	£2.56 £2.13
75	EF3035023R Available to backorder	Bearing	£15.84 £13.20
77	EF66070381 Available to backorder	Labels Kit	£12.78 £10.65
78	EF8203374R Available to backorder	Spring	£10.08 £8.40
79	EF66070439A Available to backorder	Lever Group	£34.28 £28.57
80	EF3064037 Available to backorder	Washer SN 6190432021	£0.90 £0.75
81	EF66060425R Available to backorder	Handle Kit SN 6190432021	£97.32 £81.10
83	EF3024006 Available to backorder	Snap Ring SN 6190432021	£0.90 £0.75
