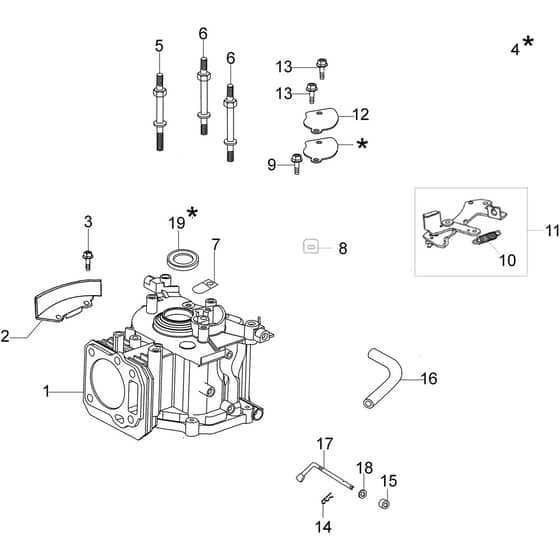

LR 53 TK ALLROAD EXA 4 (K800) - 2018 - Efco Rotary Mower Cylinder and crankase Diagram

Name: LR 53 TK ALLROAD EXA 4 (K800) - 2018 - Efco Rotary Mower Cylinder and crankase Diagram
SKU: lr_53_tk_allroad_exa_4_k800_2018_cylinder_and_crankase-group
Price: 0.8 GBP
Availability: InStock

Part No. lr_53_tk_allroad_exa_4_k800_2018_cylinder_and_crankase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LR 53 TK ALLROAD EXA 4 (K800) - 2018 - Efco Rotary Mower Cylinder and crankase Diagram

Description

Efco LR 53 TK ALLROAD EXA 4 (K800) Parts Diagram

Model Year - 2018

	Part No.	Details
2	EFL66150406 Available to backorder	Guard	£3.96 £3.30
3	EFL66150251 Available to backorder	Screw	£1.08 £0.90
4	EFL66150724 Available to backorder	Gasket Set 41579	£34.32 £28.60
4	EFL66150245 Available to backorder	Gasket Set 41548	£37.32 £31.10
5	EFL66150407 Available to backorder	Stud	£3.01 £2.51
6	EFL66150408 Available to backorder	Stud	£3.12 £2.60
7	EFL66150410 Available to backorder	Reed Valve	£5.04 £4.20
10	EFL66150257 Available to backorder	Spring	£0.96 £0.80
11	EFL66150415 Available to backorder	Flyweheel Brake	£18.24 £15.20
12	EFL66150244 Available to backorder	Cap.Breather Chamber	£3.01 £2.51
14	EFL66150353 Available to backorder	Plug	£1.44 £1.20
16	EFL66150246 Available to backorder	Tube 41548	£2.00 £1.67
18	EFL66150035 Available to backorder	Rondelle	£2.00 £1.67
