LR 53 PK (K700) - - Efco Rotary Mower Illustrated parts list ESSENTIAL Diagram

Description

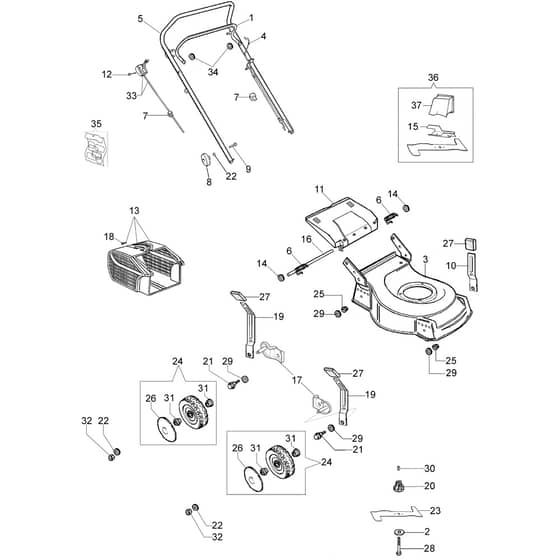

Efco LR 53 PK (K700) Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060106R Available to backorder	Brake Lever	£26.26 £21.88
2	EF66060384R Available to backorder	Washer	£3.68 £3.07
4	EF66030276R Available to backorder	Engine Break Cable	£18.08 £15.07
5	EF66060104AR Available to backorder	Handlebar	£53.44 £44.53
6	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
7	EF66060231 Available to backorder	Band	£2.88 £2.40
8	EF4119013AR Available to backorder	Tightening Handle	£3.68 £3.07
9	EF3910015R Available to backorder	Screw	£1.84 £1.53
10	EF66070248R Available to backorder	Lever Anteriore. SX. Front. LEFT	£8.74 £7.28
11	EF66110014R Available to backorder	Shutter	£24.88 £20.73
12	EF3910019 Available to backorder	Screw	£0.90 £0.75
13	EF66112001R Available to backorder	Complete Grassbag	£52.70 £43.92
14	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
15	EF66060170B Available to backorder	Fan	£12.84 £10.70
16	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
17	EF66070301A Available to backorder	Support Set	£22.94 £19.12
18	EF66070132R Available to backorder	Frame	£27.70 £23.08
19	EF66070031R Available to backorder	Lever	£11.36 £9.47
20	EF66030003AR Available to backorder	Blade Hub	£12.96 £10.80
21	EF66070030A Available to backorder	Pin	£1.84 £1.53
22	EF66030012R Available to backorder	Washer	£1.84 £1.53
23	EF66070440R In stock	Mulching Blade	£28.40 £23.67
24	EF66070362 Available to backorder	Wheel Kit	£25.08 £20.90
26	EF66070298R Available to backorder	Wheel Cover	£5.44 £4.53
27	EF66070021R Available to backorder	Handle	£2.16 £1.80
28	EF3906150R Available to backorder	Screw	£5.44 £4.53
29	EF3027001R Available to backorder	Washer	£0.90 £0.75
30	EF8202126R Available to backorder	Key	£1.84 £1.53
31	EF66030081R Available to backorder	Bearing	£5.44 £4.53
32	EF3914006R Available to backorder	Nut	£0.90 £0.75
34	EF3045033R Available to backorder	Retainer Washer	£2.76 £2.30
35	EF66070381 Available to backorder	Labels Kit	£12.78 £10.65
36	EF66070095R Available to backorder	Mulching Kit	£100.86 £84.05
