LR 53 PK (K700) - - Efco Rotary Mower Illustrated parts list Diagram

Name: LR 53 PK (K700) - - Efco Rotary Mower Illustrated parts list Diagram
SKU: lr_53_pk_k700_illustrated_parts_list-group
Price: 0.9 GBP
Availability: InStock

Part No. lr_53_pk_k700_illustrated_parts_list-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LR 53 PK (K700) - - Efco Rotary Mower Illustrated parts list Diagram

Description

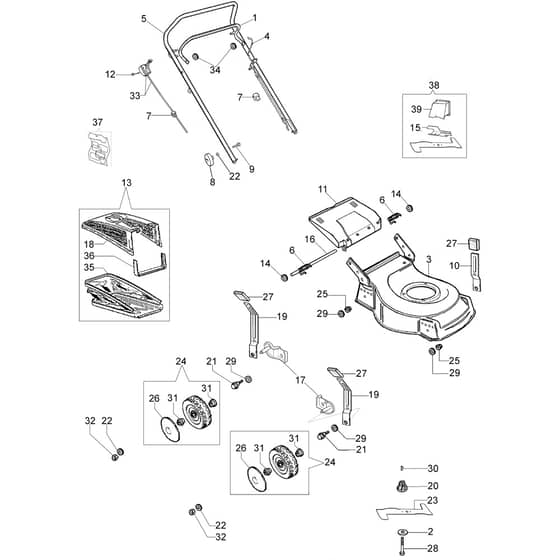

Efco LR 53 PK (K700) Parts Diagram

Model Year -

	Part No.	Details
1	EF66060106R Available to backorder	Brake Lever	£27.12 £22.60
2	EF66060384R Available to backorder	Washer	£3.84 £3.20
4	EF66030276R In stock	Engine Break Cable	£17.78 £14.82
5	EF66060104AR Available to backorder	Handlebar	£55.32 £46.10
6	EF66110610 Available to backorder	Kit Spring	£8.52 £7.10
7	EF66060231 Available to backorder	Band	£3.14 £2.62
8	EF4119013AR Available to backorder	Tightening Handle	£3.84 £3.20
9	EF3910015R Available to backorder	Screw	£2.00 £1.67
10	EF66070248R Available to backorder	Lever Anteriore. SX. Front. LEFT	£9.00 £7.50
11	EF66110014R Available to backorder	Shutter	£25.68 £21.40
12	EF3910019 Available to backorder	Screw	£1.08 £0.90
13	EF66070379A Available to backorder	Grassbag Kit	£90.12 £75.10
14	EF3045034R In stock	Retainer Washer	£1.13 £0.94
15	EF66060170B Available to backorder	Fan	£13.32 £11.10
16	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
17	EF66070301A Available to backorder	Support Set	£23.76 £19.80
18	EF66070132R Available to backorder	Frame	£28.68 £23.90
19	EF66070031R Available to backorder	Lever	£11.76 £9.80
20	EF66030003AR Available to backorder	Blade Hub	£13.44 £11.20
21	EF66070030A Available to backorder	Pin	£2.00 £1.67
22	EF66030012R Available to backorder	Washer	£2.00 £1.67
23	EF66070440R In stock	Mulching Blade	£27.84 £23.20
24	EF66110281 Available to backorder	Wheel Kit	£25.32 £21.10
26	EF66110278R Available to backorder	Wheel Cover	£5.64 £4.70
27	EF66070021R Available to backorder	Handle	£2.35 £1.96
28	EF3906150R Available to backorder	Screw	£5.64 £4.70
29	EF3027001R Available to backorder	Washer	£1.08 £0.90
30	EF8202126R Available to backorder	Key	£2.00 £1.67
31	EF66030081R Available to backorder	Bearing	£5.64 £4.70
32	EF3914006R Available to backorder	Nut	£1.08 £0.90
34	EF3045033R Available to backorder	Retainer Washer	£3.01 £2.51
35	EF66070329R Available to backorder	Grassbag	£67.20 £56.00
36	EF66070133R Available to backorder	Support	£9.00 £7.50
37	EF66070381 Available to backorder	Labels Kit	£13.20 £11.00
38	EF66070095R Available to backorder	Mulching Kit	£96.84 £80.70
