LR 48 TK ESSENTIAL (K600 AUTOCKOKE) - - Efco Rotary Mower Essential complete illustrated part list (From January 2012) Diagram

Description

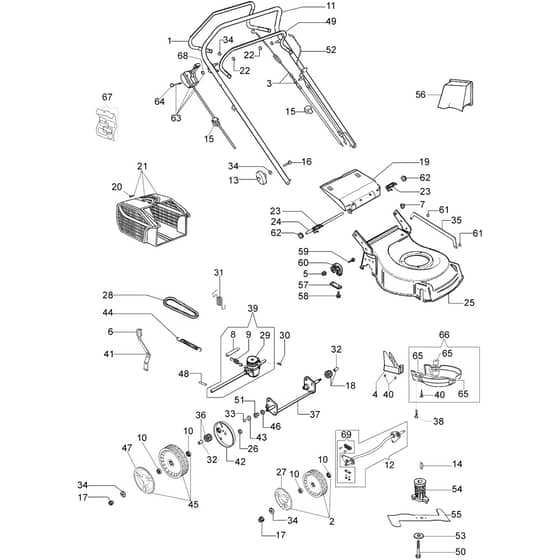

Efco LR 48 TK ESSENTIAL (K600 AUTOCKOKE) Parts Diagram

Model Year -

	Part No.	Details
1	EF66060105 Available to backorder	Traction Lever	£20.76 £17.30
2	EF66070362 Available to backorder	Wheel Kit	£25.92 £21.60
3	EF66060058CR In stock	Traction Cable	£30.20 £25.17
4	EF66110013R Available to backorder	Guard	£12.48 £10.40
6	EF66070021R Available to backorder	Handle	£2.35 £1.96
7	EF66030038 Available to backorder	Grommet	£1.08 £0.90
8	EF66070100 Available to backorder	Traction Lever	£11.04 £9.20
9	EF66071065R In stock	Spring	£7.44 £6.20
10	EF66030081R Available to backorder	Bearing	£5.64 £4.70
11	EF66060104AR Available to backorder	Handlebar	£55.32 £46.10
12	EF66070748 Available to backorder	Axle Kit SN 6275020572	£43.56 £36.30
13	EF4119013AR Available to backorder	Tightening Handle	£3.84 £3.20
14	EF8202126R Available to backorder	Key	£2.00 £1.67
15	EF66060231 Available to backorder	Band	£3.14 £2.62
16	EF3910015R Available to backorder	Screw	£2.00 £1.67
18	EF66070437R Available to backorder	Left Sprocket SN 6275173850	£17.52 £14.60
19	EF66110014R Available to backorder	Shutter	£25.68 £21.40
20	EF3960013R Available to backorder	Screw	£3.01 £2.51
21	EF66112001R Available to backorder	Complete Grassbag	£54.48 £45.40
22	EF3045033R Available to backorder	Retainer Washer	£3.01 £2.51
23	EF66110610 Available to backorder	Kit Spring	£8.52 £7.10
24	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
25	EF66110821A Available to backorder	Deck	£211.44 £176.20
27	EF66070298R Available to backorder	Wheel Cover	£5.64 £4.70
28	EF66030037R Available to backorder	Belt	£23.28 £19.40
29	EF66071084R Available to backorder	Pulley	£15.48 £12.90
30	EF3022020R Available to backorder	Plug	£1.43 £1.19
31	EF66070652R Available to backorder	Spring	£4.56 £3.80
32	EF66070435R Available to backorder	Bushing SN 6275173850	£3.36 £2.80
33	EF3024012R In stock	Snap Ring	£1.54 £1.28
34	EF3916008R Available to backorder	Washer	£1.98 £1.65
35	EF66110012 Available to backorder	Rod	£14.04 £11.70
36	EF66070436R Available to backorder	Right Sprocket SN 6275173850	£17.76 £14.80
37	EF66070013C Available to backorder	Rear Axle	£85.92 £71.60
38	EF3806076R Available to backorder	Screw	£2.75 £2.29
40	EF011200035R Available to backorder	Screw	£1.08 £0.90
41	EF66070018R Available to backorder	Lever	£18.96 £15.80
42	EF66070060R Available to backorder	Wheel Cover	£9.00 £7.50
43	EF66030044 Available to backorder	Spacer	£1.08 £0.90
44	EF66070036R Available to backorder	Spring	£5.64 £4.70
46	EF8202311R Available to backorder	Ring	£1.66 £1.38
48	EF66060010R Available to backorder	Roller	£1.08 £0.90
49	EF66060106R Available to backorder	Brake Lever	£27.12 £22.60
50	EF3906150R Available to backorder	Screw	£5.64 £4.70
51	EF66060030R Available to backorder	Bushing	£3.84 £3.20
52	EF66030276R In stock	Engine Break Cable	£17.78 £14.82
53	EF66060384R Available to backorder	Washer	£3.84 £3.20
54	EF66030036 In stock	Hub With Sheet	£19.64 £16.37
55	EF66110594R In stock	Mulching Blade	£27.35 £22.79
56	EF66110828R Available to backorder	Mulching Cap	£43.08 £35.90
57	EF66030039 Available to backorder	Plate	£3.01 £2.51
58	EF3960031R Available to backorder	Screw	£1.08 £0.90
59	EF3801022R Available to backorder	Screw	£0.48 £0.40
60	EF66110781 Available to backorder	Support	£9.00 £7.50
61	EF3045035R Available to backorder	Retainer Washer	£3.01 £2.51
62	EF3045034R In stock	Retainer Washer	£1.13 £0.94
64	EF3910020R Available to backorder	Screw	£3.01 £2.51
65	EF66070228AR Available to backorder	Support	£2.35 £1.96
66	EF66070233A In stock	Guard Kit	£15.05 £12.54
67	EF66070381 Available to backorder	Labels Kit	£13.20 £11.00
69	EF66070744 Available to backorder	Support Set SN 6275020572	£11.16 £9.30
