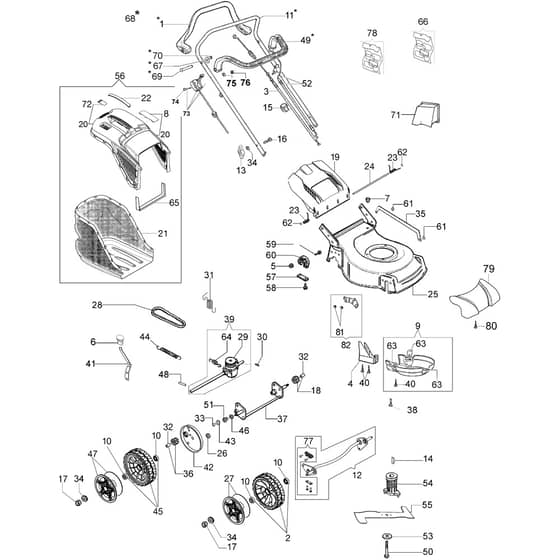

LR 48 TK COMFORT PLUS (K600) - 2018 - Efco Rotary Mower Complete illustrated parts list Diagram

Name: LR 48 TK COMFORT PLUS (K600) - 2018 - Efco Rotary Mower Complete illustrated parts list Diagram
SKU: lr_48_tk_comfort_plus_k600_2018_complete_illustrated_parts_list-
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LR 48 TK COMFORT PLUS (K600) - 2018 - Efco Rotary Mower Complete illustrated parts list Diagram

Description

Efco LR 48 TK COMFORT PLUS (K600) Parts Diagram

Model Year - 2018

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£22.13 £18.44
2	EF66070724R Available to backorder	Complete Wheel	£21.22 £17.68
3	EF66071044R Available to backorder	Traction Cable	£27.07 £22.56
4	EF66110845 Available to backorder	Guard	£9.10 £7.58
6	EF66110684 Available to backorder	Handle	£7.50 £6.25
7	EF66030038 Available to backorder	Grommet	£0.90 £0.75
8	EF66070466R Available to backorder	Lock	£9.22 £7.68
9	EF66070233A Available to backorder	Guard Kit	£15.28 £12.73
10	EF66030081R Available to backorder	Bearing	£5.44 £4.53
11	EF66060421BR Available to backorder	Handlebar	£59.46 £49.55
12	EF66070748 Available to backorder	Axle Kit	£42.10 £35.08
13	EF66070944R Available to backorder	Tightening Handle	£7.02 £5.85
14	EF8202126R Available to backorder	Key	£1.84 £1.53
15	EF66060231 Available to backorder	Band	£2.88 £2.40
16	EF3910015R Available to backorder	Screw	£1.84 £1.53
18	EF66070437R Available to backorder	Left Sprocket	£16.88 £14.07
19	EF66110753R Available to backorder	Shutter	£23.48 £19.57
20	EF66072047R Available to backorder	Frame	£60.56 £50.47
21	EF66070876R Available to backorder	Grassbag	£84.02 £70.02
22	EF66070522R Available to backorder	Cover	£9.26 £7.72
23	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
24	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
28	EF66030037R Available to backorder	Belt	£22.52 £18.77
29	EF66071084R Available to backorder	Pulley	£16.27 £13.56
30	EF3022020R Available to backorder	Plug	£1.19 £0.99
31	EF66070652R Available to backorder	Spring	£4.44 £3.70
32	EF66070435R Available to backorder	Bushing	£3.24 £2.70
33	EF3024012R In stock	Snap Ring	£1.28 £1.07
34	EF3916008R Available to backorder	Washer	£1.82 £1.52
35	EF66110100 Available to backorder	Rod	£19.02 £15.85
36	EF66070436R Available to backorder	Right Sprocket	£17.22 £14.35
37	EF66070013C Available to backorder	Rear Axle	£83.04 £69.20
38	EF3806076R Available to backorder	Screw	£2.52 £2.10
40	EF011200035R In stock	Screw	£0.98 £0.82
41	EF66070018R Available to backorder	Lever	£18.38 £15.32
42	EF66070060R Available to backorder	Wheel Cover	£8.74 £7.28
43	EF66030044 Available to backorder	Spacer	£0.90 £0.75
44	EF66070036R Available to backorder	Spring	£5.44 £4.53
45	EF66071063R Available to backorder	Complete Wheel	£33.04 £27.53
46	EF8202311R Available to backorder	Ring	£1.38 £1.15
47	EF66070885R Available to backorder	Wheel Cover	£5.48 £4.57
48	EF66060010R Available to backorder	Roller	£0.98 £0.82
49	EF66060316AR In stock	Brake Lever	£27.07 £22.56
50	EF3906150R Available to backorder	Screw	£5.44 £4.53
51	EF66060030R Available to backorder	Bushing	£3.68 £3.07
52	EF66030276R Available to backorder	Engine Break Cable	£18.08 £15.07
53	EF66060384R Available to backorder	Washer	£3.68 £3.07
54	EF66030036 In stock	Hub With Sheet	£20.03 £16.69
55	EF66110594R In stock	Mulching Blade	£27.82 £23.18
56	EF66070905 Available to backorder	Grassbag Kit	£113.40 £94.50
57	EF66030039 Available to backorder	Plate	£2.76 £2.30
58	EF3960031R Available to backorder	Screw	£0.98 £0.82
59	EF3801022R Available to backorder	Screw	£0.56 £0.47
60	EF66110781 Available to backorder	Support	£8.74 £7.28
61	EF3045035R Available to backorder	Retainer Washer	£2.76 £2.30
62	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
63	EF66070228AR Available to backorder	Support	£2.16 £1.80
64	EF66071065R Available to backorder	Spring	£7.22 £6.02
65	EF66070133R Available to backorder	Support	£8.74 £7.28
67	EF3064037 Available to backorder	Washer	£0.90 £0.75
68	EF66060425R Available to backorder	Handle Kit	£97.32 £81.10
69	EF66060381BR Available to backorder	Pin	£2.76 £2.30
70	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
71	EF66110828R Available to backorder	Mulching Cap	£41.66 £34.72
72	EF66070521R Available to backorder	Shutter	£8.74 £7.28
74	EF3906053 Available to backorder	Screw	£0.90 £0.75
75	EF3916006R Available to backorder	Washer	£0.90 £0.75
76	EF3914006R Available to backorder	Nut	£0.90 £0.75
77	EF66070744 Available to backorder	Support Set	£10.76 £8.97
81	EF3032018R Available to backorder	Rivet	£0.56 £0.47
