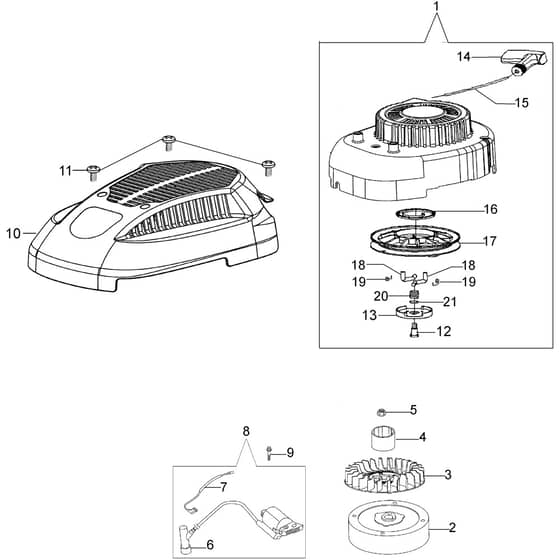

LR 48 TK ALLROAD PLUS 4 (K650) - 2018 - Efco Rotary Mower Starter assy and flywheel Diagram

Part No. lr_48_tk_allroad_plus_4_k650_2018_starter_assy_and_flywheel-grou
LR 48 TK ALLROAD PLUS 4 (K650) - 2018 - Efco Rotary Mower Starter assy and flywheel Diagram
LR 48 TK ALLROAD PLUS 4 (K650) - 2018 - Efco Rotary Mower Starter assy and flywheel Diagram

Description

Efco LR 48 TK ALLROAD PLUS 4 (K650) Parts Diagram

Model Year - 2018

Ref. Img. Part No. Details
  1 Starter Assy
Starter Assy
EFL66150233
Available to backorder
Starter Assy
£43.80 £36.50

  2 Flywheel
Flywheel
EFL66150425
Available to backorder
Flywheel
£41.40 £34.50

  4 Pulley
Pulley
EFL66150147
Available to backorder
Pulley
£16.68 £13.90

  5 Nut
Nut
EFL66150376
Available to backorder
Nut
£1.92 £1.60

  6 Spark Plug Cap
Spark Plug Cap
EFL66150427
Available to backorder
Spark Plug Cap
£6.96 £5.80

  8 Ignition Coil
Ignition Coil
EFL66150429
Available to backorder
Ignition Coil
£63.96 £53.30

  10 Cover 41548
Cover 41548
EFL66150234
Available to backorder
Cover 41548
£22.08 £18.40

  10 Cover 41579
Cover 41579
EFL66150713
Available to backorder
Cover 41579
£23.88 £19.90

  11 Screw
Screw
EFL66150240
Available to backorder
Screw
£1.08 £0.90

  12 Screw
Screw
EFL66150259
Available to backorder
Screw
£4.08 £3.40

  13 Slide
Slide
EFL66150260
Available to backorder
Slide
£5.64 £4.70

  14 Starter Handle
Starter Handle
EFL66150270
Available to backorder
Starter Handle
£4.68 £3.90

  15 Starter Rope
Starter Rope
EFL66150269
Available to backorder
Starter Rope
£4.56 £3.80

  16 Starter Spring
Starter Spring
EFL66150266
Available to backorder
Starter Spring
£9.00 £7.50

  17 Pulley
Pulley
EFL66150265
Available to backorder
Pulley
£6.84 £5.70

  18 Pawl
Pawl
EFL66150263
Available to backorder
Pawl
£2.00 £1.67

  19 Spring
Spring
EFL66150264
Available to backorder
Spring
£3.84 £3.20

  20 Spring
Spring
EFL66150262
Available to backorder
Spring
£2.00 £1.67

  21 Washer
Washer
EFL66150261
Available to backorder
Washer
£3.01 £2.51


Description

Efco LR 48 TK ALLROAD PLUS 4 (K650) Parts Diagram

Model Year - 2018
