LR 48 TK ALLROAD (K650) - - Efco Rotary Mower Air filter and muffler Diagram

Description

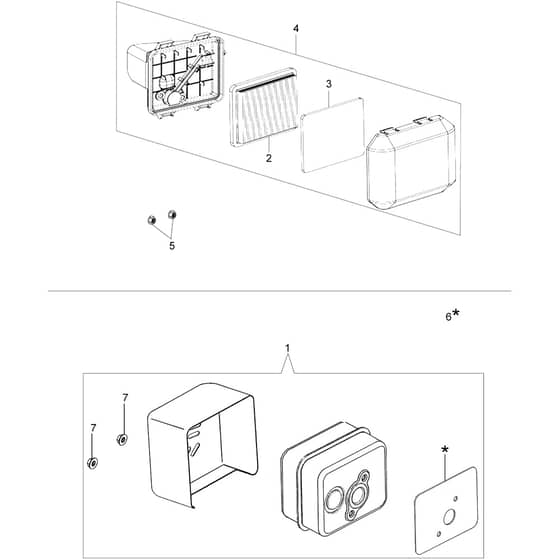

Efco LR 48 TK ALLROAD (K650) Parts Diagram

Model Year -

	Part No.	Details
1	EFL66150719 Available to backorder	Muffler Assy 41579	£34.68 £28.90
1	EFL66150443 Available to backorder	Muffler Assy 41548	£32.40 £27.00
2	EFL66150445 Available to backorder	Air Filter 41548	£10.68 £8.90
2	EFL66150715 In stock	Air Filter 41579	£15.82 £13.18
3	EFL66150716 Available to backorder	Sponge 41579	£3.60 £3.00
3	EFL66150255 Available to backorder	Sponge 41548	£5.64 £4.70
4	EFL66150250 Available to backorder	Air Filter Kit 41548	£18.96 £15.80
4	EFL66150717 Available to backorder	Air Filter Kit 41579	£14.28 £11.90
5	EF004400959R Available to backorder	Nut	£2.24 £1.87
6	EFL66150395 Available to backorder	Gasket Set 41548	£29.40 £24.50
6	EFL66150718 Available to backorder	Gasket Set 41579	£36.48 £30.40
7	EFL66150185 Available to backorder	Nut	£0.53 £0.44
