LR 48 TBXE PLUS 4 - - Efco Rotary Mower Complete illustrated parts list Diagram

Description

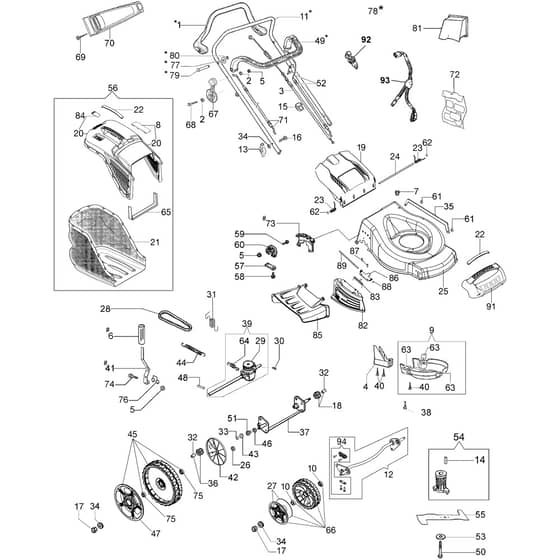

Efco LR 48 TBXE PLUS 4 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£22.13 £18.44
2	EF3918009R Available to backorder	Washer	£0.90 £0.75
3	EF66060058CR Available to backorder	Traction Cable	£30.78 £25.65
4	EF66110845 Available to backorder	Guard	£9.10 £7.58
5	EF3914006R Available to backorder	Nut	£0.90 £0.75
6	EF66070954R Available to backorder	Handle	£9.60 £8.00
7	EF66030038 Available to backorder	Grommet	£0.90 £0.75
8	EF66070466R Available to backorder	Lock	£9.22 £7.68
9	EF66070233A Available to backorder	Guard Kit	£15.28 £12.73
11	EF66060421BR Available to backorder	Handlebar	£59.46 £49.55
12	EF66070749 Available to backorder	Axle Kit	£55.38 £46.15
13	EF66070317R Available to backorder	Tightening Handle	£9.66 £8.05
15	EF66060231 Available to backorder	Band	£2.88 £2.40
16	EF3910015R Available to backorder	Screw	£1.84 £1.53
18	EF66070437R Available to backorder	Left Sprocket SN 6275173850	£16.88 £14.07
19	EF66110753R Available to backorder	Shutter	£23.48 £19.57
20	EF66072047R Available to backorder	Frame	£60.56 £50.47
21	EF66070455R Available to backorder	Grassbag	£71.80 £59.83
22	EF66070522R Available to backorder	Cover	£9.26 £7.72
23	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
24	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
25	EF66110762A Available to backorder	Deck	£208.32 £173.60
27	EF66070573R Available to backorder	Wheel Cover 09.14	£8.74 £7.28
27	EF66070727R Available to backorder	Wheel Cover 10.14	£5.22 £4.35
28	EF66030037R Available to backorder	Belt	£22.52 £18.77
29	EF66071084R Available to backorder	Pulley	£16.27 £13.56
30	EF3022020R Available to backorder	Plug	£1.19 £0.99
32	EF66070435R Available to backorder	Bushing SN 6275173850	£3.24 £2.70
33	EF3024012R In stock	Snap Ring	£1.28 £1.07
34	EF3916008R Available to backorder	Washer	£1.82 £1.52
35	EF66110100 Available to backorder	Rod	£19.02 £15.85
36	EF66070436R Available to backorder	Right Sprocket SN 6275173850	£17.22 £14.35
37	EF66070287AR Available to backorder	Rear Axle	£88.92 £74.10
38	EF3806076R Available to backorder	Screw	£2.52 £2.10
39	EF66070017ER Available to backorder	Transmission	£153.84 £128.20
40	EF011200035R In stock	Screw	£0.98 £0.82
41	EF66070286CR Available to backorder	Lever	£18.50 £15.42
42	EF66070469R Available to backorder	Wheel Cover 09.14	£10.20 £8.50
42	EF66070756 Available to backorder	Wheel Cover 10.14	£11.10 £9.25
43	EF66030044 Available to backorder	Spacer	£0.90 £0.75
44	EF66070036R Available to backorder	Spring	£5.44 £4.53
45	EF66070729 Available to backorder	Wheel Kit 10.14	£51.88 £43.23
45	EF66060526 Available to backorder	Wheel Kit 09.14	£75.58 £62.98
46	EF8202311R Available to backorder	Ring	£1.38 £1.15
47	EF66070574R Available to backorder	Wheel Cover 09.14	£8.94 £7.45
48	EF66060010R Available to backorder	Roller	£0.98 £0.82
49	EF66060316AR In stock	Brake Lever	£27.07 £22.56
50	EF3906150R Available to backorder	Screw	£5.44 £4.53
51	EF66060030R Available to backorder	Bushing	£3.68 £3.07
52	EF66060108R Available to backorder	Engine Break Cable	£10.98 £9.15
53	EF66060384R Available to backorder	Washer	£3.68 £3.07
54	EF66030036 In stock	Hub With Sheet	£20.03 £16.69
55	EF66110594R In stock	Mulching Blade	£27.82 £23.18
56	EF66070905 Available to backorder	Grassbag Kit	£113.40 £94.50
57	EF66030039 Available to backorder	Plate	£2.76 £2.30
58	EF3960031R Available to backorder	Screw	£0.98 £0.82
59	EF3801022R Available to backorder	Screw	£0.56 £0.47
60	EF66110781 Available to backorder	Support	£8.74 £7.28
61	EF3045035R Available to backorder	Retainer Washer	£2.76 £2.30
63	EF66070228AR Available to backorder	Support	£2.16 £1.80
64	EF66070980R Available to backorder	Spring	£6.08 £5.07
65	EF66070133R Available to backorder	Support	£8.74 £7.28

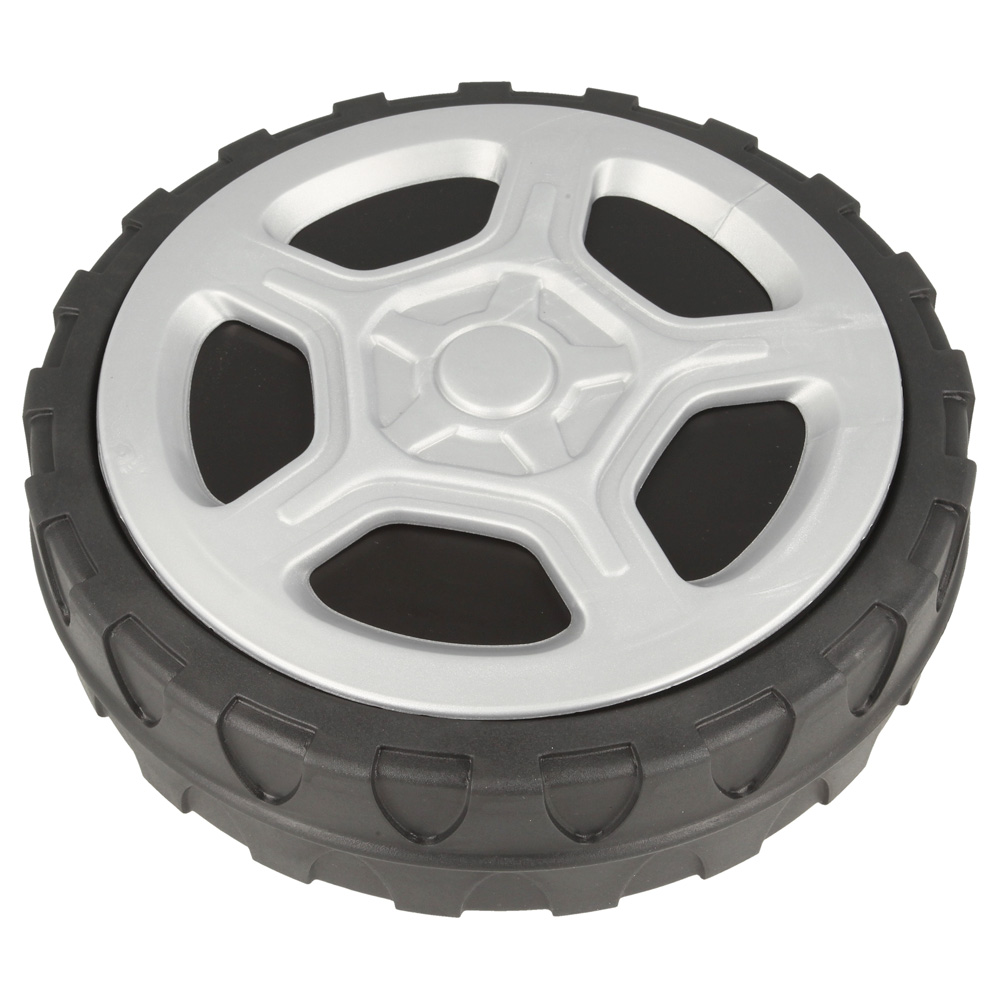

66	EF66070730 Available to backorder	Wheel Kit 09.14	£27.30 £22.75
67	EF66070341AR In stock	Throttle Lever	£9.54 £7.95
68	EF3910019 Available to backorder	Screw	£0.90 £0.75
69	EF3960072 Available to backorder	Screw	£0.90 £0.75
71	EF66070323R Available to backorder	Throttle Cable B&S 775	£10.62 £8.85
71	EF66070171R Available to backorder	Throttle Cable B&S 675 IS	£11.04 £9.20
72	EF66070629A Available to backorder	Labels Kit	£7.88 £6.57
73	EF66070291R Available to backorder	Sector	£14.70 £12.25
74	EF3906164R Available to backorder	Screw	£2.56 £2.13
75	EF66030081R Available to backorder	Bearing 09.14	£5.44 £4.53
75	EF3035023R Available to backorder	Bearing 10.14	£15.84 £13.20
76	EF8203374R Available to backorder	Spring	£10.08 £8.40
77	EF3064037 Available to backorder	Washer	£0.90 £0.75
78	EF66060425R Available to backorder	Handle Kit	£97.32 £81.10
79	EF66060381BR Available to backorder	Pin	£2.76 £2.30
80	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
81	EF66110828R Available to backorder	Mulching Cap	£41.66 £34.72
82	EF66110700AR Available to backorder	Shutter	£23.98 £19.98
83	EF66070493R Available to backorder	Spring	£12.16 £10.13
84	EF66070521R Available to backorder	Shutter	£8.74 £7.28
85	EF66110513R Available to backorder	Deflector	£37.52 £31.27
86	EF66070804R Available to backorder	Support	£11.84 £9.87
87	EF3032018R Available to backorder	Rivet	£0.56 £0.47
88	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
89	EF66071060R Available to backorder	Pin	£4.10 £3.42
90	EF66070439A Available to backorder	Lever Group	£34.28 £28.57
91	EF66070488R Available to backorder	Guard	£27.10 £22.58
92	EF3040020R Available to backorder	Switch	£40.70 £33.92
93	EF66110586AR Available to backorder	Wire	£58.80 £49.00
94	EF66070744 Available to backorder	Support Set	£10.76 £8.97
