LR 48 PK (K500) - - Efco Rotary Mower Starter assy and flywheel Diagram

Description

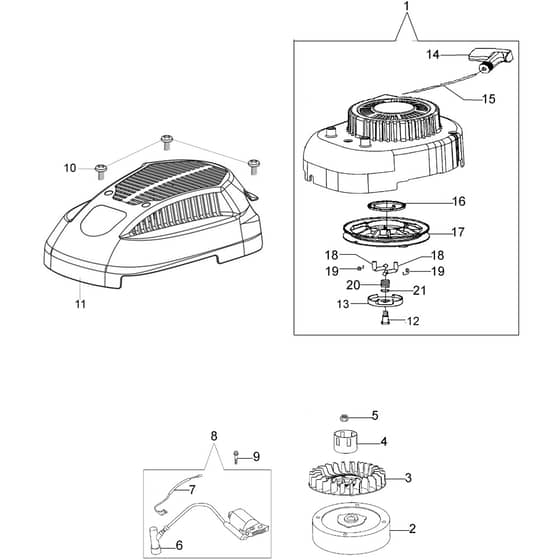

Efco LR 48 PK (K500) Parts Diagram

Model Year -

	Part No.	Details
1	EFL66150233 Available to backorder	Starter Assy	£43.80 £36.50
2	EFL66150425 Available to backorder	Flywheel	£41.40 £34.50
4	EFL66150147 Available to backorder	Pulley	£16.68 £13.90
5	EFL66150376 Available to backorder	Nut	£1.92 £1.60
6	EFL66150427 Available to backorder	Spark Plug Cap	£6.96 £5.80
8	EFL66150429 Available to backorder	Ignition Coil	£63.96 £53.30
10	EFL66150240 Available to backorder	Screw	£1.08 £0.90
11	EFL66150234 Available to backorder	Cover 41548	£22.08 £18.40
11	EFL66150713 Available to backorder	Cover 41579	£23.88 £19.90
12	EFL66150259 Available to backorder	Screw	£4.08 £3.40
13	EFL66150260 Available to backorder	Slide	£5.64 £4.70
14	EFL66150270 Available to backorder	Starter Handle	£4.68 £3.90
15	EFL66150269 Available to backorder	Starter Rope	£4.56 £3.80
16	EFL66150266 Available to backorder	Starter Spring	£9.00 £7.50
17	EFL66150265 Available to backorder	Pulley	£6.84 £5.70
18	EFL66150263 Available to backorder	Pawl	£2.00 £1.67
19	EFL66150264 Available to backorder	Spring	£3.84 £3.20
20	EFL66150262 Available to backorder	Spring	£2.00 £1.67
21	EFL66150261 Available to backorder	Washer	£3.01 £2.51
