LR 48 PBQ EURO 5 - - Efco Rotary Mower Complete illustrated parts list Diagram

Description

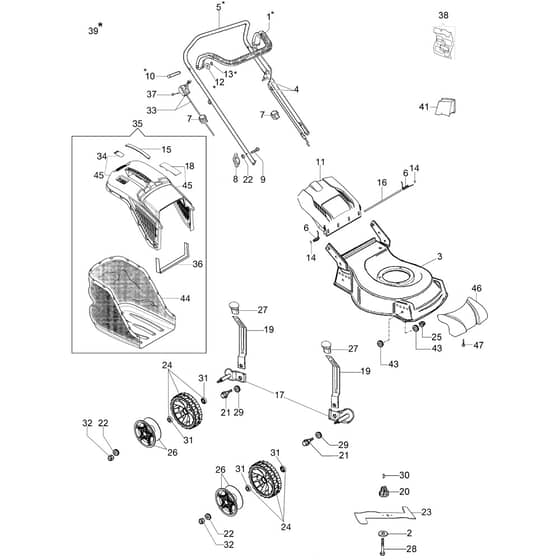

Efco LR 48 PBQ EURO 5 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060316AR In stock	Brake Lever	£27.07 £22.56
2	EF66060384R Available to backorder	Washer	£3.68 £3.07
3	EF66110764A Available to backorder	Deck Grigio. Grey	£212.76 £177.30
4	EF66060108R Available to backorder	Engine Break Cable	£10.98 £9.15
5	EF66060421BR Available to backorder	Handlebar	£59.46 £49.55
6	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
7	EF66060231 Available to backorder	Band	£2.88 £2.40
8	EF66070944R Available to backorder	Tightening Handle	£7.02 £5.85
9	EF3910015R Available to backorder	Screw	£1.84 £1.53
11	EF66110753R Available to backorder	Shutter Rosso. Red	£23.48 £19.57
12	EF3064037 Available to backorder	Washer	£0.90 £0.75
13	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
14	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
15	EF66070522R Available to backorder	Cover	£9.26 £7.72
16	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
17	EF66070301A Available to backorder	Support Set	£22.94 £19.12
18	EF66070466R Available to backorder	Lock	£9.22 £7.68
19	EF66070031R Available to backorder	Lever	£11.36 £9.47
20	EF66030003AR Available to backorder	Blade Hub	£12.96 £10.80
21	EF66070030A Available to backorder	Pin	£1.84 £1.53
23	EF66110594R In stock	Mulching Blade	£27.82 £23.18
24	EF66070724R Available to backorder	Complete Wheel	£21.22 £17.68
27	EF66110684 Available to backorder	Handle	£7.50 £6.25
28	EF3906150R Available to backorder	Screw	£5.44 £4.53
30	EF8202126R Available to backorder	Key	£1.84 £1.53
31	EF66030081R Available to backorder	Bearing	£5.44 £4.53
32	EF3914010 Available to backorder	Nut	£0.90 £0.75
33	EF66060077AR Available to backorder	Throttle Cable	£16.36 £13.63
34	EF66070521R Available to backorder	Shutter	£8.74 £7.28
35	EF66070905 Available to backorder	Grassbag Kit	£113.40 £94.50
36	EF66070133R Available to backorder	Support	£8.74 £7.28
37	EF3910019 Available to backorder	Screw	£0.90 £0.75
39	EF66060425R Available to backorder	Handle Kit	£97.32 £81.10
41	EF66110828R Available to backorder	Mulching Cap	£41.66 £34.72
43	EF66030012R Available to backorder	Washer	£1.84 £1.53
44	EF66070876R Available to backorder	Grassbag	£84.02 £70.02
45	EF66072047R Available to backorder	Frame	£60.56 £50.47
47	EF3960137R Available to backorder	Screw	£2.82 £2.35
