LR 48 - 2018 - Efco Rotary Mower Complete illustrated parts list Diagram

Description

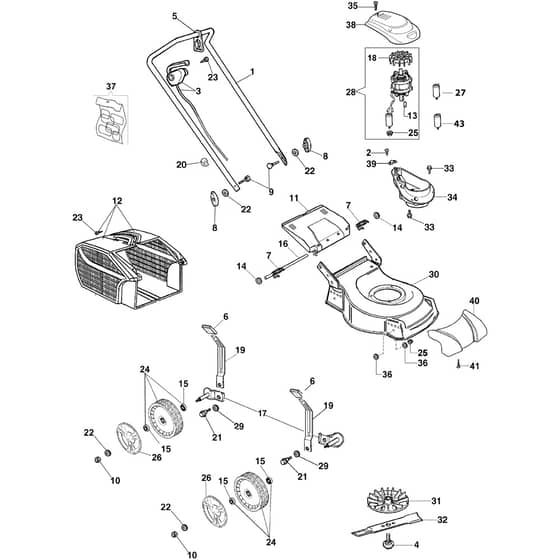

Efco LR 48 Parts Diagram

Model Year - 2018

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66130085R Available to backorder	Handlebar	£61.30 £51.08
2	EF3960017AR Available to backorder	Screw	£0.90 £0.75
3	EF66050187R Available to backorder	Switch	£37.28 £31.07
4	EF66020010BR Available to backorder	Screw	£2.76 £2.30
6	EF66070971R Available to backorder	Handle	£2.22 £1.85
7	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
8	EF66070944R Available to backorder	Tightening Handle	£7.02 £5.85
9	EF3910015R Available to backorder	Screw	£1.84 £1.53
10	EF3914010 Available to backorder	Nut	£0.90 £0.75
12	EF66112001R Available to backorder	Complete Grassbag	£52.70 £43.92
13	EF66020024R Available to backorder	Key	£2.76 £2.30
14	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
15	EF66030081R Available to backorder	Bearing	£5.44 £4.53
16	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
17	EF66070301A Available to backorder	Support Set	£22.94 £19.12
18	EF66120022R Available to backorder	Fan 44377	£12.62 £10.52
19	EF66070031R Available to backorder	Lever	£11.36 £9.47
20	EF66060231 Available to backorder	Band	£2.88 £2.40
21	EF66070030A Available to backorder	Pin	£1.84 £1.53
22	EF3916008R Available to backorder	Washer	£1.82 £1.52
23	EF3960013R Available to backorder	Screw	£2.76 £2.30
24	EF66070724R Available to backorder	Complete Wheel	£21.22 £17.68
27	EF66120051R Available to backorder	Condenser 16MF 450V 5	£20.42 £17.02
28	EF66130092R Available to backorder	Electric Motor	£337.08 £280.90
30	EF66110764A Available to backorder	Deck	£212.76 £177.30
31	EF66020025AR Available to backorder	Fan	£24.06 £20.05
32	EF66130045R Available to backorder	Blade	£20.22 £16.85
34	EF66020005AR Available to backorder	Engine Support	£43.10 £35.92
35	EF3960016 Available to backorder	Screw	£0.90 £0.75
36	EF66030012R Available to backorder	Washer	£1.84 £1.53
38	EF66120011 Available to backorder	Guard	£36.38 £30.32
39	EF012000033 Available to backorder	Plate	£0.90 £0.75
41	EF3960137R Available to backorder	Screw	£2.82 £2.35
