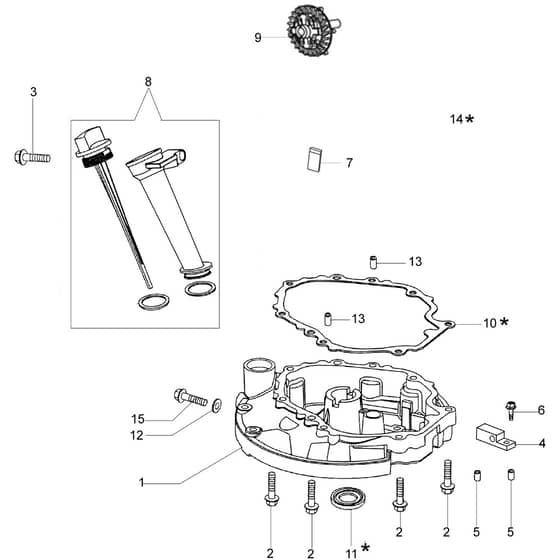

LR 44 TK COMFORT PLUS (K500) - - Efco Rotary Mower Crankase cover Diagram

Name: LR 44 TK COMFORT PLUS (K500) - - Efco Rotary Mower Crankase cover Diagram
SKU: lr_44_tk_comfort_plus_k500_crankase_cover-group
Price: 0.32 GBP
Availability: InStock

Part No. lr_44_tk_comfort_plus_k500_crankase_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LR 44 TK COMFORT PLUS (K500) - - Efco Rotary Mower Crankase cover Diagram

Description

Efco LR 44 TK COMFORT PLUS (K500) Parts Diagram

Model Year -

	Part No.	Details
1	EFL66150230 Available to backorder	Cover	£59.52 £49.60
2	EFL66150452 Available to backorder	Screw	£2.42 £2.02
3	EFL66150453 Available to backorder	Screw	£0.60 £0.50
5	EFL66150455 Available to backorder	Bushing	£0.38 £0.32
6	EFL66150456 Available to backorder	Screw	£0.58 £0.48
7	EFL66150232 Available to backorder	Packing. Breather Chamber	£2.00 £1.67
8	EFL66150458 Available to backorder	Oil Cap Assy	£5.40 £4.50
10	EFL66150463 Available to backorder	Gasket 39722	£9.00 £7.50
10	EFL66150695 Available to backorder	Gasket 39692	£7.20 £6.00
11	EFL66150462 Available to backorder	Oil Seal	£9.00 £7.50
13	EFL66150357 Available to backorder	Plug	£1.44 £1.20
14	EFL66150227 Available to backorder	Gasket Set 41548	£42.00 £35.00
