LR 44 PK (K500) - - Efco Rotary Mower Illustrated parts list Diagram

Description

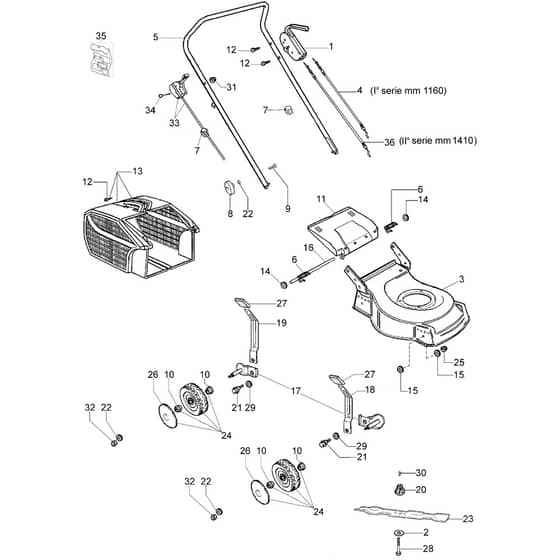

Efco LR 44 PK (K500) Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66132014 Available to backorder	Complete Lever	£10.72 £8.93
2	EF66060384R Available to backorder	Washer	£3.68 £3.07
3	EF66100232AR Available to backorder	Deck	£178.94 £149.12
5	EF66060104AR Available to backorder	Handlebar	£53.44 £44.53
6	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
7	EF66060231 Available to backorder	Band	£2.88 £2.40
8	EF4119013AR Available to backorder	Tightening Handle	£3.68 £3.07
9	EF3910015R Available to backorder	Screw	£1.84 £1.53
10	EF66030081R Available to backorder	Bearing	£5.44 £4.53
11	EF66110014R Available to backorder	Shutter	£24.88 £20.73
12	EF3960013R Available to backorder	Screw	£2.76 £2.30
13	EF66112001R Available to backorder	Complete Grassbag	£52.70 £43.92
14	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
16	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
17	EF66070301A Available to backorder	Support Set	£22.94 £19.12
18	EF66070248R Available to backorder	Lever	£8.74 £7.28
19	EF66070031R Available to backorder	Lever	£11.36 £9.47
20	EF66030003AR Available to backorder	Blade Hub	£12.96 £10.80
21	EF66070030A Available to backorder	Pin	£1.84 £1.53
22	EF66030012R Available to backorder	Washer	£1.84 £1.53
23	EF66100221R Available to backorder	Blade Alettata. Winged	£28.10 £23.42
24	EF66110346 Available to backorder	Complete Wheel	£14.94 £12.45
26	EF66110278R Available to backorder	Wheel Cover	£5.44 £4.53
27	EF66070021R Available to backorder	Handle	£2.16 £1.80
28	EF3906150R Available to backorder	Screw	£5.44 £4.53
29	EF3027001R Available to backorder	Washer	£0.90 £0.75
30	EF8202126R Available to backorder	Key	£1.84 £1.53
31	EF3914006R Available to backorder	Nut	£0.90 £0.75
32	EF3914010 Available to backorder	Nut	£0.90 £0.75
34	EF3910020R Available to backorder	Screw	£2.76 £2.30
35	EF66070381 Available to backorder	Labels Kit	£12.78 £10.65
36	EF66100183R Available to backorder	Brake Wire 1410mm	£15.92 £13.27
