LOTTUS 46SG - 2013 - 298506048/ALX - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Name: LOTTUS 46SG - 2013 - 298506048/ALX - Castel Garden Rotary Mower Wheels and Hub Caps Diagram
SKU: lottus_46sg_298506048_alx_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. lottus_46sg_298506048_alx_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

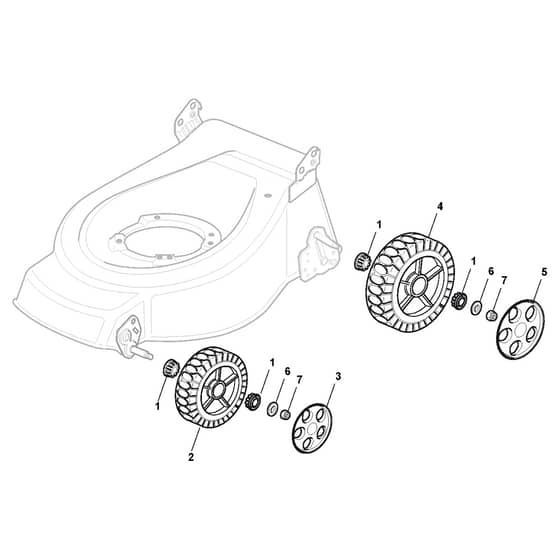

LOTTUS 46SG - 2013 - 298506048/ALX - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

Castel Garden LOTTUS 46SG Parts Diagram

Product Name - LOTTUS 46SG

Model Year - 2013

Model Type - R 484 TR

Art.N - 298506048/ALX

Engine Model -

	Part No.	Details
1	MO122034508/0 In stock	Bushing	£1.55 £1.29
2	MO381007336/0 Available to backorder	Wheel. Knobbly Ø 170	£17.60 £14.67
3	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
4	MO381007337/0 In stock	Wheel. Knobbly Ø 210	£16.61 £13.84
5	MO322110636/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
6	MO112523060/0 In stock	Washer	£1.55 £1.29
7	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
