LOTTUS 46SG - 2013 - 298506048/ALX - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Name: LOTTUS 46SG - 2013 - 298506048/ALX - Castel Garden Rotary Mower Deck and Height Adjusting Diagram
SKU: lottus_46sg_298506048_alx_deck_and_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LOTTUS 46SG - 2013 - 298506048/ALX - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

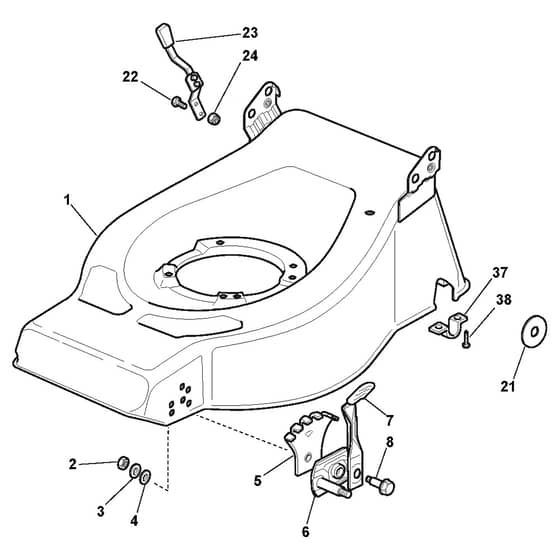

Castel Garden LOTTUS 46SG Parts Diagram

Product Name - LOTTUS 46SG

Model Year - 2013

Model Type - R 484 TR

Art.N - 298506048/ALX

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002429/1 Available to backorder	Red Deck From 01-9-2006	£197.33 £164.44
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.26 £1.88
6	MO381005082/0 In stock	Wheel Support	£17.18 £14.32
7	MO481003285/1 In stock	Lever	£19.54 £16.28
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
21	MO321660100/0 Available to backorder	Washer	£1.97 £1.64
22	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
23	MO381003279/2 Available to backorder	Adjustment Lever	£32.38 £26.98
24	MO112154330/0 In stock	Nut	£1.55 £1.29
37	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
38	MO322545152/0 In stock	Axle Bracket	£1.55 £1.29
