Description

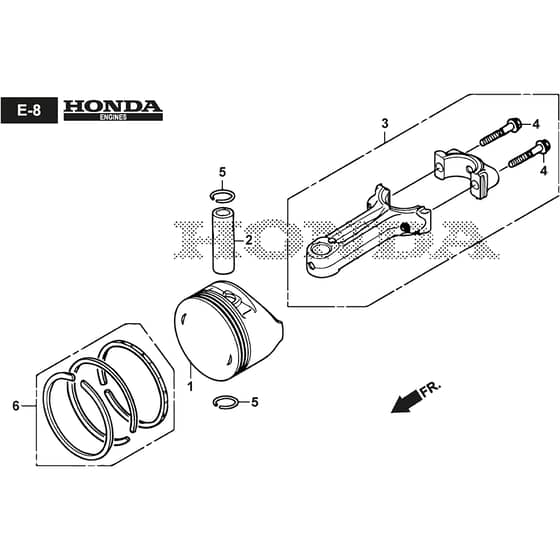

Atco LINER 19SH V Parts Diagram

Product Name - LINER 19SH V

Model Year - 2021-2024

Model Type - MP2 504 SV-R

Art.N - 294519037/AT1

Engine Model - GCVx170 OHV Autochoke

Ref. Img. Part No. Details
  1 Piston HP13101-Z9L-000
Piston
Out of stock
£40.26 £33.55

  2 Pin. Piston HP13111-ZE0-000
Pin. Piston
Out of stock
£12.54 £10.45

  3 Rod Assy. Connecting HP13200-Z9L-000
Rod Assy. Connecting
Out of stock
£56.62 £47.18

  4 Bolt. Connecting Rod HP90001-Z1L-000
Bolt. Connecting Rod
Out of stock
£4.08 £3.40

  5 Clip. Piston Pin. 13mm HP90551-ZE0-000
Clip. Piston Pin. 13mm
Out of stock
£2.21 £1.84

  6 Piston Ring Set MO118551766/0
Piston Ring Set
Out of stock
£36.29 £30.24


Description

Atco LINER 19SH V Parts Diagram

Product Name - LINER 19SH V

Model Year - 2021-2024

Model Type - MP2 504 SV-R

Art.N - 294519037/AT1

Engine Model - GCVx170 OHV Autochoke
